Quick Details
-
Dimension(L*W*H):
-
3300*1100*1365mm
-
Power (kW):
-
5.5kw
-
Weight (KG):
-
600 kg
-
Product name:
-
Wood saw machines
-
Model:
-
GD-MJ6128
-
Sliding table size:
-
2800*330mm
-
Keywords:
-
Sliding table saw /panel saw
-
Max cutting length:
-
2800mm
-
Maximum cutting width:
-
1250mm
-
Cutting thickness:
-
80mm
-
Main saw diameter:
-
300mm
-
Spindle diameter:
-
30mm
-
Spindle motor power:
-
5.5kw+1.1kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Grandio CNC
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
3300*1100*1365mm
-
Power (kW):
-
5.5kw
-
Weight (KG):
-
600 kg
-
Product name:
-
Wood saw machines
-
Model:
-
GD-MJ6128
-
Sliding table size:
-
2800*330mm
-
Keywords:
-
Sliding table saw /panel saw
-
Max cutting length:
-
2800mm
-
Maximum cutting width:
-
1250mm
-
Cutting thickness:
-
80mm
-
Main saw diameter:
-
300mm
-
Spindle diameter:
-
30mm
-
Spindle motor power:
-
5.5kw+1.1kw
Product Description

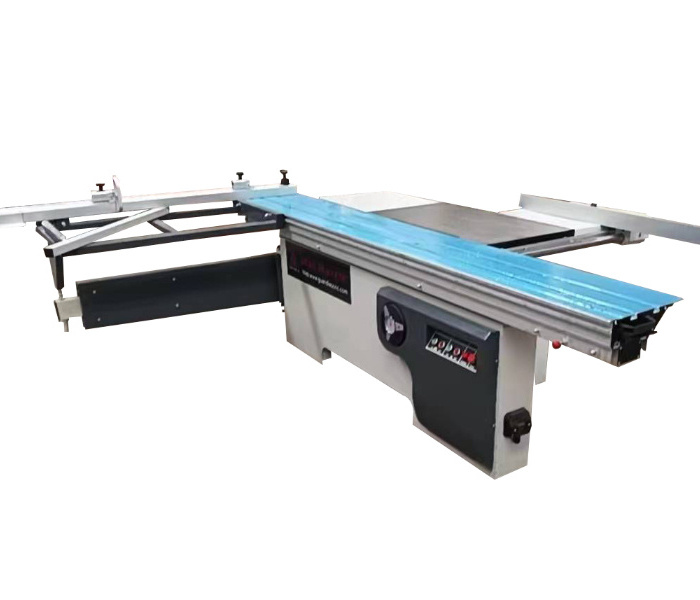

Woodworking Machine 45 degree 90 degree Woodworking Sliding Table Saw Wood Panel Saw Machines Price
Sliding Table Saw Machine
Features
1.
The operation is light and labor-saving, the driving stroke is large, and the cutting width is large;
2.
Equipped with stable and lightweight towing frame, running smoothly;
3.
The setting of the mobile table and the main saw blade can be adjusted by 45 degrees
, which expands the scope of use of the saw machine. Mouth processing.
Table saw, sliding table saw, panel saw, panel table saw, table saw for woodworking, table saw machine, wood saw machines, panel saw, saw machines, table saw for woodworking, panel saw machine
Product Parameters
Parameters of woodworking sliding table saw
Mode
|
2.8m 45° MJ45
|
2.8m 90° MJ90
|
Dimension of sliding table
|
2800X320mm
|
2800*320mm
|
Length of cut between saw blade and rip fence
|
2750mm
|
2750mm
|
Width of cut between saw blade and rip fence
|
1250mm
|
1250mm
|
Saw blade diameter
|
300mm
|
300mm
|
Height of cut
|
80mm
|
80mm
|
Speed of main saw spindle
|
4000/6000rpm
|
4000/6000rpm
|
Main spindle diameter
|
30mm
|
30mm
|
Tilting saw blade
|
0-45°
|
90°
|
Main motor
|
4.0/5.5kw
|
4.0/5.5kw
|
Scoring saw blade diameter
|
120mm
|
120mm
|
Speed of scoring saw blade
|
8000rpm
|
8000rpm
|
Scoring saw diameter
|
20mm
|
20mm
|
Scoring motor
|
0.75/1.1kw
|
0.75/1.1kw
|
Overall dimension
|
2850*3050*900mm
|
2850*3050*900mm
|
Detailed Images
Details of woodworking sliding table saw
Sample
Company Introduction
Jinan Grandio CNC Equipment Co., Ltd
is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc. Products applied to the panel furniture, European furniture,solid wood furniture, advertising, stone, building decoration, handicrafts, mold making, staircases column, PCB printing,automotive industry, packaging industry, shipbuilding, wood manufacturing, watches and clocks, accessories, seals and other industries.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design,installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world.
We offer our customers best solutions, including product design,installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
Our Services
Our Services
1.2years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
Our certifications:
Packing&Shipping
The wooden box is sealed and packaged for safe transportation and effectively prevent bumps.
Because the machinery is relatively heavy, shipping is generally chosen.
Shipping and payment methods can be negotiated with customer service.
FAQ
Q1.Are you a trade company or a manufacturer ?
We are manufacturer in Jinan city, Shandong province of China.
We can offer competitive price of machine with high quality.
Q2:Can I choose the Plug?
Yes,we have EU,USA,AU,UK plug for your country use
Q3:Is it OK to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design firstly for the mass production.
Q4.I do not know Chinese, will the operation panel in English or French or other?
We are manufacturer in Jinan city, Shandong province of China.
We can offer competitive price of machine with high quality.
Q2:Can I choose the Plug?
Yes,we have EU,USA,AU,UK plug for your country use
Q3:Is it OK to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design firstly for the mass production.
Q4.I do not know Chinese, will the operation panel in English or French or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other, we also can customize to you
Q5:It is my first time to purchase goods from china ,how do i do?
Do not worry, Grandiao has 10 years export experience to all over the world, also has professional sales team, We have exported to
Russia, Pakistan, Algeria, Vietnam, Peru and many other countries.
Q6:How to pack the machine?
We use wooden box to package the machine to protect them to be safe.
Q5:It is my first time to purchase goods from china ,how do i do?
Do not worry, Grandiao has 10 years export experience to all over the world, also has professional sales team, We have exported to
Russia, Pakistan, Algeria, Vietnam, Peru and many other countries.
Q6:How to pack the machine?
We use wooden box to package the machine to protect them to be safe.
