Quick Details
-
Blade Length (mm):
-
2000 mm
-
Backgauge Travel (mm):
-
1 - 500 mm
-
Throat Depth (mm):
-
80 mm
-
Brand Name:
-
AOXUANZG
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
1250 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V/Opitional
-
Dimension(L*W*H):
-
2600x1050x1150mm
-
Year:
-
2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Electric shearing machine
-
Cutting thickness:
-
3mm
-
Cutting width:
-
2000mm
-
Shearing plate angle:
-
2°14'
-
No. of strokes:
-
33mm
-
Backage range:
-
500mm
-
Motor Power:
-
5.5kw
-
Cutting mode:
-
Electric
-
Control system:
-
MD11 or opitional
Quick Details
-
Max. Cutting Width (mm):
-
3 mm
-
Max. Cutting Thickness (mm):
-
2000 mm
-
Shearing Angle:
-
2°14
-
Blade Length (mm):
-
2000 mm
-
Backgauge Travel (mm):
-
1 - 500 mm
-
Throat Depth (mm):
-
80 mm
-
Brand Name:
-
AOXUANZG
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
1250 KG
-
Place of Origin:
-
Anhui, China
-
Voltage:
-
220V/380V/Opitional
-
Dimension(L*W*H):
-
2600x1050x1150mm
-
Year:
-
2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Electric shearing machine
-
Cutting thickness:
-
3mm
-
Cutting width:
-
2000mm
-
Shearing plate angle:
-
2°14'
-
No. of strokes:
-
33mm
-
Backage range:
-
500mm
-
Motor Power:
-
5.5kw
-
Cutting mode:
-
Electric
-
Control system:
-
MD11 or opitional

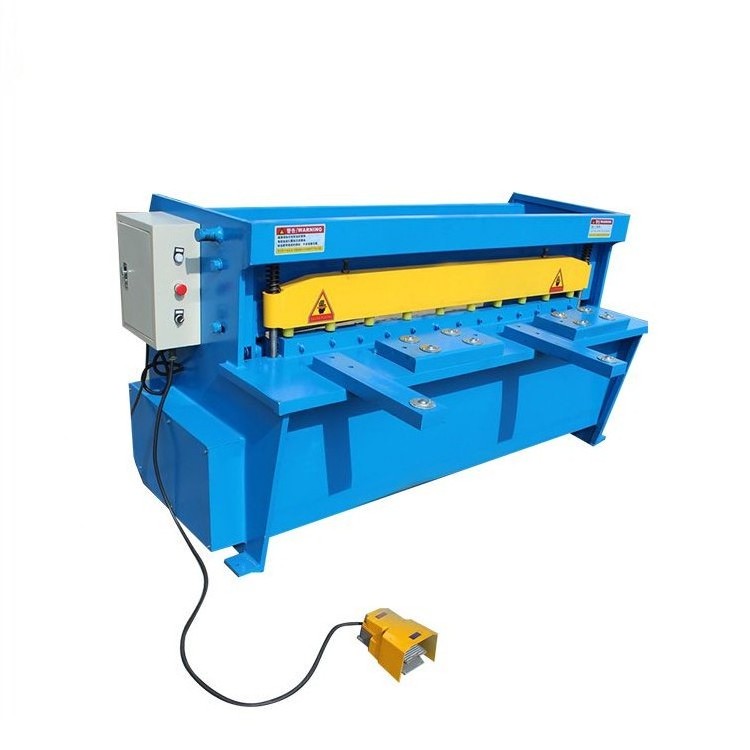

Machine Features:
2.simple and compact structure,flexible and reliable operation, Maintenance convenience.
3.Widely used in motors, electrical appliances, automobile repair, metal manufacturing and all of its sheet metal processing industry.
4.The electric shearing machine/electrical cutting machine is made of all-steel welded construction.
5.Uses electric motor drive, blade made by material 6CrW2Si.
6.Widely used in motor, electrical, automobile industries and all shops of other industries where sheet metal cutting is required.
7.Simple construction,easily operation and safe, sensitive and reliable control.
8.Easy maintenance, low energy consumption.
|
Model
|
Cutting Thickness(mm)
|
Cutting Length(mm)
|
Cutting Angle
(°)
|
Strokes(times/min)
|
|
Q11-3x2000
|
3
|
2000
|
2°14
|
33
|
|
Backguage Range(mm)
|
Motor Power(kw)
|
Dimension(mm)
|
Weight(kg)
|
Color
|
|
500
|
5.5
|
2600x1050x1150
|
1250
|
Blue
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
LCL packing : Inside with waterproof film,outside with wooden box or steel pallet;
FCL packing : Packed with plastic bags and fasten with steel rope on container's hook;
Packed as customer's requirements;
Shipping by sea.
