Quick Details
-
Pawl grip range:
-
5mm
-
Type:
-
Southco E3 Style
-
Free sample:
-
Available, but freight collect
-
Application:
-
Metal Cabinet,Industrial equipment
-
OEM/ODM,small order:
-
accepted
-
Suitable panel thickness:
-
0.8~12mm
-
Maximum Static Load:
-
360N
-
Maximum Input Torque:
-
8N.m
-
KEYWORD-3:
-
compression latch
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Lipson
-
Material:
-
Zinc alloy
-
Pawl grip range:
-
5mm
-
Type:
-
Southco E3 Style
-
Free sample:
-
Available, but freight collect
-
Application:
-
Metal Cabinet,Industrial equipment
-
OEM/ODM,small order:
-
accepted
-
Suitable panel thickness:
-
0.8~12mm
-
Maximum Static Load:
-
360N
-
Maximum Input Torque:
-
8N.m
-
KEYWORD-3:
-
compression latch

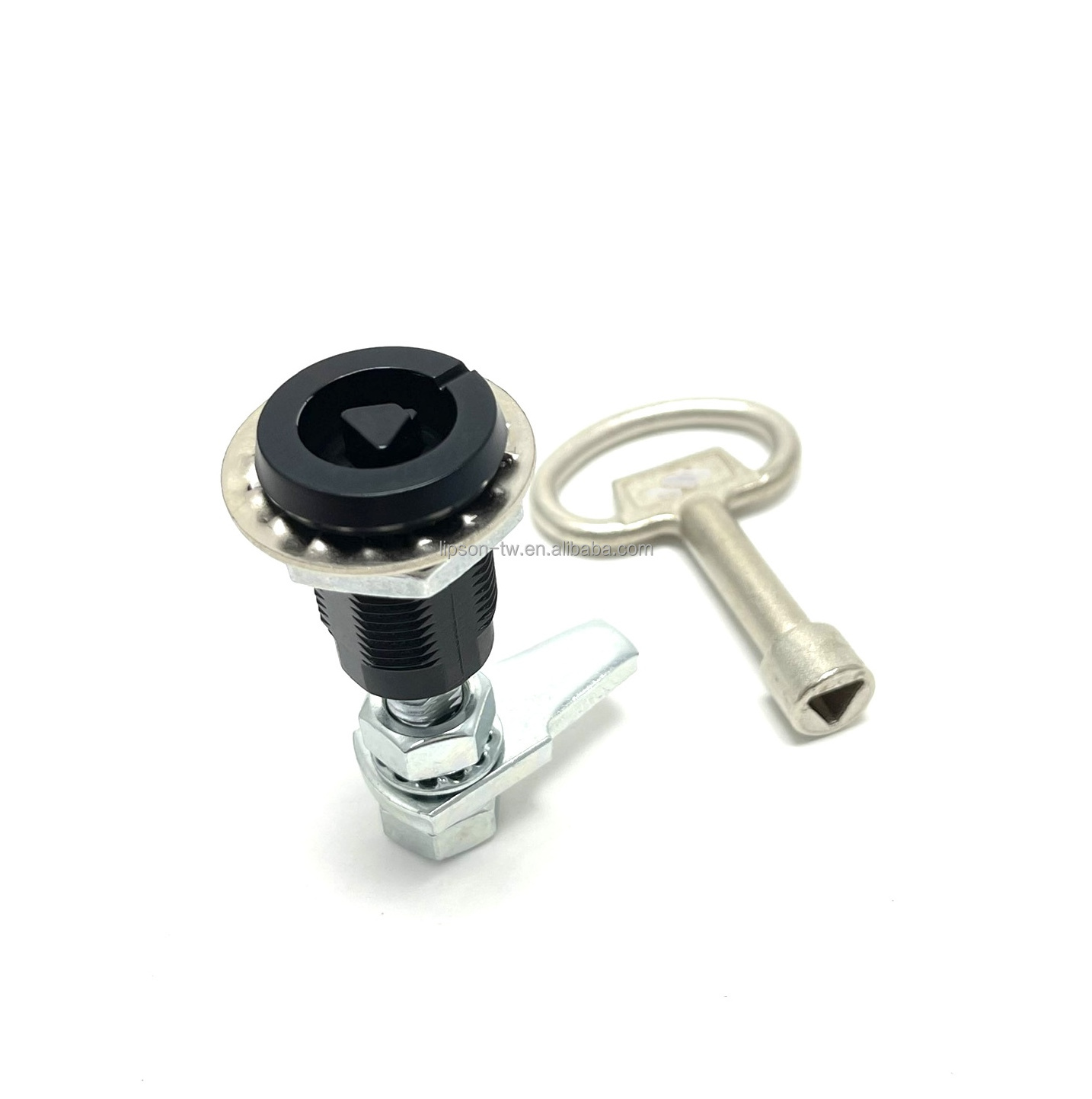

LM-816-1A-3 Black Coated Southco E3 Style Electrical Cabinet Triangle Lock Cylinder Compression Turn Cam Latch
Product description for compression latch
1.Material: Zinc alloy –base&lock cylinder, carbon steel –Cam.
2.S.Tr: Black powder coating –base &lock cylinder, Zinc-plated -Cam
3.The steel cam is rotated 90° to realize opening or locking, with Compression function
4.K15-03 key is optional
5.Maximum static load: 300N
6.Maximum input torque: 11N.m
7.Recommended tightening torque for fixing nut: 20N.m
more pictures of compression latch
Similar product recommendations
more information of panel latch
| Product Name | compression latch,compression lock,cabinet compression latch,compression lock latch,industrial cabinet lock,turn lock compression latch,waterproof compression latch lock,sealed compression lock,compression latch lock, compression cabinet lock, compression panel lock, compression cabinet sealed lock, industry compression lock, industry electric cabinet compression lock,zinc alloy compression lock,panel compression lock,communication panel compression lock,waterproof compression panel lock,compression panel latch |
| Model | LM-816-3A is with swin handle and can be hand operation. |
| LM-816-3B is key operation. | |
| Advantage | 1) LM-816-3A, LM-816-3B design aligns the pawl behind the frame and draws it up tight with a single continuous half-turn motion |
| 2) Compressive action pulls door tight without rubbing action or wear on pawl or frame. | |
| 3) Helps reduce or eliminate noise and rattles caused by vibration | |
| 4) Over-center latching resists accidental opening due to shock or vibration. | |
| 5) Single-hole mounting styles provide for convenient installation | |
| 6) Tool or hand operatedTool or hand operated | |
| Feature | Consistent pre-set compression. Compressive action pulls door tight without rubbing action or wear on pawl or frame. |
| Material and Finish | Black powder coated Zinc Alloy Die Cast body with zinc plated internal components. |
| Accessary Includes | Supplied with two keys along with a zinc plated steel clamp plate. |
| Similar products | LM-816-3A, LM-816-3B |
| Usage and Industry Applications | Automotive/Trucks, control panel, Construction Equipment, Off-Highway, Farm Equipment, distribution panel, kitchen furnishings, electronic control box, cubicle and machinery door,Electronic Enclosures,Industrial Machinery. |
| Website | www.lipson.com.tw |
| Sample | Free sample,Freight amount should be paid by customer. |
| MOQ | 100 PCS |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal |
| OEM/ODM orders are accepted | |
compression latch packing information
