Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Type:
-
Tank formwork
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZEEMO
-
Model Number:
-
ZM-TF
-
Product name:
-
Curved plywood formwork for concrete
-
Material:
-
Plywood
-
Surface treatment:
-
Plastic
-
Shape:
-
Customized
-
Accessories:
-
Screw, nut
-
Delivery time:
-
Within 20 Days Receiving Deposit
-
Glue:
-
MR/E0/E1/E2/WBP/Melamine
-
use:
-
outdoor
-
grade:
-
FIRST-CLASS
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Type:
-
Tank formwork
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZEEMO
-
Model Number:
-
ZM-TF
-
Product name:
-
Curved plywood formwork for concrete
-
Material:
-
Plywood
-
Surface treatment:
-
Plastic
-
Shape:
-
Customized
-
Accessories:
-
Screw, nut
-
Delivery time:
-
Within 20 Days Receiving Deposit
-
Glue:
-
MR/E0/E1/E2/WBP/Melamine
-
use:
-
outdoor
-
grade:
-
FIRST-CLASS
Product Description

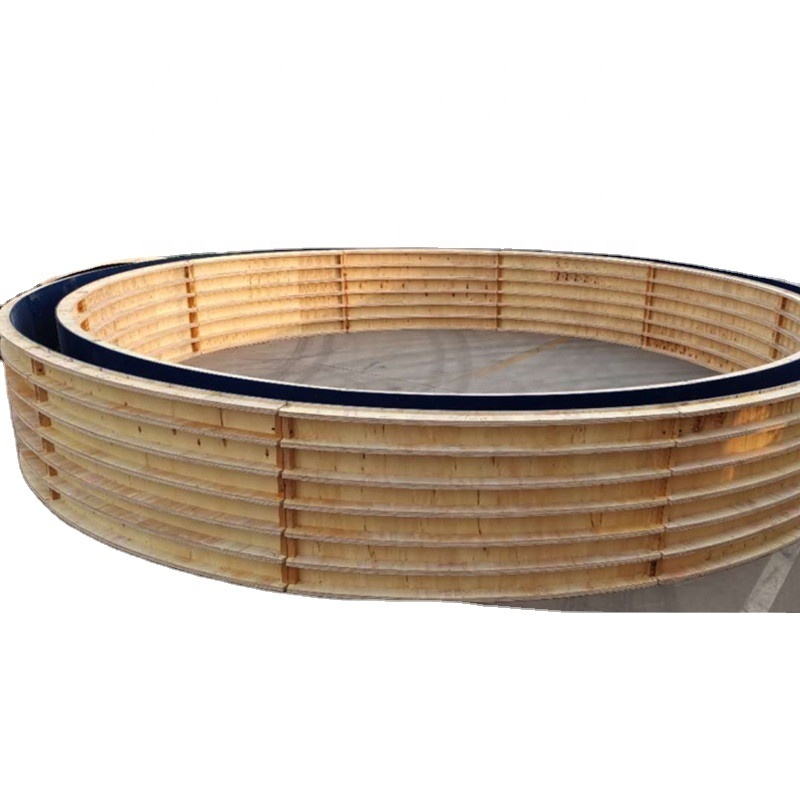

Zeemo circular tank concrete formwork
For some projects that requires curved wall formwork components, we can help our customer by manufacturing the curved wall formwork to their project simply sending us your drawing. Our curved wall system is made of plywood & LVL beam.
Specification
|
Name
|
Component
|
Diameter
|
Weight
|
Width
|
Height
|
|
Curved Wall
|
LVL beams; plywood;plastic coated face/back/edge
|
3000-4500 mm
|
20kg/m2
|
2.4m
|
1.2m
|
|
|
|
4600+ mm
|
18kg/m2
|
2.4m
|
1.2m
|
|
Testing items
|
|
Unit
|
Standard used
|
Tested value
|
|
|
Bonding quality
|
|
N/mm²
|
EN314
|
0.72
|
|
|
Bending strength
|
Longitudinal grain
|
N/mm²
|
EN310
|
50.0
|
|
|
|
Cross grain
|
N/mm²
|
|
40.2
|
|
|
Elasticity in bending
|
Longitudinal grain
|
N/mm²
|
EN310
|
5137
|
|
|
|
Cross grain
|
N/mm²
|
|
3519
|
|
|
Bearing concrete pressure
|
|
KN
|
EN310
|
70
|
|
Features
easy installation, easy dismantle
lower cost
lightweight than steel , easy handling, quickly, save time and labour
no need mold-release agent,water can clean, because surface is plastic
nice finish ,no need re-work
Other shape
Installation
Installation
1) shape fixed , no need calibrate onsite;
3) props and supports.
2) place the parts on the ground,
joint the parts by fasteners;
