Quick Details
-
Model Number:
-
WUB4000
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
coustom-souring
-
Theory:
-
Liquid Level Sensor
-
Output:
-
Liquid Level Sensor
-
Color:
-
Quality class A
Quick Details
-
Use:
-
Liquid Level Sensor
-
Mounting Type:
-
see details
-
Description:
-
see details, Liquid Level Sensor
-
Model Number:
-
WUB4000
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
coustom-souring
-
Theory:
-
Liquid Level Sensor
-
Output:
-
Liquid Level Sensor
-
Color:
-
Quality class A

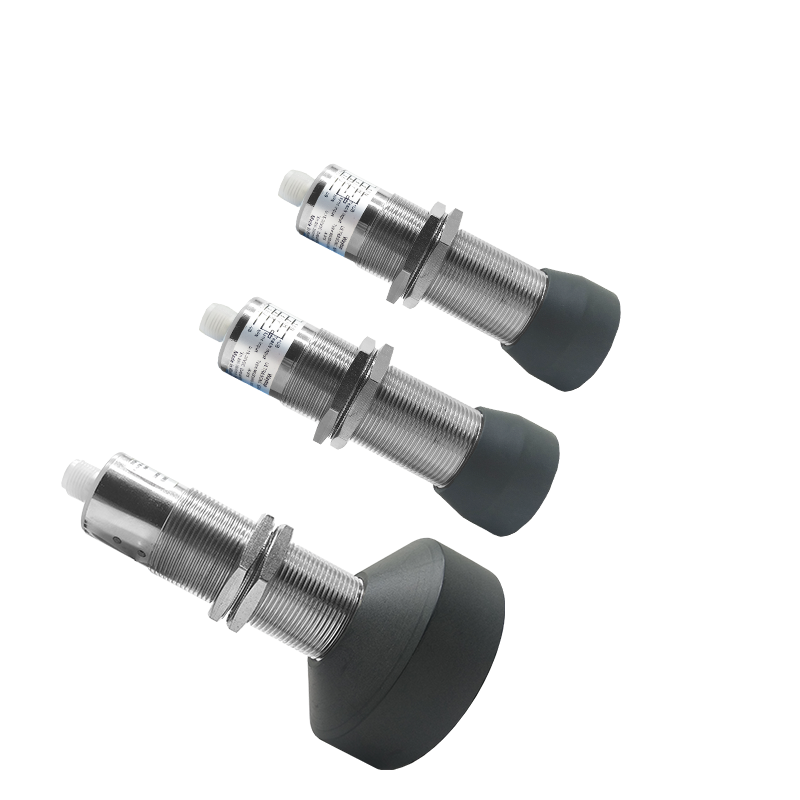

Product Description
Appearance material: Yellow copper-plated nickel
Connection method: V15 connector (M12X1) 5-pin
Overvoltage protection: ≤35V
Power supply voltage: DC10-30V
Working power: <0.5W
Protection level: IP65
Temperature: -25℃~70℃
No-load current: ≤45mA
Switching frequency: Analog current/Analog voltage: No switch type: ≤10HZ
Temperature drift: ±1.5% of full scale value
Repeat accuracy: switching value ≤0.5% switching point, analog type full-scale value ±0.1%
Characteristic curve deviation ±1% of full scale value
Input form: one synchronous input, bidirectional 0-LEVEL:-UB...+1V; 1-LEV:+4V...+UB; input impedance>12KΩ, synchronization pulse
≥100μS, synchronization pulse period: ≥2μs
Output form: 1 analog voltage output 0-10V, 1 analog current output: 4-20mA, 1 switching output: NPN NO/NP PNP NO/NP
Features
Loud cone, long range
Material level detection, liquid level detection
Stable detection and high-speed response
Connection method: V15 connector (M12X1) 5-pin
Overvoltage protection: ≤35V
Power supply voltage: DC10-30V
Working power: <0.5W
Protection level: IP65
Temperature: -25℃~70℃
No-load current: ≤45mA
Switching frequency: Analog current/Analog voltage: No switch type: ≤10HZ
Temperature drift: ±1.5% of full scale value
Repeat accuracy: switching value ≤0.5% switching point, analog type full-scale value ±0.1%
Characteristic curve deviation ±1% of full scale value
Input form: one synchronous input, bidirectional 0-LEVEL:-UB...+1V; 1-LEV:+4V...+UB; input impedance>12KΩ, synchronization pulse
≥100μS, synchronization pulse period: ≥2μs
Output form: 1 analog voltage output 0-10V, 1 analog current output: 4-20mA, 1 switching output: NPN NO/NP PNP NO/NP
Features
Loud cone, long range
Material level detection, liquid level detection
Stable detection and high-speed response
