Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM10-BJ-1
-
MOQ:
-
1pcs
-
Mouting hole:
-
10mm
-
Certificate:
-
CE ROHS
-
Package:
-
50pcs/box
-
Symbol:
-
Accept customize
-
End way:
-
2 PINS
-
Function:
-
Momentary
-
Material:
-
Stainless steel or brass
-
led Voltage:
-
No led
-
Led color:
-
None
-
Certification:
-
CE UL
Quick Details
-
Protection Level:
-
IP65,IK10
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM10-BJ-1
-
MOQ:
-
1pcs
-
Mouting hole:
-
10mm
-
Certificate:
-
CE ROHS
-
Package:
-
50pcs/box
-
Symbol:
-
Accept customize
-
End way:
-
2 PINS
-
Function:
-
Momentary
-
Material:
-
Stainless steel or brass
-
led Voltage:
-
No led
-
Led color:
-
None
-
Certification:
-
CE UL
Product Description

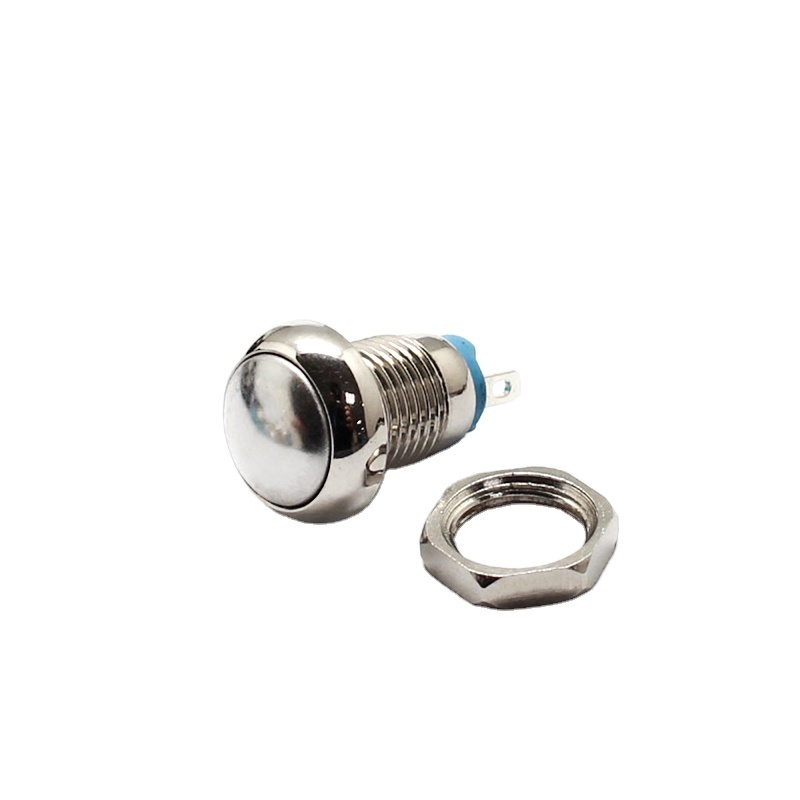

| Product Name | Push Button Switch |
| Model | FLM10-BJ-1 |
| Mounting Hole | 10mm |
| Operation Type | Momentary |
| Switch Combination | 1NO |
| Actuator Type | Ball |
| Terminal type | 2 Pin Terminals |
| Illuminanted or not | No light |
| Led Voltage | / |
| Led Color |
/ |
| Illuminated Type | / |
| Enclosure Material | Stainless steel |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket |
| Order Confirm | / |
| Wiring Harness | / |
