Quick Details
-
Application:
-
cassava grating machine
-
Capacity:
-
20t,30, 50t, 100t, 200t
-
Usage:
-
based on capacity
-
Voltage:
-
380V
-
Power:
-
Electric and others
-
Material:
-
as your required
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Field installation, commissioning and training, Engineers available to service machinery overseas
-
Product name:
-
cassava grater
-
Application:
-
cassava grating machine
-
Capacity:
-
20t,30, 50t, 100t, 200t
-
Usage:
-
based on capacity
-
Voltage:
-
380V
-
Power:
-
Electric and others
-
Material:
-
as your required
-
Advantage:
-
Easy Operation High Efficiency

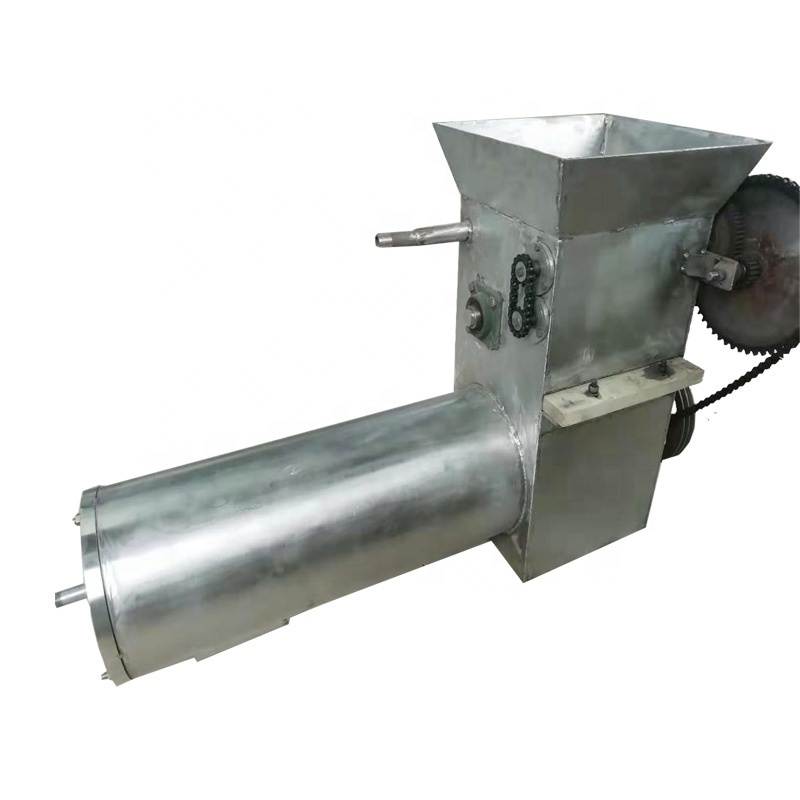

Cassava grater
In the cassava grater , the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the material get into the working area of hammers, the rotating hammers with high rotation speed are crushing the material, the crushed product meeting the required size can be discharged by the outlet and become the final products, the large size product are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.
Main technical parameters of cassava grater :
|
Model |
Capacity(t/h) |
Power(kw) |
|
PS48-24 |
2-3 |
7.5 |
|
PS48-32 |
4-5 |
15 |
|
PS48-40 |
5-6 |
22 |
|
PS60-60 |
6.5-8 |
30-37 |
|
PS60-84 |
10-13 |
45-55 |
|
PS60-108 |
15-20 |
75 |
Advantages of the cassava grater :
Big crushing ratio, strong production ability, uniform product size, less powder rate, low energy consumption, simple structure, light weight, easy operation and maintenance.
Features of the cassava grater :
1. The body uses gas to protect the welds, through the technological performance of vibrating expiration, the toughness of structure is stronger.
2. Rotating parts are processed and with quality-adjusting treatment by the numerical control center. The toughness is higher.
3. The hammer head use the pure high-chromium alloying material. The tensile strength and the wear-resisting property become better.
Henan Doing Mechanical Equipment Co., Ltd, is located in Zhengzhou city, Henan province, China. Doing company is an enterprise integrating engineering, R&D, equipment manufacturing and installation, project contracting, technical services and international trading etc. We are mainly engaged in starch and syrup processing plant, cassava processing plant, contains its stand-alone device. also gluten machine.
Our company is a professional R&D team, with advanced technology, powerful manufacturing ability. Our factory covering an area of33,335 square meters, with an annual production value of $8 millions, we own more than 30 senior technical engineers majored in starch and syrup technology, electric engineering, automation and machinery. Doing company focus on developing new products and technology. On the basis of making syrup from starch, we introduce the technology that using raw grains(rice/broken rice) to produce glucose/fructose/maltose syrup directly. We have undertaken to completed a number of major engineering and technical service abroad, equipped with modern installation equipment and the most professional installation team with rich experience, we guarantee the stable running of all projects.
1.We can appoint specialized after sale service staff to your country for installation and debugging the equipment.
2.Train operating personnel.
3.All the machines will be checked OK before delivery.
4.Warranty for 12 months.
5.We provide technical support in overseas.
Our products sell well all over the world. Our machinery have been exported to Nigeria, Ghana, Tanzania, South Africa, Thailand, India, Uzbekistan, Russia, Kenya, Indonesia, Cameroon, Liberia, Pakistan, Bangladesh, America, Egypt, Brazil, Mexico and other countries and regions.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Qingdao, Shanghai, Guangzhou, Ningbo
1. Q: Are you a trading company or a manufacturer ?
A: We are a manufacturer, which has long experience in this industry.
2. Q: How can I get to your company ?
A: You can get a flight to CGO. We are just about 40- 50mins away from this Airport.
3. Q: How long is your guarantee ?
A: One year
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer.
5. Q: Do you have some foreign customers using your equipment?
A: yes, we have our company has established business relationships with customers in Nigeria,Ghana , South Africa, Ukraine, Vietnam, Pakistan.
