Quick Details
-
Brand Name:
-
Zhongxiang
-
Product Name:
-
6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler
-
Material:
-
High-strength manganese steel
-
Capacity:
-
6-15 ton
-
Usage:
-
Cargo handling
-
Application:
-
Workshop
-
Type:
-
Stationary
-
Other name:
-
loading dock leveller
-
Model:
-
DCQ
-
voltage:
-
380/220v
-
Warranty period:
-
1 year
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
500
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongxiang
-
Product Name:
-
6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler
-
Material:
-
High-strength manganese steel
-
Capacity:
-
6-15 ton
-
Usage:
-
Cargo handling
-
Application:
-
Workshop
-
Type:
-
Stationary
-
Other name:
-
loading dock leveller
-
Model:
-
DCQ
-
voltage:
-
380/220v
-
Warranty period:
-
1 year

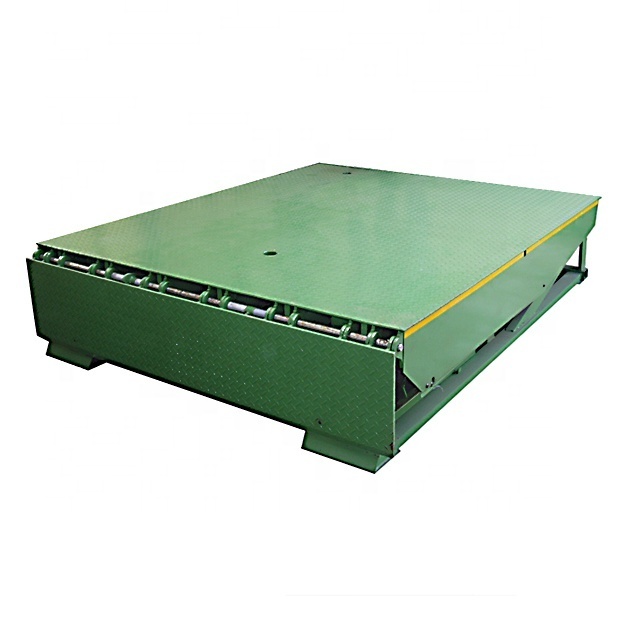

6-10T Fixed Unloading Ramps yard ramp forklift
container dock leveler
Stationary hydraulic dock leveler used hydraulic power unit through the main oil cylinder will discharge the main panel lift platform, small oil cylinder automatic strap will launch, and through the unloading platform weight drops, the small strap to the rear platform, complete the whole movement.
Can be customized according to customer size
6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler 6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler 6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler6-10T Fixed Unloading Ramps yard ramp forklift container dock leveler
|
model
|
DCQ0.55-6
|
DCQ0.65-6
|
DCQ0.7-8
|
DCQ0.55-8
|
DCQ0.65-10
|
DCQ0.7-10
|
|
Rated load(kg)
|
6000
|
6000
|
8000
|
8000
|
10000
|
10000
|
|
Platform size L*W((mm)
|
2000*1800
|
2000*2000
|
2500*2000
|
2000*1800
|
2000*2000
|
2500*2000
|
|
Increase height A
(mm)
|
250
|
350
|
450
|
300
|
350
|
450
|
|
Lower height B
(mm)
|
300
|
300
|
250
|
250
|
300
|
250
|
| Own height(mm) |
600
|
600
|
600
|
600
|
600
|
600
|
| Lip height(mm) |
400
|
400
|
400
|
400
|
400
|
400
|
| voltage(v) |
380/220
|
380/220
|
380/220
|
380/220
|
380/220
|
380/220
|
| Motor Power(kw) |
0.75
|
0.75
|
0.75
|
0.75
|
0.75
|
0.75
|
|
Pit size
L*W*H
|
2160*1840*600
|
2160*2040
*600
|
2660*2040*600
|
2160*1840
*600
|
2660*2040
*600
|
2660*2040
*600
|
Main Features
1)Stable performance
2) easy to use
3) Running smoothly
Truck used loading dock ramp
Stationary hydraulic dock leveler is the special auxiliary equipment to realize rapid loading and unloading of goods, its height adjustment function between the truck and warehouse loading bridge, such as forklift trucks carrying vehicles through which can directly into the van batch loading and unloading of goods, it takes only a single assignment can be realized fast loading and unloading of the goods. It reduces the number of workers in the workforce and improves productivity in order to achieve greater economic benefits .In general, It is the equipment necessary for the production of modern enterprise civilization and the speed of material circulation.
