Quick Details
-
Model Number:
-
DPS-210RN
-
Max. Current:
-
40mA
-
Max. Working Pressure:
-
1.0 Mpa
-
Product name:
-

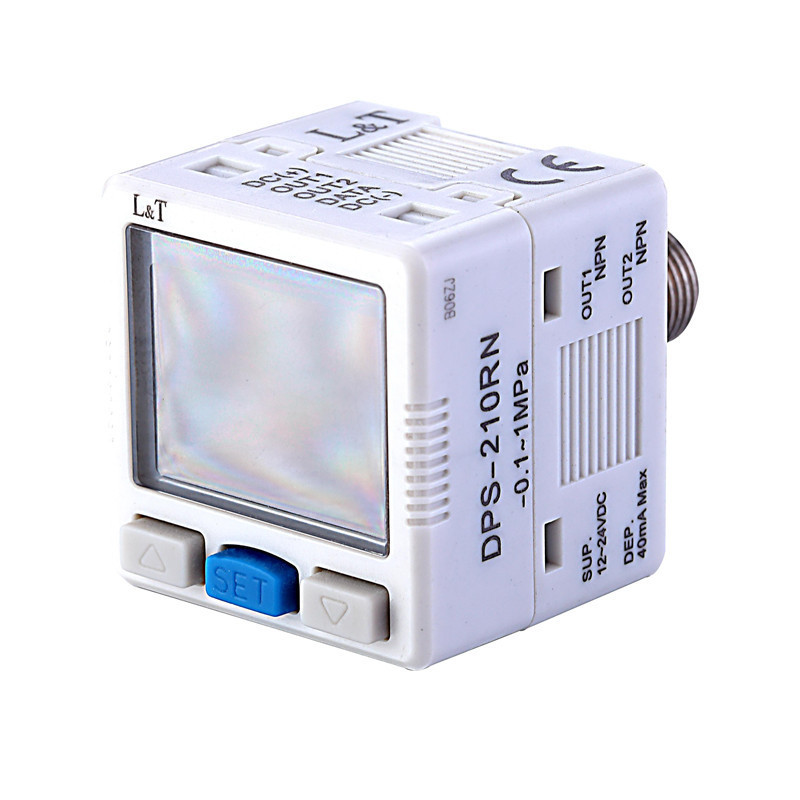

digital water pressure switch
-
Pressure Types:
-
Non-flammable,non-corrosive gas,gauge pressure measuremen
-
Measurement Pattern:
-
Hysteresis mode ,Single point mode ,Window mode
-
Consumed Power:
-
40mA Max(non-load)
-
Response Time:
-
Adjustable:2.5ms,20ms,100ms,500ms,1000ms,1500ms
-
IP Level:
-
IP40
-
Insulation Voltage:
-
1000VAC 1min
-
Insulation Resistance:
-
≥50MΩ(500VDC)
-
Impact Resistance:
-
Max 100m/s2,3 times each in6 directions of X.Y and Z
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
24VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RFS
-
Model Number:
-
DPS-210RN
-
Max. Current:
-
40mA
-
Max. Working Pressure:
-
1.0 Mpa
-
Product name:
-
digital water pressure switch
-
Pressure Types:
-
Non-flammable,non-corrosive gas,gauge pressure measuremen
-
Measurement Pattern:
-
Hysteresis mode ,Single point mode ,Window mode
-
Consumed Power:
-
40mA Max(non-load)
-
Response Time:
-
Adjustable:2.5ms,20ms,100ms,500ms,1000ms,1500ms
-
IP Level:
-
IP40
-
Insulation Voltage:
-
1000VAC 1min
-
Insulation Resistance:
-
≥50MΩ(500VDC)
-
Impact Resistance:
-
Max 100m/s2,3 times each in6 directions of X.Y and Z
-
Certification:
-
CE
Product Description
Specification
|
Products Name
|
Digital Pressure Switch
|
|
Item No
|
DPS-210RN
|
|
Range of Measurement
|
-0.100MPa~1.000MPa
|
|
Setting Range
|
-0.100MPa~1.000MPa
|
|
Pressure-resistance
|
1.500MPa
|
|
Measurement Accuracy
|
≤±2%F.S.(Ambient temperature 25℃)
|
|
Temperature Error
|
≤±3%F.S(Temperature range 0~50℃)
|
|
Brief Description
|
LCD
|
|
Max. Working Pressure
|
1.0 Mpa
|
|
Pressure Types
|
Non-flammable,non-corrosive gas,gauge pressure measuremen
|
|
Measurement Pattern
|
Hysteresis mode ,Single point mode ,Window mode
|
|
Consumed Power
|
40mA Max(non-load)
|
|
Response Time
|
Adjustable:2.5ms,20ms,100ms,500ms,1000ms,1500ms
|
|
IP Level
|
IP40
|
|
Insulation Voltage
|
1000VAC 1min
|
|
Insulation Resistance
|
≥50MΩ(500VDC)
|
|
Impact Resistance
|
Max 100m/s2,3 times each in6 directions of X.Y and Z
|
