High quality continuous forming screw spiral auger flight making machine

High quality continuous forming screw spiral auger flight making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $24600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Name:: Spiral blade forming machine

Certification:: CE

Type:: Cold rolling mill

Power:: 33KW

screw direction:: left and right

Function:: Make spiral blade

Color:: Clients' requirements

Application:: Making screw conveyor

Weight:: 7T

Usage2:: Harvester

Quick Details

Place of Origin:: Henan, China

Brand Name:: HENG YUAN

Weight (KG):: 7000

Name:: Spiral blade forming machine

Certification:: CE

Type:: Cold rolling mill

Power:: 33KW

screw direction:: left and right

Function:: Make spiral blade

Color:: Clients' requirements

Application:: Making screw conveyor

Weight:: 7T

Usage2:: Harvester

Product Description

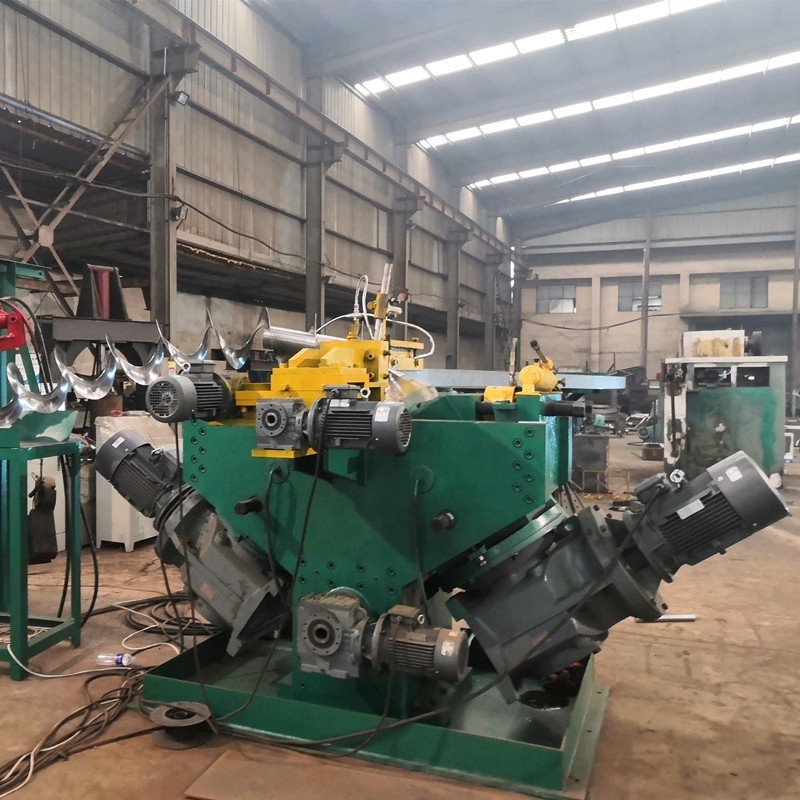

Spiral blade Forming Machine

HY spiral blade forming machine are the second generation of our design . Spiral Blade forming machine products,which researched and developed by our company's practical experience.
HY series of products are the advanced equipment for producing spiral blade ,which use the strip steel as the raw material and make continuous rolling operation. Compared with conventional cold forming practices which is used current widely, it just needs do some simple adjustments on the equipment's adjustable parts (don't need replace parts), like the device dials and pressure gauges, and then roll out various kinds of spiral blades required. This series of products have the advantages of flexibility to adjust the production specification, high efficiency production, saving raw materials, high leaf hardness and good wear resistance.

If you have any questions, please contact us. Cell / Whatsapp:+ 0086 18039505731

	product name	Spiral blade forming machine	Spiral blade forming machine
Item	Model	HY-Y350	HY-Y400
//////	Working mode	Mechanical	Hydraulic
I	The thickness of rolled strip	2-6mm	2-8mm
W	The width of the strip rolling	≤125mm	≤150mm
d	ID	20-200mm	20-500mm
D	OD	90-450mm	800mm
P	pitch of screw thread	Adjustable	Adjustable
//////	Roller speed	1-12r/min	1-12/min
//////	Main motor working speed	1400r/min	1400r/min
//////	Shearing mode	Hydraulic cutter	Hydraulic cutter
//////	Main Power	19kw	33kw
/////	Gross Weight	6tons	7tons

Products Show

Our Service

High quality

Passed the CE Certification OF spiral blade forming machine .

High quality

we use Siemensmotor . Best parts FOR spiral blade forming machine .

High quality

Perfect electrical machine and ele-control box with spiral bladeforming machine.

Final products

Application

1. Spiral blade forming machine apply gricultural machinery accessories,harvester, bagging mahine.
2. Spiral blade forming machine apply Screw flight for concret mixing machinery.
3. Spiral blade forming machine apply screw flight for food pro cessor machine.
4. Spiral blade forming machine apply blower fan ,elevator.
5. Spiral blade forming machine apply Shaftless screw conveyor etc.

Hydraulic type

Our company have Hydraulic spiral blade forming machine ,Hydraulic spiral blade forming machine belong to special equipment,professional production of various kinds of continuous spiral blade.Through the technology of cone roller continuous rolling,the rolling technology is applied to the processing of spiral blade,with high efficiency,energy and materials saving,the adjustment structure use the combination of hydraulic pressure and electric,with high efficiency and save labor.It is the most advanced processing method in the world that the quality of the blade is good, the cost is low, and the labor intensity is low.

Cantact us

Customer visit the our company, they come from Pakistan. our spiral blade forming machine are mainly are New Zealand, Canada, Poland, Indonesia, India and Ukraine.

Our company spiral blade forming machine
series of products can be used in screw conveyor,harvester and other equipment, the blade thickness is uniform,can process carbon steel,stainless steel,manganese steel,etc.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-50days if the goods are not in stock, it is according to quantity.

Q: Why choose us ?

A: we have different specifications and materials,successfully applied different field. Meanwhile we strictly control raw material procurement, manufacturing, quality of all aspects.
