Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SIGN CNC
-
Voltage:
-
380V/50 60HZ
-
Dimension(L*W*H):
-
2000*3000mm*300mm
-
Power (kW):
-
9
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Technical Support available oversea
-
function:
-
woodworking cnc router machine
-
spindle power:
-
9.0kw China air cooling Spindle
-
Change style:
-
Linear8 Auto tool change
-
key word:
-
cnc router
-
control system:
-
SYNTEC 60WE
-
Motor and driver:
-
Syntec 1000w
-
Guide rail:
-
25mm Square Rail
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table Surface:
-
Vacuum Combined T-slot Table
Quick Details
-
Working Table Size(mm):
-
2000×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9.0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SIGN CNC
-
Voltage:
-
380V/50 60HZ
-
Dimension(L*W*H):
-
2000*3000mm*300mm
-
Power (kW):
-
9
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Technical Support available oversea
-
function:
-
woodworking cnc router machine
-
spindle power:
-
9.0kw China air cooling Spindle
-
Change style:
-
Linear8 Auto tool change
-
key word:
-
cnc router
-
control system:
-
SYNTEC 60WE
-
Motor and driver:
-
Syntec 1000w
-
Guide rail:
-
25mm Square Rail
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table Surface:
-
Vacuum Combined T-slot Table

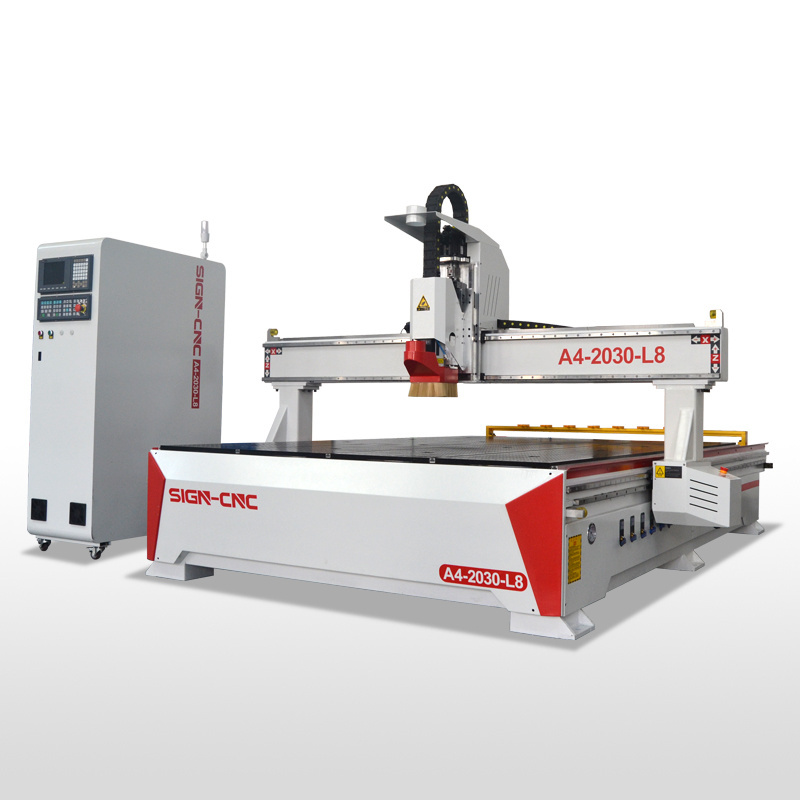

Automatic tool changer A4-2030-L8 cnc wood carving machine atc wood router for woodworking/furniture industry
Product Description
|
Model
|
A4-2030-L8
|
|
X, Y Working size
|
2000*3000mm
|
|
Z feed Height
|
300mm (Higher is optional)
|
|
Table Surface
|
Vacuum and T-slot Combined
|
|
X, Y Structure
|
Rack and Pinion Drive, 25mm Linear Square Guide Rail
|
|
Z Structure
|
25mm Linear Square Guide Rail and Ball Screw
|
|
Max. Power Consumption
|
(Without spindle) 2.0Kw
|
|
Max. Rapid Travel Rate
|
33000mm/min
|
|
Max. Working Speed
|
25000mm/min
|
|
Spindle Power
|
HQD ATC 9 KW air cooling spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Motors
|
Syntec 1000W servo motor and drivers
|
|
Working Voltage
|
AC380V/50/60Hz
|
|
Command Language
|
G code
|
|
Control System
|
SYNTEC 60WE bus control
|
|
X,Y,Z repositioning Accuracy
|
±0.01mm
|
|
X,Y Resolution
|
<0.01mm
|
|
Software
|
Artcam
|
|
Running Temperature
|
0 degree - 45 degree
|
|
Relative Humidity
|
30% - 75%
|
|
Optional Parts
|
Rotary system, Mist-cooling system
|
Application & Sample
Packing & Delivery
1. Outside package: Fumigation-free plywood box
2. Inside package: All machine parts will be packed perfectly. whole machine packed with waterproofing membrane.
On the case of top and bottom, we install steel tube to support it. It is strong to avoid damage during the long transportation.
Delivery Details : 15-20 working days after deposit.
2. Inside package: All machine parts will be packed perfectly. whole machine packed with waterproofing membrane.
On the case of top and bottom, we install steel tube to support it. It is strong to avoid damage during the long transportation.
Delivery Details : 15-20 working days after deposit.
