Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QJ
-
Voltage:
-
380V 50HZ 3Phase
-
Dimension(L*W*H):
-
8500mm*1500mm*1550mm
-
Weight:
-
3.5Ton
-
Feeding width:
-
OEM
-
item:
-
Color steel standing seam roof panel roll forming machine
-
package:
-
nude package
-
shipping way:
-
by sea
-
nature of business:
-
manufacturer
-
Roller:
-
45# Forging Steel
-
Roller Stations:
-
18 Steps
-
Shaft Material:
-
45# Steel
-
Shaft Diameter:
-
65mm
-
Speed:
-
8-12m/min
-
Certification:
-
ISO 9001:2000
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
8-12m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QJ
-
Voltage:
-
380V 50HZ 3Phase
-
Dimension(L*W*H):
-
8500mm*1500mm*1550mm
-
Weight:
-
3.5Ton
-
Feeding width:
-
OEM
-
item:
-
Color steel standing seam roof panel roll forming machine
-
package:
-
nude package
-
shipping way:
-
by sea
-
nature of business:
-
manufacturer
-
Roller:
-
45# Forging Steel
-
Roller Stations:
-
18 Steps
-
Shaft Material:
-
45# Steel
-
Shaft Diameter:
-
65mm
-
Speed:
-
8-12m/min
-
Certification:
-
ISO 9001:2000

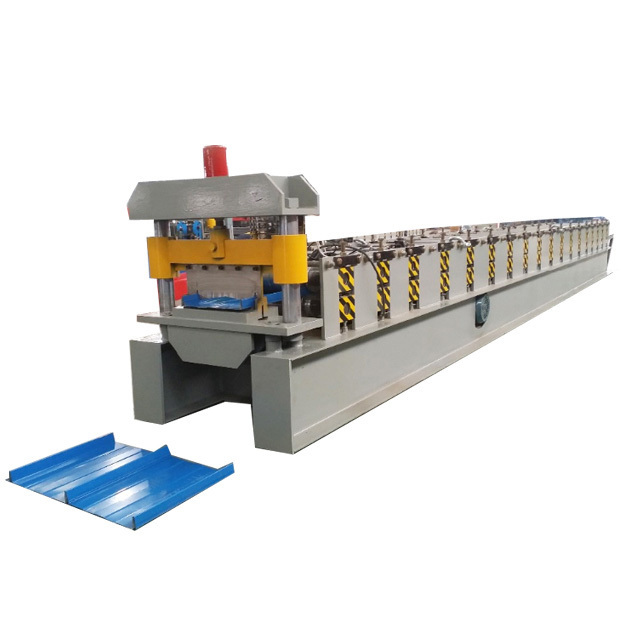

Standing seam steel bemo tapered metal roof panel roll forming machine ,sheet metal making machine
|
Suitable material |
Color steel sheet , galvanized steel sheet, |
|
Machine Sizes |
8500mm×1500mm×1500mm |
|
Main motor power |
5.5KW with Cycloidal reducer |
|
Hydraulic station power |
4KW |
|
Hydraulic oil |
40# |
|
Thickness of material |
0.3mm~0.6mm |
|
Diameter of principal axis |
Φ65mm |
|
Material expand width |
450mm |
|
Electric tension |
380V 3phase 50HZ |
|
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
|
Rolling galvanization thickness |
0.05mm |
|
Processing speed |
8-12m/min |
|
Processing precision within |
1.00mm |
|
Material of cutting blade |
Cr12 mould steel with quenched treatment |
|
Kind of drive |
1 inch chain link bearing model 6210 |
|
Roller station |
18 Steps |
Q1. What's your delivery time? step roof tile pressing machine
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.
Q2. Do you have after-sales support?
step roof tile pressing machine
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We
need your
machines running in order to keep your business running.
Q3. Do you sell only standard machines?
step roof tile pressing machine
A3:No, most of our machines are built according to customers specifications,using top brand components.
Q4. What will you do if the machine is broken?
step roof tile pressing machine
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts
replace the broken parts freely,but you need pay the express cost yourself.
If it is beyond the warranty
period,
we can negotiate to solve the problem,and we supply the technical support for the whole life
of the equipment.
Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can pick up you.
