- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
S007 Wireless Laser Timer
-
Product Name:
-
S007 Wireless Laser Timer
-
Usage:
-
Single or multi player sports training
-
Working Environment:
-
-35°C~50°C
-
Power Supply:
-
Power Bank(5V 2A)
-
Operating Distance:
-
0-500 Meters
-
Display Size:
-
23*8cm
-
Display Forma:
-
5-Digit Lamp BeadS + OLED Screen
-
Communication Mode:
-
Wireless Communication
-
Application:
-
Sprint;Track and field; Running
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Electronic
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
FengQuan
-
Model Number:
-
S007 Wireless Laser Timer
-
Product Name:
-
S007 Wireless Laser Timer
-
Usage:
-
Single or multi player sports training
-
Working Environment:
-
-35°C~50°C
-
Power Supply:
-
Power Bank(5V 2A)
-
Operating Distance:
-
0-500 Meters
-
Display Size:
-
23*8cm
-
Display Forma:
-
5-Digit Lamp BeadS + OLED Screen
-
Communication Mode:
-
Wireless Communication
-
Application:
-
Sprint;Track and field; Running
-
Warranty:
-
1 Year
Fengquan S006 Single Person Training Long Distance Wireless Laser Timer Sensor Running Race Timer Electronic Timing System
Product Description
S007 Wireless Laser Timer
Hardware:
(3) The starting box is activated, 1, 2, 3, and 4 are all lane-by-lane timings at the end point, and multiple laps can be set.
The OLED screen can display the lap time of the previous lap. (May be called "multi track mode")
Advantages:

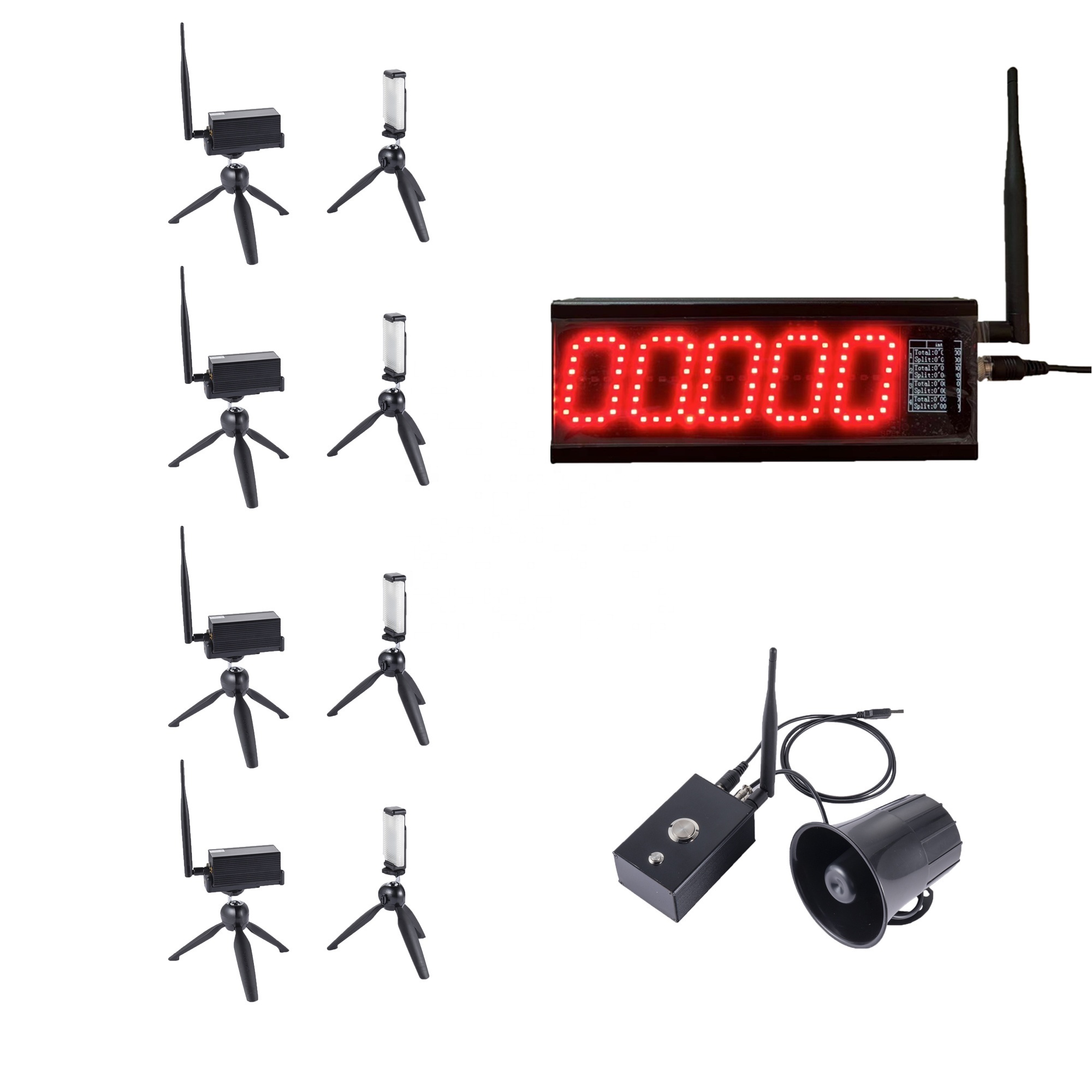

1. 1 pcs electronic control box,
2. 4 pcs laser gates
3. 1 pcs five-digit lamp bead + OLED screen
4. 4 pcs small tripods + 1 pcs high tripod
Function: To achieve 3 different usage modes, it can communicate stably within a range of 500 meters.
Function: To achieve 3 different usage modes, it can communicate stably within a range of 500 meters.
(1) The No. 1 laser is the starting point to start the timing, and the No. 2, 3, and 4 lasers are the end points of the interval timing, and the interval interval time is displayed. (May be called "interval mode")
(2) When the command box is activated, the intervals 1, 2, 3, and 4 arranged on a single track are timed by segments, and the interval time between intervals is displayed. (may be called: segment mode)
(3) The starting box is activated, 1, 2, 3, and 4 are all lane-by-lane timings at the end point, and multiple laps can be set.
The OLED screen can display the lap time of the previous lap. (May be called "multi track mode")
Advantages:
(1) The equipment is simple and easy to erect, and the terminal equipment and brackets occupy a relatively small
position on the runway,
position on the runway,
(2) You can check the time of each track on the OLED small screen, without having to go to the end of the track to check,
(3) The interval time can be displayed, which is beneficial to the data.
DEMO VIDEO：
DEMO VIDEO：
S-007 hardware introduction： https://youtu.be/mEx3GHO3xPU
MODE 1: interval timing mode: https://youtu.be/GHExA12p5kI
MODE 2:segment timing mode: https://youtu.be/ofsXPsgwusQ
MODE 2:segment timing mode: https://youtu.be/ofsXPsgwusQ
MODE 3:Multi-track timing mode: https://youtu.be/7f7su4BakB8
S-007 Timing system setting method: https://youtu.be/hCtsQ7sjFhE
Custom System
If you have special timing function requirements, you are welcome to contact us, we can accept the development of variouscustomized systems.
If you have special timing function requirements, you are welcome to contact us, we can accept the development of variouscustomized systems.
Related Products
Customer Feedback
Customer Inquiries
What kind of power will be needed? 12 volt battery? Does this device come with the power banks?
Answer:You need to use an ordinary power bank. Anything that can charge the phone can be used. Its
Answer:You need to use an ordinary power bank. Anything that can charge the phone can be used. Its
voltage is DC 5V. We recommend you to use the 2A output interface. Due to the inconvenience of transportation, the equipment does not contain a power bank, you need to prepare your own power bank to supply power to the equipment.
I am wondering if a second digital screen would be available to add on to this purchase?
Answer:It is a complete system, if you need two screens, need we also custom-made production, there will be additional costs.
Where can I find the manual?
Answer: We have an operation manual. It is very easy to set up. Or watch the YouTube video that comes with this product.
Anyone using this for mountain bike race DH race in woods?
Answer:Mountain bikes have long distances and are generally blocked by forests. This device may not fully guarantee the stability of the wireless signal.
Hello, is there an app to connect the time results to a phone?
Answer:I'm sorry, we don't have currently developing corresponding phone APP.
I am wondering if a second digital screen would be available to add on to this purchase?
Answer:It is a complete system, if you need two screens, need we also custom-made production, there will be additional costs.
Where can I find the manual?
Answer: We have an operation manual. It is very easy to set up. Or watch the YouTube video that comes with this product.
Anyone using this for mountain bike race DH race in woods?
Answer:Mountain bikes have long distances and are generally blocked by forests. This device may not fully guarantee the stability of the wireless signal.
Hello, is there an app to connect the time results to a phone?
Answer:I'm sorry, we don't have currently developing corresponding phone APP.
Does this come with a case? Video has the whole thing in a brief case?
Answer:Yes, the box of this set of equipment is a suitcase with a sponge protection device in it, just like the one on the video.You can buy with confidence.
If I buy two units can they be ran at the same time next to each other or will the wireless connections interfere?
Answer:You can. I've ran both the single and dual units together..and there was no radio interference noticed.
How high can tripods be raised?
Answer: Because this tripod needs to be put into the box, it cannot be raised. If you need to erect it at a higher height, you can purchase a tripod with a suitable height by yourself. Its interface is an international standard 1/4 interface. Most tripods can be used.
