Quick Details
-
Model Number:
-
SIN-P300
-
Type:
-
Pressure Senor
-
Accuracy:
-
0.5%,0.3%
-
Pressure type:
-
Gauge Pressure Absolute Pressure Sealed Pressure
-
Power Supply:
-
24VDC(9~36V)
-
Output:
-
4~20mA;1~5V; 0~10V;0~5V;RS485
-
Measurement range:
-
-0.1...0/0.01...60Mpa
-
Overload pressure:
-
150%FS
-
Ingress protection:
-
IP65
-
Load Resistance:
-
(V-8.5V)/0.02A
-
Insulation:
-
100MΩ,250VDC
-
Certification:
-
CE
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sinomeasure
-
Model Number:
-
SIN-P300
-
Type:
-
Pressure Senor
-
Accuracy:
-
0.5%,0.3%
-
Pressure type:
-
Gauge Pressure Absolute Pressure Sealed Pressure
-
Power Supply:
-
24VDC(9~36V)
-
Output:
-
4~20mA;1~5V; 0~10V;0~5V;RS485
-
Measurement range:
-
-0.1...0/0.01...60Mpa
-
Overload pressure:
-
150%FS
-
Ingress protection:
-
IP65
-
Load Resistance:
-
(V-8.5V)/0.02A
-
Insulation:
-
100MΩ,250VDC
-
Certification:
-
CE
Our service
Our Aim :
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Service engineer team, Sale engineer team, R&D team, Logistics team, Manufacturing team.
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Service engineer team, Sale engineer team, R&D team, Logistics team, Manufacturing team.
Products Description

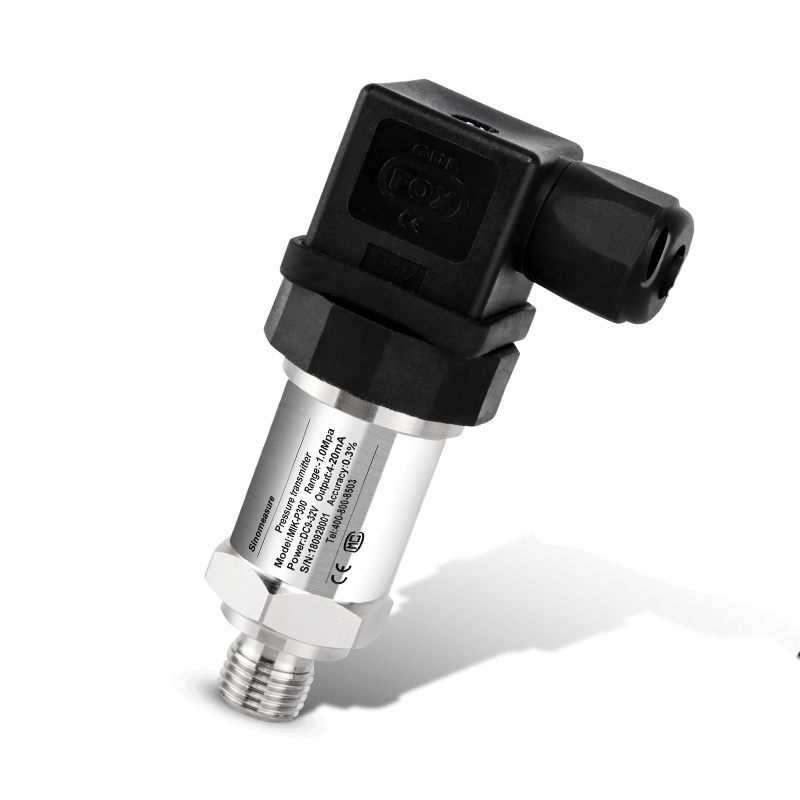

SIN-P300 is a series of high performance compact pressure Transmitter, by using diffused silicon pressure sensor. It has high accuracy 0.5%(standard) 0.3%(high accury). In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
|
Power Supply
|
24VDC（9~36V）
|
|
Output
|
4~20mA;1~5V;
0~10V;0~5V;RS485 |
|
Accuracy
|
0.3%、0.5%
|
|
Measurement range
|
-0.1…0/0.01…60Mpa
|
|
Pressure type
|
gauge pressure, adiabatic pressure and sealed pressure
|
|
Compensation temperature
|
-10℃～70℃
|
|
Working temperature
|
-20℃~85℃
|
|
Medium temperature
|
-20℃~85℃
|
|
Storage temperature
|
-40℃~125℃
|
|
Zero-point temperature drift
|
±1.5%FS/10℃
|
|
Sensitivity temperature drift
|
±1.5%FS/10℃
|
|
Overload pressure
|
150%FS
|
|
Long-term stability
|
±0.2%FS/year
|
|
Response time
|
≤10ms（up to 90％FS）
|
|
Insulation
|
100MΩ,250VDC
|
|
Ingress protection
|
IP65
|
|
Load Resistance
|
(V-8.5V)/0.02A
|
