This machine is used for the outer packaging of stationery, toys, tableware, knives, lamps, hardware and other small commodities. The packaged product is dustproof and moistureproof, which increases the aesthetics and value of the product
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
changhe
-
Weight:
-
3 KG
-
Certification:
-
CE
-
Product name:
-
automatic l bar sealer shrink wrapping machine
-
Function:
-
Film Packaging Machine
-
Film material:
-
POF PVC PP
-
Speed:
-
10~15 Times/min
-
Machine type:
-
Auto Wrapping Machine
-
Feature:
-
Hign Speed
-
Used for:
-
Luggage-baggage-suitcase-cartons
-
Advantage:
-
Easy Operation
-
Keyword:
-
Film Wrap Equipment
-
Packing material:
-
Shrink Film
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, case
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Pneumatic
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
changhe
-
Weight:
-
3 KG
-
Certification:
-
CE
-
Product name:
-
automatic l bar sealer shrink wrapping machine
-
Function:
-
Film Packaging Machine
-
Film material:
-
POF PVC PP
-
Speed:
-
10~15 Times/min
-
Machine type:
-
Auto Wrapping Machine
-
Feature:
-
Hign Speed
-
Used for:
-
Luggage-baggage-suitcase-cartons
-
Advantage:
-
Easy Operation
-
Keyword:
-
Film Wrap Equipment
-
Packing material:
-
Shrink Film
Product Description

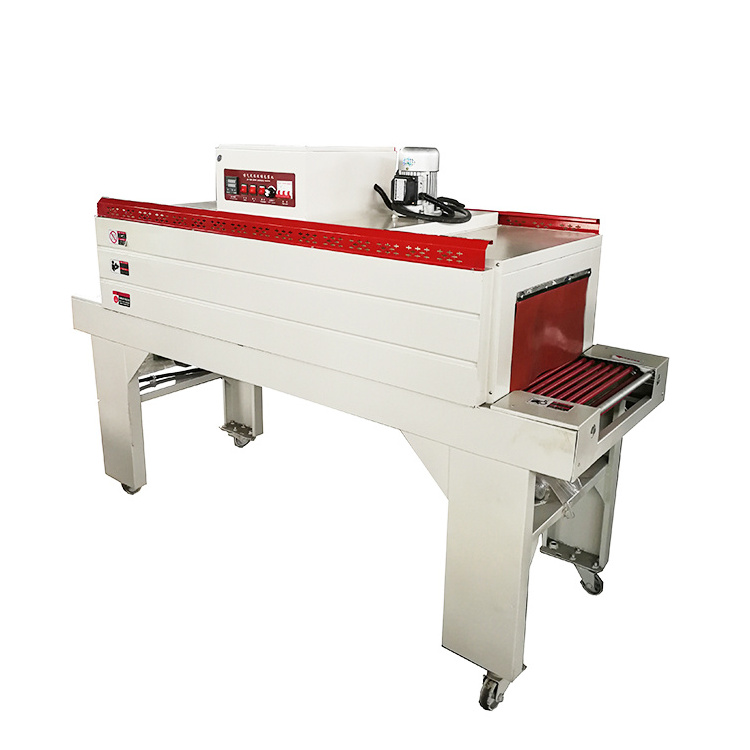

This set of equipment consists of a jet-type inner-cycle heat shrinking machine and a fully automatic film sealing and cutting machine. The two parts are independent of each other and do not interfere with each other. The product to be packed enters the equipment from the right side of the set of equipment to the left conveyor belt, and the product is packed out.
This set of equipment can be seamlessly connected to the factory's assembly line to achieve unmanned automatic packaging.
|
Model
|
FQL-5545A
|
|
Power supply
|
220V50HZ
|
|
Power
|
2.2KW
|
|
Package dimensions
|
L（100-450）*W（60-350）*H（5-120）MM
|
|
Production capacity
|
15-30/min
|
|
Machine size
|
1700*930*1460mm
|
|
Furnace cavity size
|
L1500*W450*H220MM
|
|
Recommended packing height
|
≤80mm
|
|
Total Weight
|
300kg
|
|
Model
|
BS-4522
|
|
Power supply
|
380V 50Hz
|
|
Power
|
12KW
|
|
Package dimensions
|
W400*H180mm
|
|
Production capacity
|
20-40/min
|
|
Furnace cavity size:
|
1500*450*220mm
|
|
Machine size
|
1910×700×1300mm
|
|
Total Weight
|
230kg
|
|
Recommended packing height
|
≤180mm
|
Application
-
Main features
Working principle
It uses a shrink film to wrap the product or package outside, and then heats it to shrink the packaging material to tightly wrap the product or package. It fully displays the displayability of the item to increase its aesthetics and value; at the same time, the packaged item can be sealed. , Moisture-proof, pollution-proof. It also protects the articles from external impacts and has certain cushioning properties. In addition, it can reduce the possibility of the product being dismantled and stolen. When the shrink film shrinks, it generates a certain tensile force, so it can wrap a group of items to be packed tightly. It plays the role of strapping the straps, and is especially suitable for the collection of multiple groups of items and pallet packaging, so this product can be widely used for the packaging of various small products.
Detailed Images
This shrink wrapping machine also widely used in foodstuff, drinks, printing, pharmaceutical, floor and other industries shrink packaging.
This set of equipment can be seamlessly connected to the factory's assembly line to achieve unmanned automatic packaging.
Membrane unit & Coated alloy knife
Use transparent foldable membrane.for detais of membrane installation,please refer to the instruction manual.
Sealing and cutting knife with teflon coating ,sealing frame with alloy steel ,not easy to deformation.
Sealing and cutting knife with teflon coating ,sealing frame with alloy steel ,not easy to deformation.
Protection cover & Pneumatic device
The sealing and cutting part is equipped with an organic protective cover to protect the operator from contact with the sealing and cutting part.
The air inlet connects the gas here ,and controls the automatic lifting and sealing of the cutter.
Height adjustment handwheel &Blowing mouth
Twist the hand wheel ,which can adjust the height of the table to accommodate items that do not go through a package.
90 degree angle blowing in gas to blow away the edges of the film to avoid the edge folding.
Loading module handles .When installing the film,turn the handle to open the film device for installation.
Loading module handles & Fixed link
When installing the film, turn the handle to open the film device for installation.
It can play the role of goods positioning and guiding to make sealing and cutting eaaect.
Sample
Recommend Products
Packing&Shipping
PACKAGE:
Standard export wooden case packing. Machine packing inside is plastic films and outside is fumigation wooden case. Our wooden case is very strong,it can bear long time shipping on the sea. And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
DELIVERY TIME: 3-30 days after confirming order,detail delivery date should be decided according to production season and order quantity.
For machines are big and heavy parcel, and different country with different delivery cost,
DELIVERY TIME: 3-30 days after confirming order,detail delivery date should be decided according to production season and order quantity.
For machines are big and heavy parcel, and different country with different delivery cost,
So
we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express. The price show on our website just the machine price, please contact us before you place order.
