Quick Details
-
Brand Name:
-
AFT
-
Model Number:
-
AFT-RD701
-
Suitable for Medium:
-
Liquid, solid powder
-
Product name:
-
4-20mA Ship fuel tank radar level sensor
-
Application:
-
Liquid and solid powder measure,complicated process conditions
-
Explosion-proof Grade:
-
Exib IIC T6 Gb/Exd IIC T6 Gb
-
Measuring Range:
-
30 meters
-
Frequency:
-
500MHz-1.8GHz
-
Process Temperature:
-
(-40~250)℃
-
Process Pressure:
-
(-0.1~4)MPa
-
Measurement Precision:
-
±10mm
-
The signal Output:
-
(4 ~ 20) mA/HART
-
Certification:
-
ISO, CE
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
18 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AFT
-
Model Number:
-
AFT-RD701
-
Suitable for Medium:
-
Liquid, solid powder
-
Product name:
-
4-20mA Ship fuel tank radar level sensor
-
Application:
-
Liquid and solid powder measure,complicated process conditions
-
Explosion-proof Grade:
-
Exib IIC T6 Gb/Exd IIC T6 Gb
-
Measuring Range:
-
30 meters
-
Frequency:
-
500MHz-1.8GHz
-
Process Temperature:
-
(-40~250)℃
-
Process Pressure:
-
(-0.1~4)MPa
-
Measurement Precision:
-
±10mm
-
The signal Output:
-
(4 ~ 20) mA/HART
-
Certification:
-
ISO, CE

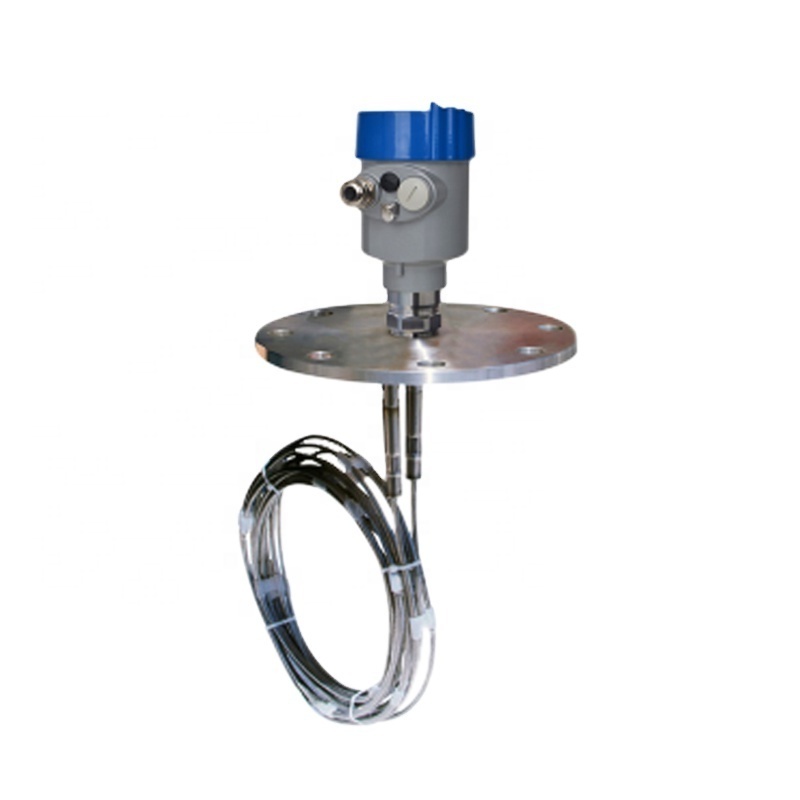

4-20mA Ship fuel tank radar level sensor
Introduction
Reflected pulse signal along the cable or rod probe type transmit to the instrument electronic circuit parts, the microprocessor processes the signal, identify the microwave pulse echo generated in the material surface. Correct
identification of the echo signal are completed the implementation by the pulse software,D, the distance from the material surface and the pulse travel time T is proportional:
D=C×T/2
Where C is the speed of light b ecause the empty distance E is known, the level L is:
L=E-D
By entering the empty height of E (= zero), full tank height F (= hundred) and the application to set some parameters, application parameters will automatically adapt the instrument to measure the environment, corresponding to the 4 -20mA output.
