Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DragonPower
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 300 ℃
-
After-sales Service Provided:
-
Video technical support
-
Temperature endurance:
-
100-1200 degree
-
Leakage current:
-
<0.5MA
-
Insulation resistance:
-
≥5M
-
Ground resistance:
-
<0.1
-
Dimension:
-
made to order
-
Power:
-
400-1200W
-
Sheath Material:
-
SUS 304/316/321 Incoloy 840
Quick Details
-
Type:
-
cartridge heater, Electric Cartridge Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DragonPower
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1 KG
-
Working Temperature Range:
-
1 - 300 ℃
-
After-sales Service Provided:
-
Video technical support
-
Temperature endurance:
-
100-1200 degree
-
Leakage current:
-
<0.5MA
-
Insulation resistance:
-
≥5M
-
Ground resistance:
-
<0.1
-
Dimension:
-
made to order
-
Power:
-
400-1200W
-
Sheath Material:
-
SUS 304/316/321 Incoloy 840

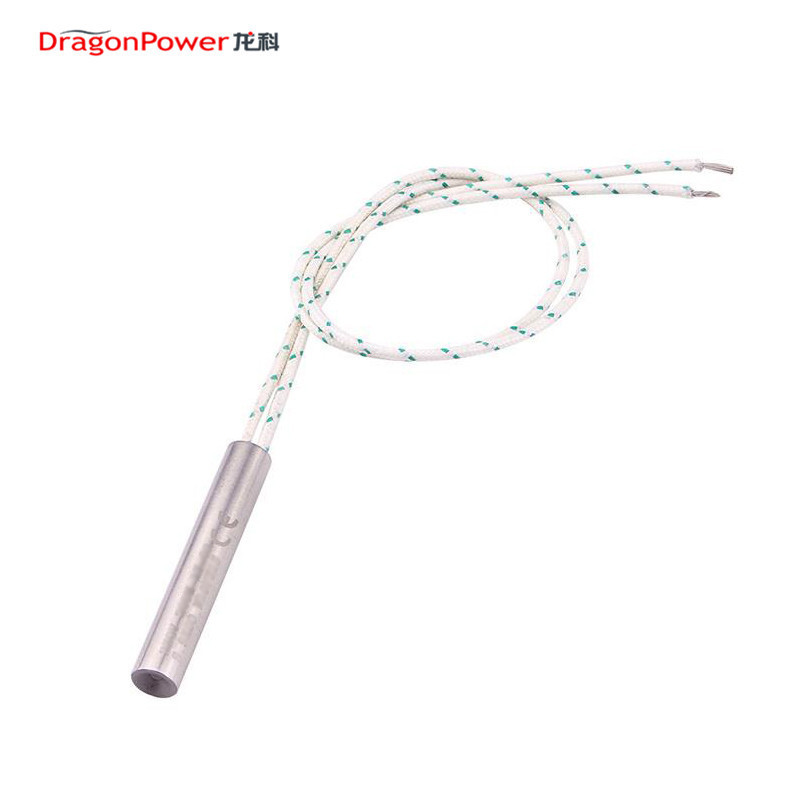

Electric Heating Rod Description:
1. Electric heating rod consists of a cylindrical stainless steel tube and thus prevents itself from corrosion. The watt density can reach 25 W/cm2 and the operating temperature can go up to 800°C (1472°F)
2.The heating rod is filled with magnesium oxide and compressed to avoid short-circuit. There is a heating wire inside which is wound into a ceramic core. The number of coils varies depending on the power.
3. Various heating rods are available. We develop and manufacture cartridge heaters according to your special demands .
|
Model |
Dimension(mm) |
Voltage(V) |
Power(W) |
Key Technical Indexes |
|
LK-DD-Φ15Χ80 |
Φ15Χ80 |
380 |
400 |
1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current:<0.5MA 3.Insulation resistance:≥5M 4.Ground resistance:<0.1 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance:100-1200°C |
|
LK-DD-Φ20Χ155 |
Φ20Χ155 |
380 |
800 |
|
|
LK-DD-Φ16Χ200 |
Φ16Χ200 |
220 |
1000 |
|
|
LK-DD-Φ20Χ200 |
Φ20Χ200 |
220 |
1200 |
|
|
Note: Other models are available according to your specifications. Please refer to the Order Guide |
||||
Electric Heating Rod Specifications:
|
Diameter |
3mm to 30mm, etc. |
|
Length |
Customized |
|
Wire length |
Customized |
|
Leads type |
Direct line, SUS 304 braided, metal hose, etc. |
|
Voltage Supply |
12V to a maximum of 480V |
|
Total capacity |
customized |
|
Resistance Tolerance |
+10% - 5% (closer tolerances are available upon special request) |
|
Heating length |
Customized |
|
Sheath Material |
SUS 304/316/321 Incoloy 840 |
|
Insulation material |
Magnesium Oxide Powder |
|
Maximum Temperature |
800 °C
|
Electric Heating Rod Applications:
- Food processing
- Plastic moulds
- Medical equipment
- Hot stamping
- Liquid immersion
- Packaging equipment
- Labeling & Sealing
- Dies & platens
- Injection molding
- Nuclear industry
- Car industry
Packaging & Shipping:
Packaging: Heating rod in plywood case outside if needed.
Shipping : 1.small quantity by DHL,FEDEX. 2.Bulk goods by Sea Freight. 3. Arranged to your order.
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
( with overseas sevice available)
5. Simple ordering procedure: Email, fax or mail.
