Quick Details
-
inputs:
-
16xHD MI or HDSDI or HD MI/AV/VGA/YPbPr
-
video encoding:
-
mpeg4 avc/h.264 and h.265 mpeg-h
-
Audio encoding:
-
AAC,MP3
-
Protocol:
-
RTMPS RTMP TS RTSP(UDP,TCP) TS HTTP UDP TS
-
Application:
-
cable tv ip , iptv
-
Product name:
-
H.265 IPTV Encoder
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibsys
-
Model Number:
-
Magicbox HD416S
-
inputs:
-
16xHD MI or HDSDI or HD MI/AV/VGA/YPbPr
-
video encoding:
-
mpeg4 avc/h.264 and h.265 mpeg-h
-
Audio encoding:
-
AAC,MP3
-
Protocol:
-
RTMPS RTMP TS RTSP(UDP,TCP) TS HTTP UDP TS
-
Application:
-
cable tv ip , iptv
-
Product name:
-
H.265 IPTV Encoder

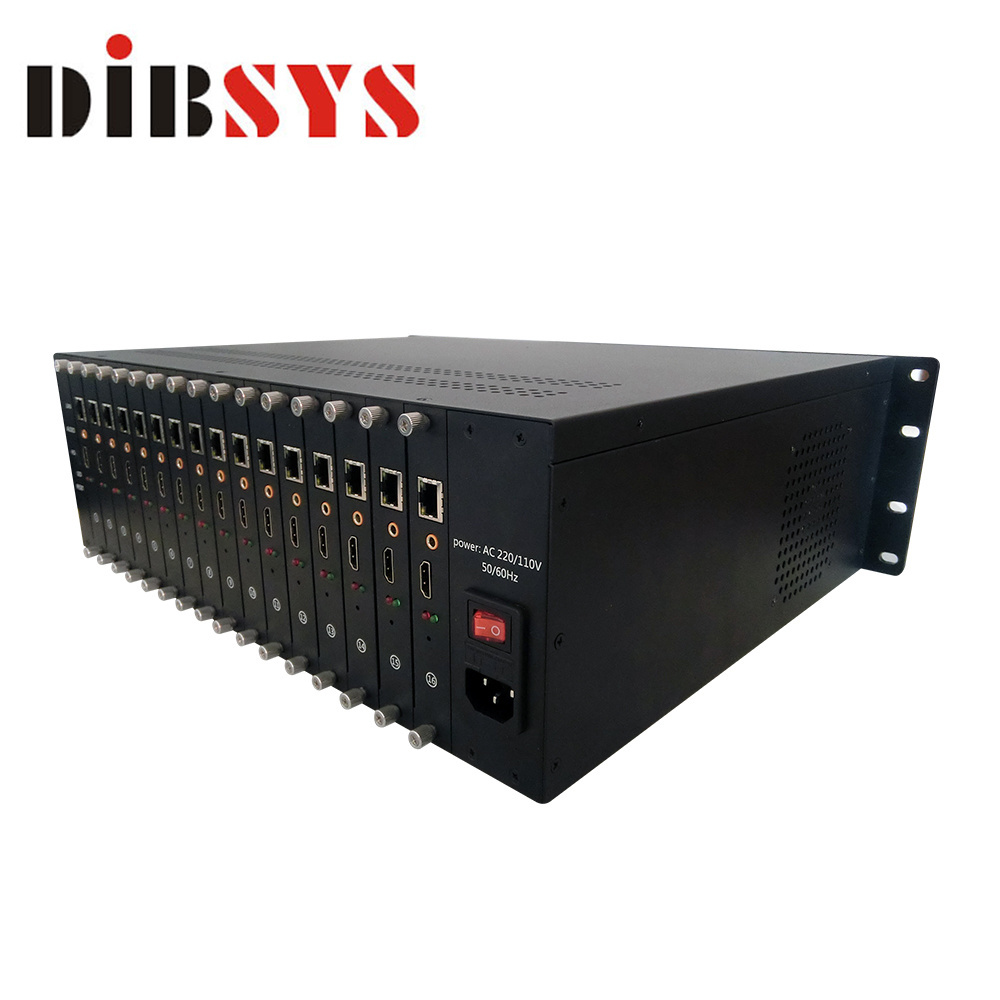

16CH HD H.265 IPTV Encoder RTMPS Facebook with Streaming server for OTT System
Magicbox HD4 S series HD-MI/HD-SDI input, it is the world's New Generation HEVC H.265/H.264 hardware encoder in a professional grade, compact streaming appliance. Its advanced HEVC compression enables users to stream broadcast quality 1080p video with up to 50% bandwidth savings compared to today's H.264 standards.
Magicbox HD4 S series boasts an all-hardware compression chip for real time encoding with advanced audio and meta data handling – all packaged in a portable device with low power consumption, which makes it possible to take next generation HEVC encoding from the server rooms into the field for professional and industrial applications with easy integration to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.
Next-Generation HEVC/H.265 Streaming Reduces IPTV Bandwidth Costs
Whether it's from live news broadcasting in the field, Point-to-Point contribution of HD video, live streaming from or within sports venues or fast move picture - demand for high quality real-time video anywhere, anytime is growing. The increase of video services translates to rising expenses for purchasing more satellite, cellular or other dedicated network bandwidth. The Encoder’s cutting edge HEVC compression and streaming capabilities allows broadcasters, IPTV providers, A/V teams, corporate IT to reduce Operating Expenses (OPEX) for video streaming projects while managing demand for more video services and requests for higher quality video on existing bandwidth capability.
Flexible Connectivity Options with H.264 Backward Compatibility
A built-in video matrix enables routing of video sources to both the HEVC and H.264 compression cores for generating streams in both H.265 and H.264 formats. The on-board hardware scaler can be used for real-time downscaling, frame-sampling and flexible cropping options delivering the most optimized video output for your application.
Features
- HD MI (HDCP), Blue Ray HD, HD-SDI input
- Number of input channels: Single, Quad, Sixteen
- Full HD 1080P60, 1080I60, 1080P50, 1080I50, 720P60, 720P50, 576P, 576I, 480P, 480I Multiple resolution HD MI signal input
- H.264, H.265, BP/MP/HP hardware encoding
- 3 streams out, Each HD MI input source simultaneously support up to 1080P
- Support multi protocol output, RTMPS, RTSP, RTP, RTMP, HLS(option) one of HTTP/UDP multicast/UDP unicast protocol out simultaneously
- support insert picture LOGO, PNG format.
- AAC, MP3, G.711 and other audio coding format
- Separate audio output supported
- Adaptive aspect ratio only in H.264 encoding
- Next-generation HEVC / H.265 compression reduces network bandwidth by up to 50% compared to H.264
- Support RTMP push flow, (classic mode and URL mode) , support IP address and domain names, ONVIF protocol
- Supports both HEVC and H.264 – built for the future without losing support for legacy receivers/decoders
- Web page video preview function, facilitate the implementation of adjustment
- Support RTMPS, RTMP, RTSP, RTP, HTTP, HLS(option) UDP multicast, UDP unicast and other real time flow and TS flow
- Network interface using 1000M full duplex mode
- HD-to-SD downscale conversion
- OSD supported, rolling captions
- Timing reboot function
- Support CBR and VBR mode, 50Kbps ~ 12Mbps
- USB power supply supported, 5V or 3.7V
- Low power design
- WEB Management
- Easy-to-Use System Management
Main Applications
- IPTV, conference, remote education, Network radio, Live audio
- Backhaul/Monitoring for Broadcasters
- VOD, multiscreen headend
- Point-to-Point video contribution
- Streaming Full Motion Video to Desktop, TV and Mobile Devices over bandwidth-limited pipes
D iagram
Technical Specifications
|
Video Inputs |
||
|
1*HD-MI /HD-SDI per module 1/4/16 channels optional |
||
|
Progressive
1280x720 @ 60/59.94/50 Frames per second
Interlaced
Video Input Format is Auto-Detected |
||
|
Audio Inputs |
||
|
Processes first two channels of audio embedded in HD-MI input signal
|
||
|
Outputs |
||
|
IP Output type |
RJ45 providing 1000Base-T Ethernet with Static or DHCP addressing; |
|
|
Protocol |
RTMP/RTSP/HTTP/UDP/HLS/RTP/ONVIF |
|
|
Multi-Screen |
Up to 3 channels High def. and any resolution of streams simultaneously out per |
|
|
Users Interface |
||
|
Computer Based control |
HTTP via standard PC or web browser using Command Center. The simple Control API and SDK is also available to programmers to create their own application |
|
|
Pre-processing |
||
|
Image setting |
Video adjustments (Brightness, contrast, Saturation, Hue) |
|
|
Frame rate |
from 5fps to 45fps |
|
|
Image insertion |
OSD insertion |
|
|
Enhancement filter |
Deinterlacing;Noise reduction; Sharpening; Visual Optimizing; Filtering |
|
|
HEVC/H.265 Video Encoding |
||
|
Bitrate mode |
Constant (CBR), Variable (VBR) |
|
|
First stream |
1920*1080, 1280*720, 1024*576, 850*480, 720*576, 704*576, 640*480, 640*360, auto |
|
|
Second Stream |
1280*720, 800*450, 720*576, 720*408, 704*576,640*480, 640*360, 352*288, 320*240, 320*180, auto | |
|
Third stream |
720*576, 720*408, 704*576,640*480, 640*360, 352*288,320*240, 320*180, auto | |
|
H.265 Encode |
MPEG-H HEVC (ISO/IEC 23008-2)
Main Profile Level 4.1 (4:2:0 8-bits) |
|
|
H.264/MPEG-4 Part 10 (AVC) Video Encoding |
||
| Bitrate mode | VBR, CBR | |
| First stream | 1920*1080, 1280*720, 1024*576, 850*480, 720*576, 704*576, 640*480, 640*360, auto | |
| Second Stream | 1280*720, 800*450, 720*576, 720*408, 704*576,640*480, 640*360, 352*288, 320*240, 320*180, auto | |
| Third stream | 720*576, 720*408, 704*576,640*480, 640*360, 352*288,320*240, 320*180, auto | |
|
H.264 Encode |
MPEG-4 AVC/H.264 (ISO\IEC 14496-10 MPEG-4 AVC – Rec. ITU-T H.264) Baseline Profile L3 Main Profile L3 and L4 High Profile L4 and L4.2 |
|
|
Bitrate of Res.
|
720x576 (D1) |
800-1500kbps |
|
1080x720p (HD) |
1200-2500kbps |
|
|
1920x1080p (Full HD) |
3500-6000kbps |
|
|
Video Bitrate |
16kbps to 12Mbps | |
| Audio Encoding | ||
|
Audio encoding |
AAC, MP3 |
|
|
Bit Rates |
Range from 48 kbps to 256 kbps, Adjustable |
|
|
Resample Rate |
32Khz, 44.1Khz |
|
|
Audio Channel |
L+R, L, R |
|
|
Control |
||
| 1000M Base T Ethernet, RJ45,auto-negotiation | ||
| Management via Web | ||
|
Language English/Chinese |
||
|
Environment |
||
|
Power Supply |
12V 2A (compact), 110V/220V (1/3RU) |
|
|
Power consumption |
<5W (compact), 80W (1/3RU) |
|
|
Operation temperature |
0 -50°C (32 -122°F) | |
|
Storage temperature |
-40-70°C (-40-158°F) | |
|
Dimensions |
180x110x50 mm (compact), 430mm x 250mm x 45mm (1RU) 560*450*270 mm (3RU) |
|
|
Ordering Information |
||
| 1 channel HD-MI input --- Magicbox HD401S | ||
| 4 channels HD-MI inputs --- Magicbox HD404S | ||
| 16 channels HD-MI inputs --- Magicbox HD416S | ||
