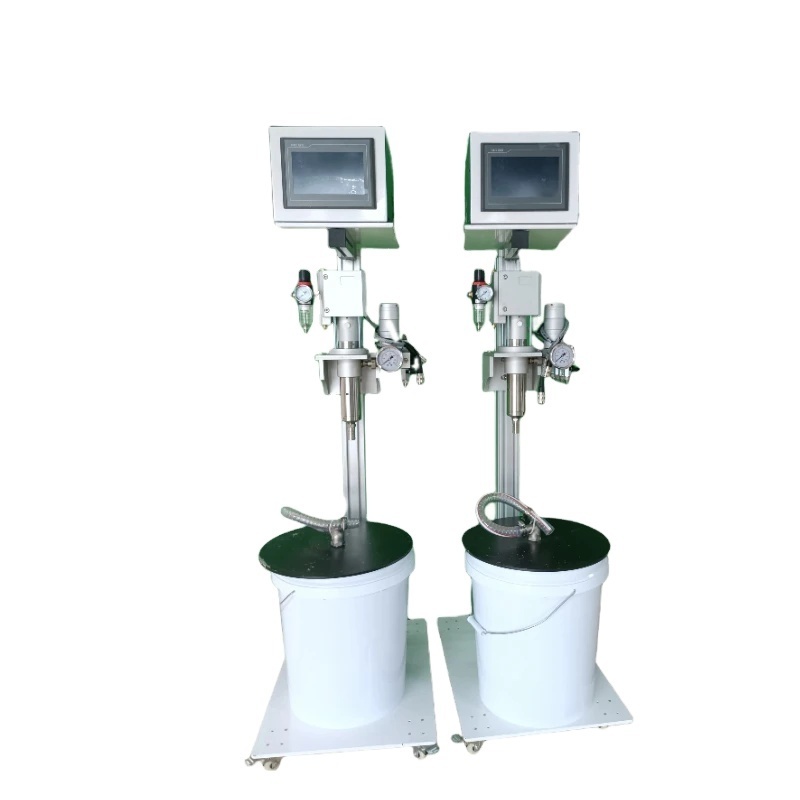

It is a glue spray program control system equipped with a folder gluer. It can be flexibly installed on the folder gluer according
to the individual requirements of the product, breaking through the structure and function of the original folder gluer, realizing
precise dispensing and producing more types of boxes. The machine uses cold glue glue. The machine runs at high speed, sprays
accurately, can be independently adjusted, operates cleanly, and saves glue. Simple and Convenient to Operate.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
150*45*65cm
-
Weight:
-
50 KG
Quick Details
-
Voltage:
-
220v
-
Place of Origin:
-
chinq
-
Brand Name:
-
NT
-
Dimension(L*W*H):
-
150*45*65cm
-
Weight:
-
50 KG
|
Maximum working frequency
|
500points/sec
|
|
Maximum speed
|
300m/min
|
|
Spray precision
|
±1mm
|
|
Speed
|
100m/min
|
|
Pressure input
|
2-8Bar
|
|
Number of gun
|
2(optional 4)
|
|
The electric quantity
|
2(optional 4)
|
|
Glue
|
Cold glue
|
|
Voltage
|
AC220V 50-60HZ
|
|
Machine size
|
1330*610*500mm
|
|
Weight
|
75kg
|
performance characteristics
* Precise spray glue. It has the function of precise glue spraying at high speed, and the accuracy is plus or minus 1mm.
* Independent regulation. Each nozzle can individually adjust the amount of glue through the knob, and switch the dot and line freely.
* Operation is clean. The nozzle is completely broken, no glue leaks, and no glue hanging.
* Save glue. On the premise of ensuring the production quality, the glue can be saved to the greatest extent.
Product structure
Parts Introduction
convenient.Computer program control system supports English operation interface.
