Quick Details
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
3
-
Input Voltage(V):
-
AC100-240V 50-60Hz
-
Lamp Luminous Flux(lm):
-
6000
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-10 - 50
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAYU
-
Emitting Color:
-
RGB full color
-
Size:
-
220*156*135mm
-
G.W:
-
3.5KG
-
Scanner:
-
20Kpps High Speed Scanners
-
Red power:
-
100mW@638nm
-
Green Power:
-
100mW@532nm
-
Blue Power:
-
800mW(450nm)
-
Divrgence angle:
-
25°
-
Play mode:
-
DMX512,PC control ,sound active ,auto,master/slave
-
Product name:
-
1w rgb animation laser light
Quick Details
-
Color Temperature(CCT):
-
2700K (Soft Warm White)
-
Type:
-
LASER LIGHTS
-
Application:
-
Theme Park
-
Warranty(Year):
-
1-Year
-
Product Weight（kg）:
-
3
-
Input Voltage(V):
-
AC100-240V 50-60Hz
-
Lamp Luminous Flux(lm):
-
6000
-
CRI (Ra>):
-
90
-
Working Temperature(℃):
-
-10 - 50
-
Working Lifetime(Hour):
-
10000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAYU
-
Emitting Color:
-
RGB full color
-
Size:
-
220*156*135mm
-
G.W:
-
3.5KG
-
Scanner:
-
20Kpps High Speed Scanners
-
Red power:
-
100mW@638nm
-
Green Power:
-
100mW@532nm
-
Blue Power:
-
800mW(450nm)
-
Divrgence angle:
-
25°
-
Play mode:
-
DMX512,PC control ,sound active ,auto,master/slave
-
Product name:
-
1w rgb animation laser light
Specification
|

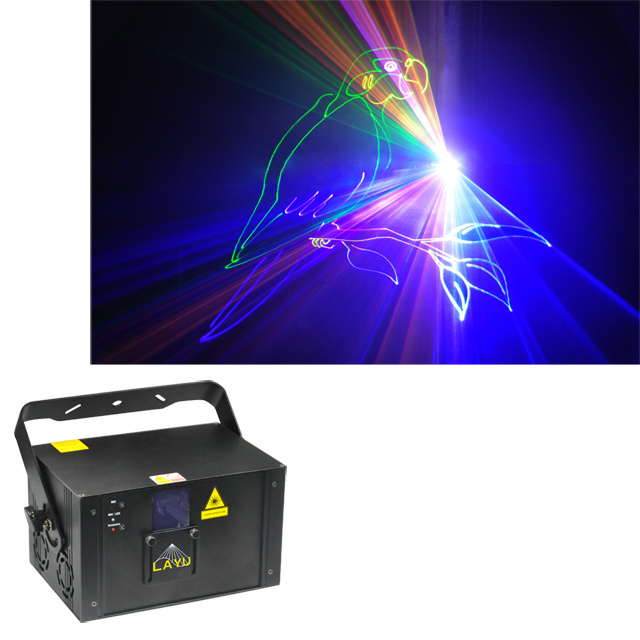

LAYU laser factory 1W 2W RGB ILDA animation laser light for DJ nightclubs party laser show system
|
|
|
|
Model
|
AH10RGB/AH20RGB
|
|
|
Effect
|
hundres animation RGB full color patterns
|
|
|
Play mode
|
Auto, Sound active,DMX512, Master/slave
|
|
|
Size
|
220*156*135mm
|
|
|
G.W
|
3.5KG
|
|
Product pictures
Products Description
◆Features:
1. Two floor designs. The optical components is at the top floor and the electronic components are at the first floor.
1) Optical floor is dust proof designs so as to save your maintenance costs even in the dusty area.
2)Electronic floor is equiped with 2 high-speed fans, so as to blow away the heat. Also there is a U shape heat sink under the diodes, so that can keep the optical floor in favorite working temperature to prolong the life of diodes.
2. Compacted designs(22*16*14cm),much lighter(3.5kg),easy to carry out or install and save delivery costs too.
3.RGB lasers are small beam and divergence. Beam diameter is <4mm, divergence is <1.2mrad.
4.More than 128 built-in graphics and beam effect patterns, such as cartoon, person text, words, etc; with the function of unique blanking, frequently flashing, rotating, movement, billowing, zoom (+/-), drawing, speed and color, etc. Compact, smaller and lighter designs, more flexible installations, and save your delivery costs sharply.
◆ Play Mode: ILDA PC Control, DMX512 (12 channels), Sound Active, AUTO-Beam, AUTO-Animation, Master/Slave
◆ PC control: Compatible ILDA laser show software with ILDA interface. Use electronic switches to conversion full ILDA signal
◆ Safety configure: Single Beam Protection System(can switch ON or OFF; single beam protection system is very important system for high power laser lights), laser ON-OFF key switch, laser remote interlock, flying rings bolt.
◆ Safety Features: Automatically identify ILDA or built-in program mode. Master/slave mode, DMX512 and PC control mode, will shut off laser automatically without trigger signal. Design according to security and good performance, safer to human and environment. When the scanner failure, the safety system will shut off the laser signal to avoid single beam automatically.
◆ Power Supply: 100~250V, 50/60HZ, 30W
◆ Applicable for Disco, Clubs, KTV, Pub, Bar, family party, etc
1. Two floor designs. The optical components is at the top floor and the electronic components are at the first floor.
1) Optical floor is dust proof designs so as to save your maintenance costs even in the dusty area.
2)Electronic floor is equiped with 2 high-speed fans, so as to blow away the heat. Also there is a U shape heat sink under the diodes, so that can keep the optical floor in favorite working temperature to prolong the life of diodes.
2. Compacted designs(22*16*14cm),much lighter(3.5kg),easy to carry out or install and save delivery costs too.
3.RGB lasers are small beam and divergence. Beam diameter is <4mm, divergence is <1.2mrad.
4.More than 128 built-in graphics and beam effect patterns, such as cartoon, person text, words, etc; with the function of unique blanking, frequently flashing, rotating, movement, billowing, zoom (+/-), drawing, speed and color, etc. Compact, smaller and lighter designs, more flexible installations, and save your delivery costs sharply.
◆ Play Mode: ILDA PC Control, DMX512 (12 channels), Sound Active, AUTO-Beam, AUTO-Animation, Master/Slave
◆ PC control: Compatible ILDA laser show software with ILDA interface. Use electronic switches to conversion full ILDA signal
◆ Safety configure: Single Beam Protection System(can switch ON or OFF; single beam protection system is very important system for high power laser lights), laser ON-OFF key switch, laser remote interlock, flying rings bolt.
◆ Safety Features: Automatically identify ILDA or built-in program mode. Master/slave mode, DMX512 and PC control mode, will shut off laser automatically without trigger signal. Design according to security and good performance, safer to human and environment. When the scanner failure, the safety system will shut off the laser signal to avoid single beam automatically.
◆ Power Supply: 100~250V, 50/60HZ, 30W
◆ Applicable for Disco, Clubs, KTV, Pub, Bar, family party, etc
|
Item No.
|
Power
|
Scanner
|
Size
|
G.W
|
|
AH10RGB
|
1W
|
20KPPS,±25°
|
220*165*135mm
|
3.5kg
|
|
AH20RGB
|
2W
|
20KPPS,±25°
|
220*165*135mm
|
3.5kg
|
