Quick Details
-
Dimension(L*W*H):
-
2660*2430*2800mm
-
Weight:
-
2800 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Jaw Crusher Machine
-
Color:
-
Customer Requirement
-
packing:
-
wooden box
-
Motor power:
-
15-110kw
-
Max feeding size:
-
630mm
-
Voltage:
-
220v/380v/405v/Customized
-
Keyword:
-
Fine Stone Jaw Crusher
-
Usage:
-
Crushing Work
-
Broken Raw material:
-
Stones Rocks Ores
-
Machine Material:
-
Cast Steel
Quick Details
-
Application:
-
quarry, mining, metallurgy
-
Capacity(t/h):
-
Max.320t/h
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
2660*2430*2800mm
-
Weight:
-
2800 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Jaw Crusher Machine
-
Color:
-
Customer Requirement
-
packing:
-
wooden box
-
Motor power:
-
15-110kw
-
Max feeding size:
-
630mm
-
Voltage:
-
220v/380v/405v/Customized
-
Keyword:
-
Fine Stone Jaw Crusher
-
Usage:
-
Crushing Work
-
Broken Raw material:
-
Stones Rocks Ores
-
Machine Material:
-
Cast Steel
Products Description
Stone Jaw Crusher Production Equipment
Jaw crusher is widely used in mining, smelting and other industries. It has the advantages of large crushing ratio, uniform product size, reliable performance and low operating costs.
Jaw crusher machine
Product Structure
Product details
Double shell Side liner and counterattack plate can effectively protect the casing.
Pure copper motor.High quality motor, good quality and durable.

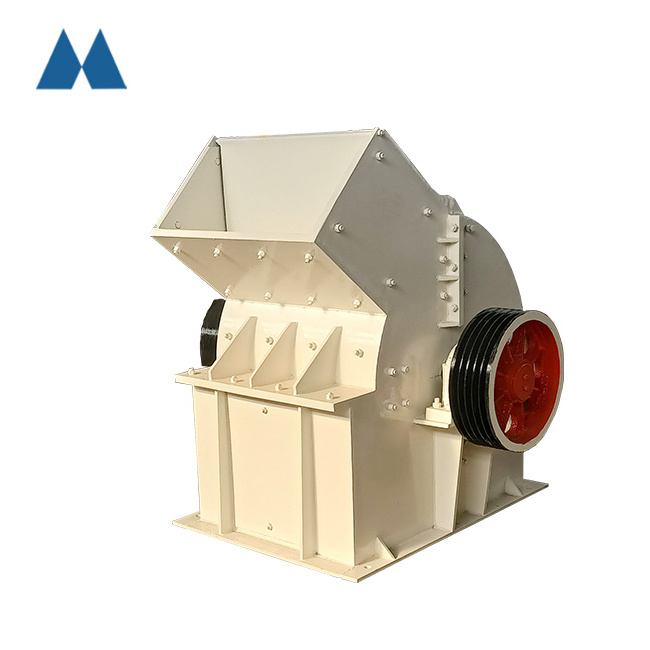

Crusher Hammer.Advanced technology, excellent quality Crusher screen bottom
At the bottom of the hammer crusher, there are sieve bars with adjustable spacing, through which the particle size of the finished product can be controlled.
Product Display
Various Models
|
Model
|
PE-250×400
|
PE-400×600
|
PE-500×750
|
|
Feeding in opening size (mm)
|
250×400
|
400×600
|
500×750
|
|
Max.feedsize(mm)
|
210
|
340
|
425
|
|
Doscharge size(mm)
|
20-60
|
40-100
|
50-100
|
|
Capacity(t/h)
|
5-20
|
16 -60
|
40-110
|
|
Eccentric shaft speed (r/min)
|
300
|
275
|
275
|
|
Motor power (kw)
|
15
|
30
|
55
|
|
Weight (t)
|
2.8
|
7
|
12
|
|
Overall dimension (L×W×H)(mm)
|
1300×1090×1270
|
1730×1730×1630
|
1980×2080×1870
|
