Quick Details
-
Keyword:
-

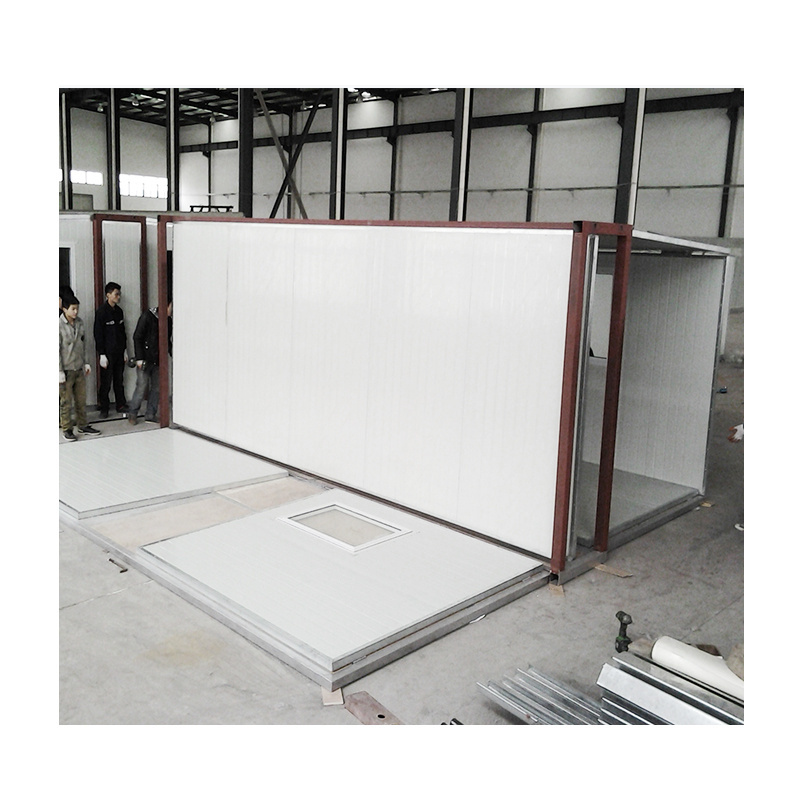

Mobile home
-
Main structure:
-
40m/s wind rated light steel frame
-
exterior cladding:
-
PU sandwich cladding with decoration
-
interior lining:
-
high quality wall lining
-
Door:
-
high quality steel door
-
windows:
-
high quality PVC windows
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deepblue
-
Model Number:
-
DPBL-HR- MH03
-
Keyword:
-
Mobile home
-
Main structure:
-
40m/s wind rated light steel frame
-
exterior cladding:
-
PU sandwich cladding with decoration
-
interior lining:
-
high quality wall lining
-
Door:
-
high quality steel door
-
windows:
-
high quality PVC windows
|
No.
|
Item
|
Material
|
Specification
|
|
1
|
Foundation
|
Fixing to foundation
|
Chemical bolt
|
|
2
|
Structure
|
Steel frame wall
|
0.75/0.95/1.15mm steel wall
|
|
|
|
Roof truss
|
0.75/0.95/1.15mm steel truss
|
|
|
|
Joist (chassis)
|
0.75/0.95/1.15mm steel joist
|
|
3
|
Roofing system
|
Batten
|
35mm batten
|
|
|
|
Vapor barrier
|
Normal vapor barrier
|
|
|
|
Tile
|
Optional
|
|
|
|
Insulation
|
Glasswool
|
|
4
|
Ceiling system
|
Batten
|
22mm batten
|
|
|
|
Ceiling
|
Gypsum/MGO board, etc.
|
|
|
|
Insulation
|
Glasswool
|
|
5
|
Exterior wall
|
Ext. wall cladding
|
Optional
|
|
|
|
Vapor barrier
|
Normal vapor barrier
|
|
|
|
Insulation
|
Glasswool
|
|
6
|
Interior wall
|
Lining
|
Optional
|
|
|
|
Insulation
|
Glasswool
|
|
7
|
Floor system
|
Underneath of floor
|
CFC/ALC board, etc.
|
|
|
|
Flooring
|
Optional
|
|
|
|
Insulation
|
Glasswool
|
|
8
|
Kitchen
(if in plan)
|
Kitchen cabinet
|
Optional
|
|
|
|
Counter top
|
Optional
|
|
|
|
Sink
|
Optional
|
|
9
|
Bathroom
(if in plan)
|
Toilet
|
Optional
|
|
|
|
Washbasin
|
Optional
|
|
|
|
Shower
|
Optional
|
|
10
|
Doors and windows
|
Exterior door
|
Optional
|
|
|
|
Interior door
|
Optional
|
|
|
|
Window
|
Optional
|
Light Gauge Steel Structure
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
|
Number
|
Design Code
|
|
1
|
AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
|
|
2
|
AS/NZS 4600 Australia/New Zealand Standard-Cold-Formed steel structure jointly published by Standards Australia and Standards New Zealand.
|
|
3
|
BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
|
|
4
|
ENV1993-1-3 means Euro code3: Design of steel structures, Part 1.3: General rules, supplementary rules for cold-formed thin gauge members.
|
