Quick Details
-
Holding force:
-
60kg(120Lbs)
-
Lock size:
-
80*37*24 mm
-
Suction plate size:
-
70*33*9 mm
-
Application:
-
File cabinet, display cabinet
-
Door signal:
-
No
-
Lock signal:
-
No
-
Working current:
-
120mA
-
Security type:
-
fail safe/power off to open
-
Weight:
-
0.6kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TK
-
Product Name:
-
60kg mini electromagnetic lock
-
Holding force:
-
60kg(120Lbs)
-
Lock size:
-
80*37*24 mm
-
Suction plate size:
-
70*33*9 mm
-
Application:
-
File cabinet, display cabinet
-
Door signal:
-
No
-
Lock signal:
-
No
-
Working current:
-
120mA
-
Security type:
-
fail safe/power off to open
-
Weight:
-
0.6kg

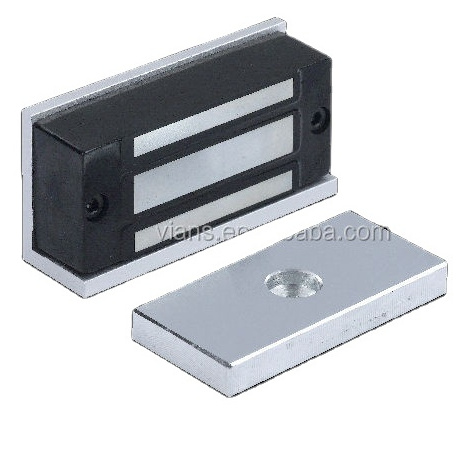

TK-60A mini 60kgs 120 lbs electronic magnetic lock for single door
electromagnetic lock door magnetic lock
VI-60A is a mini single electric lock, it is designed for showcase, cabinet door and easy to install .Accessories are available for inward door, frameless glass door and narrow doorframe door. Special anti-residual magnetism designed.
Specification:
|
Size: 8 0Lx37Wx24H(mm) |
|
Armature Plate Dimension: 7 0Lx33Wx9H(mm) |
|
|
Holding Force: 6 0kg(120Lbs) |
|
|
Input Voltage: 12V DC+10% |
|
|
Current: 12V/120mA |
|
|
Suitable: file/display cabinet |
|
|
Signal output: No |
Feature:
*3 Years Warranty
*CE/FCC/RoHS certifications
*Pin-type PCB, very good for maintainance
*High quality silicon-steel plate material , anodized
*Holding force: 50-60KG for 60KG(120Lbs) standard.
*Optional Bracket: L, U Bracket
Standard Mounting Method
