Quick Details
-
Dimension (L*W*H):
-
410*630*156(mm)
-
Weight:
-
49kg, 60kg
-
Protection Class:
-
IP20
-
Product name:
-

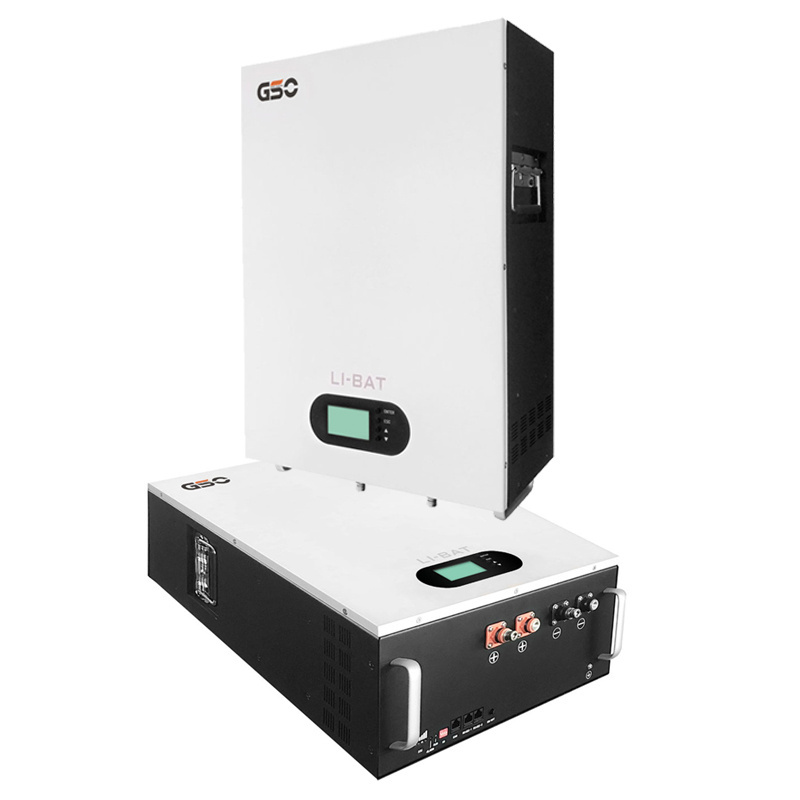

Lithium Iron Phosphate Lifepo4 Battery
-
Voltage:
-
48V/51.2V
-
Display:
-
LCD Indicator
-
Cycle life:
-
6000 Times
-
Terminal:
-
Copper
-
Anode Material:
-
LFP
-
Apllication:
-
Home Application
-
OEM/ODM:
-
Accepatable
-
Certification:
-
CE
Quick Details
-
Model Number:
-
48V100AH
-
Brand Name:
-
GSO
-
Place of Origin:
-
Jiangsu, China
-
Dimension (L*W*H):
-
410*630*156(mm)
-
Weight:
-
49kg, 60kg
-
Protection Class:
-
IP20
-
Product name:
-
Lithium Iron Phosphate Lifepo4 Battery
-
Voltage:
-
48V/51.2V
-
Display:
-
LCD Indicator
-
Cycle life:
-
6000 Times
-
Terminal:
-
Copper
-
Anode Material:
-
LFP
-
Apllication:
-
Home Application
-
OEM/ODM:
-
Accepatable
-
Certification:
-
CE
Products Description
|
Model
|
GBP48100
|
GBP48150
|
GBP48200
|
||
|
Nominal Voltage (V)
|
48
|
|
|
||
|
Battery Capacity (AH)
|
100(5KWH)
|
150 (7.5KWH)
|
200(10KWH)
|
||
|
Working Voltage Range
|
42-56.25
|
|
|
||
|
Recommended Charging voltage (V)
|
52.5
|
|
|
||
|
Recommended Discharge cutoff Voltage(V)
|
45.7
|
|
|
||
|
Standard Charging Current (A)
|
50
|
75
|
100
|
||
|
Max Continuous Charging Current(A)
|
100
|
150
|
200
|
||
|
Standard Discharge Current (A)
|
50
|
75
|
100
|
||
|
Max Continuous Discharging Current(A)
|
100
|
150
|
200
|
||
|
Operating Temperature (℃)
|
-20℃~60℃ (recommend 10℃~35℃)
|
|
|
||
|
Cool method
|
Natural air cooling
|
|
|
||
|
Certificate
|
CE, UN38.3, MSDS
|
|
|
||
|
Cycle life
|
Around 5000 times
|
|
|
||
|
Communication
|
RS485(CAN optional)
|
|
|
||
|
Parallel function
|
48v support at most 15 packs in parallel use(Capacity is 75KWH)
|
|
|
||
|
Max size (W*D*H) mm
|
410*180/220*590mm(including mounting rack)
|
|
|
||
|
Weight
|
45KG
|
68KG
|
106KG
|
||
|
Protection Level
|
IP20
|
|
|
||
|
Communication
|
RS485(CAN optional)
|
|
|
||
|
Remark
|
0.5C Discharge Max: 1C, 80%DOD
|
|
|
||
