Quick Details
-
Camera:
-
AF 5.0M(8.0M) Pixels with LED flash light
-
Audio:
-
Built-in microphone/Speaker
-
Interface:
-
Micro USB/Serial Port(TTL)
-
Dimensions(L xW xD):
-
162mm 70mm 31mm
-
Bluetooth:
-
BT 4.0
-
PSAM:
-
IS0/IEC 7816 1-4
-
Sealing:
-
IP65
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Battery:
-
3.7v 4000mAh rechargeable lithium polymer battery
-
Display:
-
4.0inch IPS 480x800 High Resolution
-
Camera:
-
AF 5.0M(8.0M) Pixels with LED flash light
-
Audio:
-
Built-in microphone/Speaker
-
Interface:
-
Micro USB/Serial Port(TTL)
-
Dimensions(L xW xD):
-
162mm 70mm 31mm
-
Bluetooth:
-
BT 4.0
-
PSAM:
-
IS0/IEC 7816 1-4
-
Sealing:
-
IP65

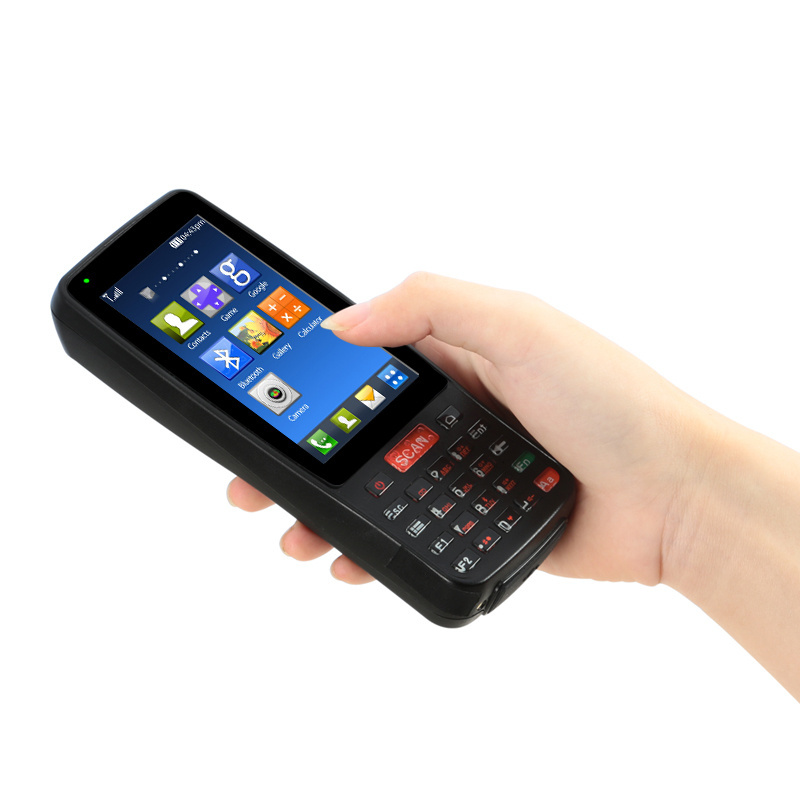

Handheld POS Terminal QR Code Scanner PDA401 NFC Android POS
Product Description
| Mechanical | |
| Dimensions | 162mm×70mm×31mm |
| Weight | 345g without accessories |
| Environmental | |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| Storage Temperature | -20° to 70°C (-13° to 158°F) |
| Humidity | 0 to 95% relative humidity (non-condensing) |
| Tumble | Designed to withstand up to 1,600 (1m) tumbles per IEC 60068-2-32 specification |
| Environmental Sealing | Independently certified to meet IP64 standards for moisture and particle intrusion |
| System Architecture | |
| Processor | 28nm ARM Qual-core cortex A53 @1.3-1.5GHz |
| GPU | Mali-T720 |
| Memory RAM | 2GB+16GB |
| Storage | 16GB and Support Max64GB SD card |
| Display | 4.0inch 480*800 high resolution, full axis viewing IPS LCD With Industrial touch panel |
| Keypad | 23 physical Keyboards |
| Camera | Real 5.0M AF camera |
| Battery | Internal 4000mAH rechargeable high-performance battery |
| Interface | Micro SIM*1/PSAM*1/TF card *1/RS232*1/Type-c*1 |
| Platform | Android 6.0 |
| Communicate | |
| GSM/GPRS/EDGE | 850/900/1800/1900MHz |
| 3G Network | CDMA/EVDO/WCDMA/TD-SCDMA |
| LTE 4G network | LTE-FDD:B1/ B3/ B7/B8/B28 and LTE-TDD:B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | BT4.0 |
| GPS | Integrated autonomous GPS receiver with built-in Assisted-GPS (A-GPS) services and software utilities |
| Data Collection | |
| 1D barcode | Symbol Technologies laser Scan Engine |
|
UPC/EAN, Code128, Code39, Code93, Code11,
Interleaved 2 of 5, Discrete 2 of 5,Codabar, MSI, RSS,etc |
|
| 2D QR | Pro CCD Scan Mobile Engine |
|
PDF417/ MicroPDF417/ Composite/ TLC-39/Datamatrix/
QR/ code/ Micro/ QR/ code/ Aztec/MaxiCode;/ Postal/ Codes:/ US/ PostNet/ US/ Planet/UK/Postal/Australian/Postal/Japan/Postal |
|
| NFC | |
| Frequency | 13.56MHz |
| W/R Tag | ISO/IEC 14443A/B,ISO15693,Mifare,Felica |
