Quick Details
-
Dimension(L*W*H):
-
2500mmm*1700mm*2400mm
-
Weight:
-
800kg
-
Rated power:
-
0.7MW-4.2MW
-
Steam temperature:
-
95-70
-
Boiler efficiency:
-
78
-
Certificate:
-
SGS, ISO
-
warranty:
-
1 year
-
Certification:
-
ISO
Quick Details
-
Steam Production:
-
Max. 10t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUTONG
-
Dimension(L*W*H):
-
2500mmm*1700mm*2400mm
-
Weight:
-
800kg
-
Rated power:
-
0.7MW-4.2MW
-
Steam temperature:
-
95-70
-
Boiler efficiency:
-
78
-
Certificate:
-
SGS, ISO
-
warranty:
-
1 year
-
Certification:
-
ISO

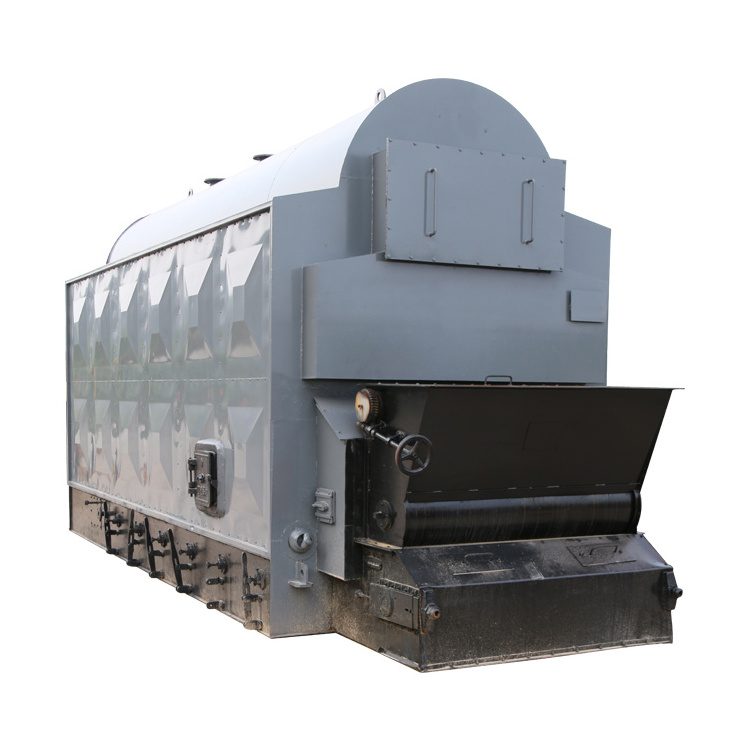

Solid Fuel Olive Husk Pellets Biomass coal-fired Fired Hot Water Boiler 1000 kw 6000kw for Greenhouse Heating System
The best coal fired steam boiler, was highly praised by customers for many years!
Product Description:
Secure high-performance, Long life, Effective smoke and dust Using standard ellipsoid tube plate, airfoil flue, fundamentally solved the boiler tube plate cracks and flaws and cylinder bulge, improve the life and safety of the boiler. Using the enhanced heat transfer internal thread pipe within the drum, furnace with a low long after the diversion arch-shaped line, coal-firedheat radiation to the stove and then quickly reflected back, increasing gas stirring,to have a full burning and greatly reduced the dust content in flue gas to improve the smoke and dust effects. By using the water injector technology, the return water of the boiler directly into the drop tube injector, increase 2 to 3 times the water speed, greatly improved the water cycle, thereby significantly reducing the scaling and increase boiler life.
Technical Parameters
| Parameter of CDZH/CDZLSeries Horizontal Normal Pressure Hot Water Boiler | ||||||||
| Model | CDZH0.7-95/70-AII | CDZL0.7-95/70-AII | CDZH1.4-95/70-AII | CDZL1.4-95/70-AII | CDZH2.1-95/70-AII | CDZH2.8-95/70-AII | CDZL2.8-95/70-AII | CDZL4.2-95/70-AII |
| Rated power(MW) | 0.7 | 0.7 | 1.4 | 1.4 | 2.1 | 2.8 | 2.8 | 4.2 |
| Supply water temperature(°C) | 95 | |||||||
| Return water temperature(°C) | 70 | |||||||
| Efficiency(%) | 78 | |||||||
| Heating area | 41 | 42 | 62 | 65 | 89 | 121 | 124 | 230 |
| Size(l×b×h) | 2500×1700×2400 | 4000×1700×2600 | 3400×2200×2600 | 5000×2200×2800 | 3600×2400×2900 | 4300×2500×3000 | 6000×2500×3400 | 7200×2600×3800 |
| Reference weight(Kg) | 800 | 12000 | 11000 | 20100 | 15000 | 16000 | 28000 | 30000 |
Quality Assurance
We Stiong Boiler is the sole famous brand of the region with B-grade qualification for coal fired steam boiler manufacturing and D-grade qualification for pressure vessel manufacturing. We have nearly 40 years of professional experience in production of this coal fired steam boiler and relative equipments .
Warranty
One-year warranty and lifetime free technical guidance for this coal fired steam boiler.
Spare Services:
A full range of original equipment spares is immediately available for this kind of coal fired stem boiler.
