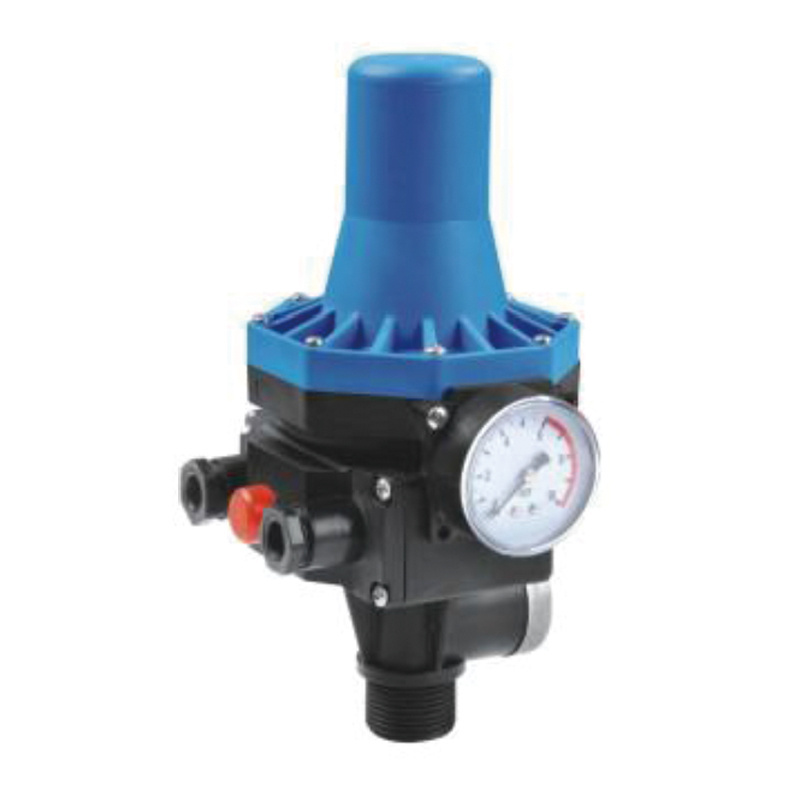

10 Bar Automatic Intelligent Water Pump Pressure Controller Pressure Switch with Cable

10 Bar Automatic Intelligent Water Pump Pressure Controller Pressure Switch with Cable

FOB Reference Price: Get Latest Price

≥100 Pieces

US $9.8

≥500 Pieces

US $9.6

≥1000 Pieces

US $9.4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: WEDO

Model Number:: WE-03

Max. Current:: 10A

Max. Working Pressure:: 10bar

Application:: Pressure Control System

Rated voltage:: 220V-240V 110V-120V

Pressure Range:: 1-10bar

Frequency:: 50 /60 Hz

Certification:: ISO

Protection rating:: IP65

Connection:: 1"

Max power:: 1.1kw

starting pressure:: 1.2bar; 1.5bar; 2.2bar

Material:: Cover PC

Quick Details

Whether the smart:: Yes

Max. Voltage:: 10bar

Place of Origin:: Zhejiang, China

Brand Name:: WEDO

Model Number:: WE-03

Max. Current:: 10A

Max. Working Pressure:: 10bar

Application:: Pressure Control System

Rated voltage:: 220V-240V 110V-120V

Pressure Range:: 1-10bar

Frequency:: 50 /60 Hz

Certification:: ISO

Protection rating:: IP65

Connection:: 1"

Max power:: 1.1kw

starting pressure:: 1.2bar; 1.5bar; 2.2bar

Material:: Cover PC

10 Bar Automatic Intelligent Water Pump Pressure Controller Pressure Switch with Cable

Products Description

Being an intelligent mix of hydraulic and electronic engineering.

The control maintains both pressure and flow and controls the operation of the pump automatically.

It don't needs pressure tank as in the traditional systems, There are no plenum chambers to recharge an no irritating variation in pressure and inflow at the point of use.

No adjustment or maintenance is required, it is absolutely dependable durable and simple to install.

Technical Data

1,Starting Pressure: 1.0bar-2.8bar 2, Max current: 10A 3, Max working pressure:10bar 4,Rated voltage: 110V-120V 220V-240V 5,Frequency:50/60 Hz 6, Max working temperature:60℃ 7, Protection rating: IP65 8, Connection thread:G1' 9,Power:1.1kw(220V-240V) 0.75 kw(110V-120V) 10, Application: Self-Priming Pump/Jet pump/Garden Pump/ Clarified water pump/Centrifugal pump

DESCRIPTIONS

1.Start and stop the pump automatically

2.Protect the pump for damaged by dry-running 3.Only for clean water
