Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
JKM460M-7RL3-JKM480M-7RL3
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2182*1029*35mm
-
Product name:
-
420W 450W Residential Commercial Use 9bb Half Cut Solar Panel Cell
-
Junction box:
-
IP67, rated
-
Operating temperature:
-
-40°C~+85°C
-
OEM orders:
-
Accepted
-
Application::
-
Solar Power System
-
Connector:
-
MC-4/Male/Female/Fuse
-
Frame::
-
Silver / Black Anodized Aluminium Alloy
-
solar cell:
-
9BB Mono 156.75*79.375 Cell
-
Frame Color:
-
Color Silver,Black
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Half Cell, Mono-Facial, P Type
-
Panel Efficiency:
-
21.38%
-
Warranty:
-
25 Years
-
Brand Name:
-
Jinko Solar
-
Model Number:
-
JKM460M-7RL3-JKM480M-7RL3
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2182*1029*35mm
-
Product name:
-
420W 450W Residential Commercial Use 9bb Half Cut Solar Panel Cell
-
Junction box:
-
IP67, rated
-
Operating temperature:
-
-40°C~+85°C
-
OEM orders:
-
Accepted
-
Application::
-
Solar Power System
-
Connector:
-
MC-4/Male/Female/Fuse
-
Frame::
-
Silver / Black Anodized Aluminium Alloy
-
solar cell:
-
9BB Mono 156.75*79.375 Cell
-
Frame Color:
-
Color Silver,Black
Products Description

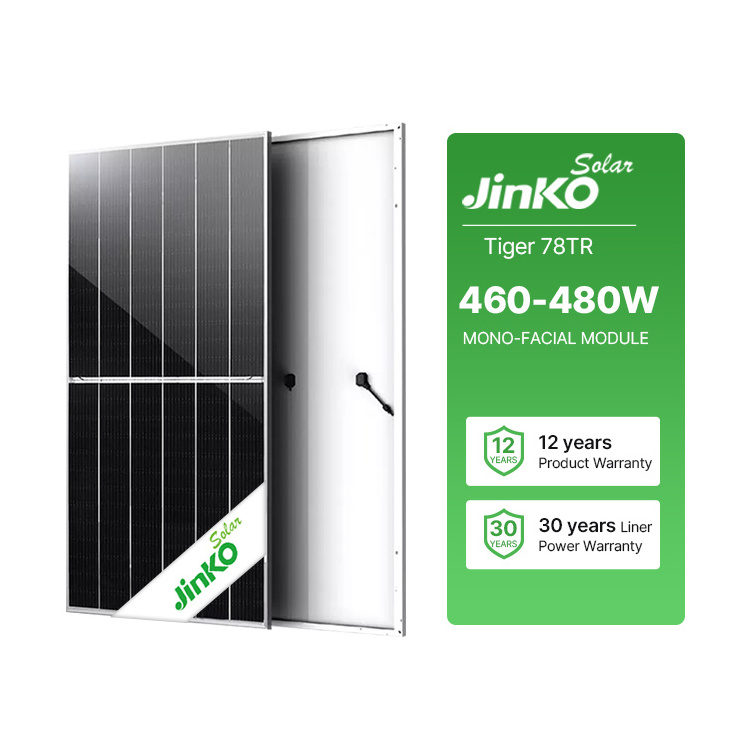

Jinko Solar Tiger 78TR 460-480 Watt MONO-FACIAL MODULE P-Type Solar Panel With Tiling Ribbon (TR) Technology
|
Cell Type
|
P type Mono-crystalline
|
|
No.of Half-cells
|
144 (6×24)
|
|
Dimensions
|
2182×1029×35mm (85.91×40.51×1.38 inch)
|
|
Weight
|
25.0kg (55.12 lbs)
|
|
Front Glass
|
3.2mm,Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass |
|
Frame
|
Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 Rated
|
|
Output Cables
|
TÜV 1x4.0mm2,(+) 290mm, (-) 145mm or Customized Length
|
Advantages of Tiger Module
Jinko Solar Tiger 78TR 460-480 Watt MONO-FACIAL MODULE P-Type
Mono-crystalline
Solar Panel With Tiling Ribbon (TR) Technology
* Ultra-high Power for the Lowest LCOE and Highest IRR
* Ultra-high Efficiency of 21.38%
* Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
* 9 Busbar Technology Decreasing the Resistance Loss
* Ultra-high Efficiency of 21.38%
* Reliable Tiling Ribbon Technology Eliminating the Inter-cell Gap
* 9 Busbar Technology Decreasing the Resistance Loss
KEY FEATURES
TR technology + Half Cell
TR technology with Half cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.38%)
Jinko Solar Tiger 78TR 460-480 Watt MONO-FACIAL MODULE P-Type Mono-crystalline Solar Panel With Tiling Ribbon (TR) Technology
TR technology with Half cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.38%)
Jinko circular ribbon has better suppleness, offer-pressing process, it performs excellent reliability.
Eliminate cell gap to increase module efficiency significantly. Comparing with 5BB, Tiger series module uses circular ribbon, which is developed by Jinko R&D independently to achieve the reutilization of light absorption and increase energy generation.
Best Warranty
12 year product warranty, 25 year linear power warranty
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
9BB instead of 5BB
9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Higher lifetime Power Yield
2% first year degradation, 0.55% linear degradation
Avoid debris, cracks and broken gate risk effectively
Best Warranty
12 year product warranty, 25 year linear power warranty
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
9BB instead of 5BB
9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Higher lifetime Power Yield
2% first year degradation, 0.55% linear degradation
Avoid debris, cracks and broken gate risk effectively
9BB technology using circular ribbon that could avoid debris, cracks and broken gate risk effectively
Better Performance in Low Irradiance Environment
Comparing with normal 5BB module, Rs of Tiger module will increase about 5.4% and shows better performance in low irradiance environment.
Comparing with normal 5BB module, Rs of Tiger module will increase about 5.4% and shows better performance in low irradiance environment.
More Reliability——IEC Test
With strict reliability test in IEC61215，such as PID, TC and DH double standard test, TR module has advantages in reliability performance.
With strict reliability test in IEC61215，such as PID, TC and DH double standard test, TR module has advantages in reliability performance.
Lower Micro crack Loss
Comparing with 5BB, current transmission distance is 50% lower which decreases the power loss by micro crack.
Comparing with 5BB, current transmission distance is 50% lower which decreases the power loss by micro crack.
Circular Ribbon Brings More Energy
Comparing with 5BB, Tiger series module uses circular ribbon, which is developed by Jinko R&D independently to achieve the reutilization of light absorption and increase energy generation.
Comparing with 5BB, Tiger series module uses circular ribbon, which is developed by Jinko R&D independently to achieve the reutilization of light absorption and increase energy generation.
LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
25 Year Linear Power Warranty
0.55% Annual Degradation Over 25 years
Product Parameter
ENGINEER DRAWING
Jinko Solar Tiger 78TR 460-480 Watt MONO-FACIAL MODULE P-Type Mono-crystalline Solar Panel With Tiling Ribbon (TR) Technology
Electrical Performance&Temperature Dependence
Jinko Solar Tiger 78TR 460 Watt MONO-FACIAL MODULE P-Type Mono-crystalline Solar Panel With Tiling Ribbon (TR) Technology
|
Module Type
|
JKM460M
-7RL3(-V) |
|
JKM465M
-7RL3(-V) |
|
JKM470M
-7RL3(-V) |
|
JKM475M
-7RL3(-V) |
|
JKM480M
-7RL3(-V) |
|||||||||
|
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
STC NOCT
|
|||||||||
|
Pmax.(W)
|
460
|
342
|
465
|
346
|
470
|
350
|
475
|
353
|
480 357
|
|||||||||
|
Vmp(V)
|
43.08
|
39.43
|
43.18
|
39.58
|
43.28
|
39.69
|
43.38
|
39.75
|
43.48 39.90
|
|||||||||
|
Imp(A)
|
10.68
|
8.68
|
10.77
|
8.74
|
10.86
|
8.81
|
10.95
|
8.89
|
11.04 8.95
|
|||||||||
|
Voc(v)
|
51.70
|
48.80
|
51.92
|
49.01
|
52.14
|
49.21
|
52.24
|
49.31
|
52.34 49.40
|
|||||||||
|
Isc(A)
|
11.50
|
9.29
|
11.59
|
9.36
|
11.68
|
9.43
|
11.77
|
9.51
|
11.86 9.58
|
|||||||||
|
Module Efficiency
|
20.49%（STC）
|
|
20.71%（STC）
|
|
20.93（STC）
|
|
21.16%（STC）
|
|
21.38%（STC）
|
|||||||||
|
Operating Temperature（℃）: -40℃~+85℃
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Maximum System Voltage: 1000/1500VDC (IEC)
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Maximum Series Fuse Rating: 20A
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Power Tolerance: 0~+3%
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Temperature Coefficients of Pmax: -0.35%/℃
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Temperature Coefficients of Voc: -0.29/℃
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Temperature Coefficients of Isc: 0.048%/℃
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal Operating Cell Temperature(NOCT): 45±2℃
|
|
|
|
|
|
|
|
|
|
|||||||||
STC:
Irradiance 1000W/m2
Cell Temperature 25°C
AM=1.5
NOCT:
Irradiance 800W/m2
Ambient Temperature 20°C
AM=1.5
Wind Speed 1m/s
Product Display
Jinko Solar Label
Barcode on the front panel
Barcode on the back panel
Packing/Packing list
Product Packaging
|
PACKAGE CONFIGURATION
|
|
|
|
Container
|
JKM460M-7RL3-JKM480M-7RL3
|
|
|
Pallet
|
31PCS
|
|
|
40'HQ
|
620PCS
|
|
