High Quality DMX 5000 170 Pixels 8 Ports 4096 Channels Programmable LED DMX512 Master Controller

One. P roduct s p erformance

1. Gray level 256 to control, real image color and detail.

2. Three colors independent brightness control, make accurate adjustment white balance more simple and effective.

3. According to the physical characteristics of the visual adjustment hardware gamma corrected function.

4. 100 Hz refresh rate can guarantee the stability of the picture.

5. The Ethernet interface and UDP network protocol, the transmission distance is 100 meters.

6. Display module to display and control parameters, state.

7. Double network interface, can realize between controller cascade.

Two. Design concept

1. The synchronous control mode, with the computer data synchronization control.

2. With independent intellectual property rights of the video editing, played and wiring design software "JBLED FLASH" can adapt to all kinds of different screen, more screen, text screen, pixel lamp panel, and so on complex applications.

3. The function of the software system integration and opening height, broadcasting content and wiring design can by application square independently.

4. Player software easy operation, but by the end user independent design and broadcast content.

5. Directly from the computer network card receiving data, use more convenient.

Three. P ractical

1. Can play a variety of video formats asynchronous the contents of the documents and pictures.

2. Can show that all Windows operating system, the support of the countries of words.

3. Through the matching conversion CARDS can connect DMX512 light console, and lighting systems to highly compatible.

4. Support IP packet function, realize the larger project many sets of the stability of the controller.

5. Support DMX512 agreement, 8 outputs.

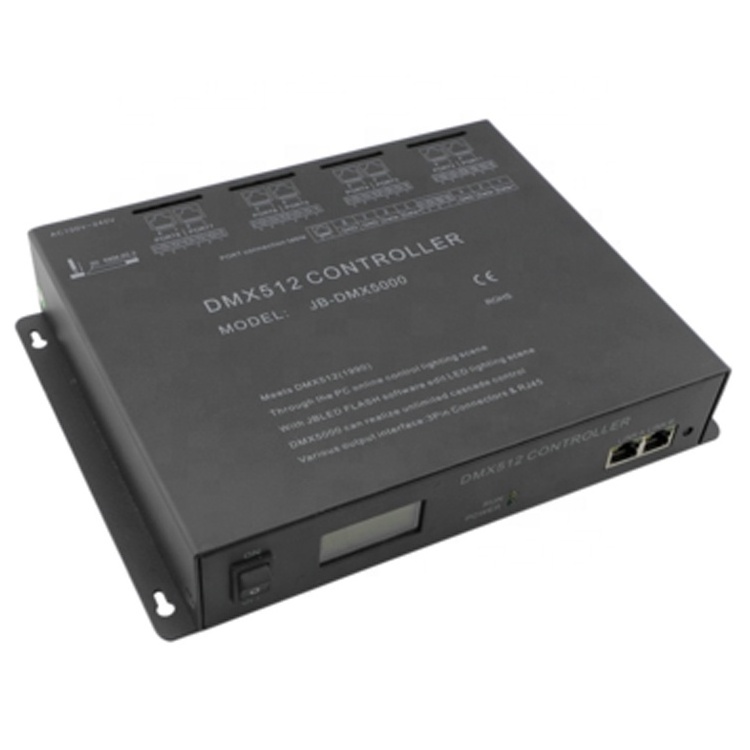

Four. controller model and appearance

1. Product model:

DMX5000 asynchronous controller with, for industrial have hulls, 8 outputs, each pixel communization control points maximum can reach 170 (512 CH), the biggest take carry 1360 pixels.

2. Basic parameter table of DMX5000:

Five. Installation Instructions

1. PC online connection method (synchronized/online mode):

2. Output interface line sequence:

3. Simple example engineering installation instructions and schemes:

Six. Matters needing attentions

1. DMX5000 differential output, this kind of means only for double signal or single signal lamps and lanterns, that the only data or data, the clock Suggestions for the five kinds of above and the cable, and lamps or difference transfer board to answer the method for use intertwined with two lines of one as A and one as B, such as orange as A, orange white as B.

2. DMX signal transmission generally shielded twisted-pair cable, the signal ground must be answered. At the end of every signals that between A and B to add A 120 R terminal resistance.

3. Cable line sequence:

568A: Green white   Green   Orange white  Blue  Blue white   Orange   Brown white   Brown

568B: Orange white   Orange  Green white   Blue   Blue white   Green   Brown white   Brown

Controller and offline player and switch the three facilities using cross each other better string, namely A head for 568 A another head for 568 B.

Above any equipment and computers with Internet between direct line, namely with two head for 568 A 568 or B, do not define your own direct line sequence.
