SPECIFICATION FOR TOUCH SWITCH OF MIRROR

NAME

Mirror touch switch

MODEL No.

RESW08F1-S5A

Technical specification

Item

Parameters

Item

Parameters

Operating Voltage

DC12V-24V

Switching channel

1 circuits LED strip

Working current

30mA(Max)

Dimming method

PWM ( step or stepless )

Switching current

5A (Max) current

Dimming range

stepless : 5% ~ 100%

Touch mode

Capacitive touch

Color temperature adjustment range

Step : cold white-neutral-warm

Support mirror thickness

below 5mm

stepless : cold ~ white

Key backlight

Blue or white

Input and output line specifications

AWG20   L=200MM

Dimensions

116*46*13mm

Installation specification

Kindly check RESW08F1-S5A installation

Introduction

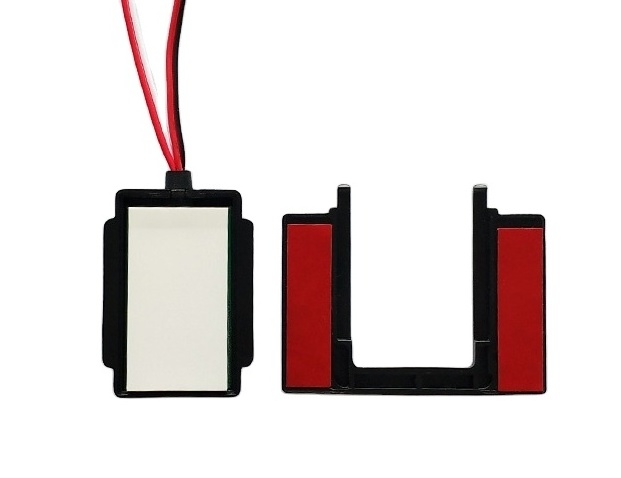

This product is a one-way touch switch, which is suitable for mirror-touch operation after installation on the mirror surface. key is a light control switch, which can select functions such as light switch, dimming and color temperature. Power on of mirror lighting, the button is light up blue backlight color, short press key to turn on the light, and the button backlight turns white. After short turn off the light, the button backlight turns back to blue, so cycle,when turn on the light, press key to adjust the dimming or color temperature stepless. (See the table below for the function description of each model);

RESW08F1-S5A

key: short press "cold light - neutral light - warm light - off" state cycle; long press stepless dimming;
