Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
1.5KW
-
Weight:
-
180 KG
-
Dimension(L*W*H):
-
500*450*950mm
-
Name:
-
Grain Mill
-
Application:
-
Food Flour Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn
-
Function:
-
Multifunction
-
Feature:
-
Universal Crushing
-
Package:
-
Wooden Box
-
MOQ:
-
1 UNIT
-
Delivery Time:
-
7-10 Days
-
Other name:
-
Flour Mill Plant Maize Flour Mill
-
Processing type:
-
Mill Roller Grinding
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OHFU
-
Production Capacity:
-
10-50KG/H
-
Voltage:
-
220V/380V
-
Power:
-
1.5KW
-
Weight:
-
180 KG
-
Dimension(L*W*H):
-
500*450*950mm
-
Name:
-
Grain Mill
-
Application:
-
Food Flour Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn
-
Function:
-
Multifunction
-
Feature:
-
Universal Crushing
-
Package:
-
Wooden Box
-
MOQ:
-
1 UNIT
-
Delivery Time:
-
7-10 Days
-
Other name:
-
Flour Mill Plant Maize Flour Mill
-
Processing type:
-
Mill Roller Grinding

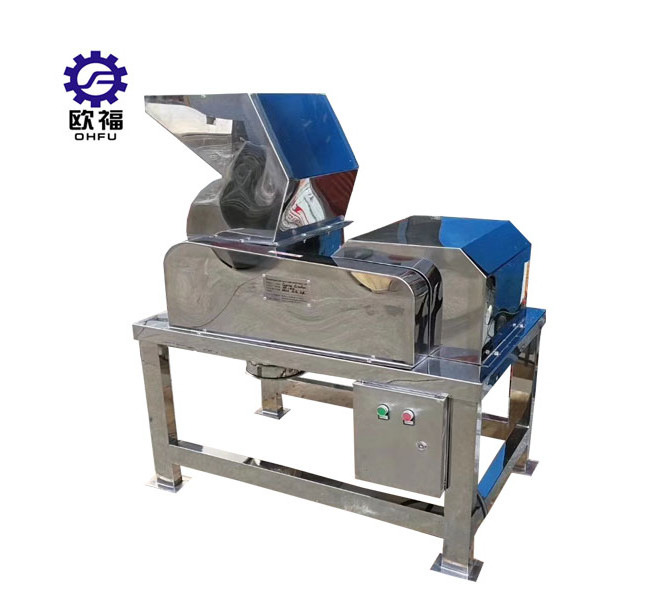

Herb dry mushroom coarse crusher grinder / fish bone rough pulverizing machine
main application :
This machine is mainly used in medicine, food, chemical industry, metallurgy, construction and other industries to process hard and difficult to crush materials, including plastics, roots, etc. It can also be used as a supporting equipment for the process before micro-crushing. It is not restricted by material viscosity, hardness, softness, etc., and it can have a good comminution effect for any material.
working principle :
The machine is of horizontal comminution structure, the material enters the comminution chamber by the hopper, and is comminuted by the impact and shearing of rotating knife and fixed knife. Designed according to GMP standard, the whole machine is made of stainless steel, simple structure, easy to clean, low noise, it is the most ideal equipment for coarse grinding.
T echnical parameters :
|
model |
HF-120 |
HF-300 |
HF-400 |
HF-600 |
|
Capacity (kg/h) |
10-50 |
80-200 |
100-400 |
200-800 |
|
mesh size of feed (mm) |
≤50 |
≤50 |
≤100 |
≤200 |
|
Crushing fineness (mm) |
0.5-20 |
0.5-20 |
0.5-20 |
0.5-20 |
|
speed of main shaft rpm |
400 |
400 |
400 |
400 |
|
Grinder Motor Power (kw) |
1.5 |
5.5 |
7.5 |
15 |
|
weight(kg) |
180 |
400 |
550 |
600 |
|
Overall dimensions
|
500x450x950 |
800×900×1400 |
900×1000×1500 |
1200X950X1600 |
