- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HRHC
-
Weight (KG):
-
3000 kg
-
Key Words:
-

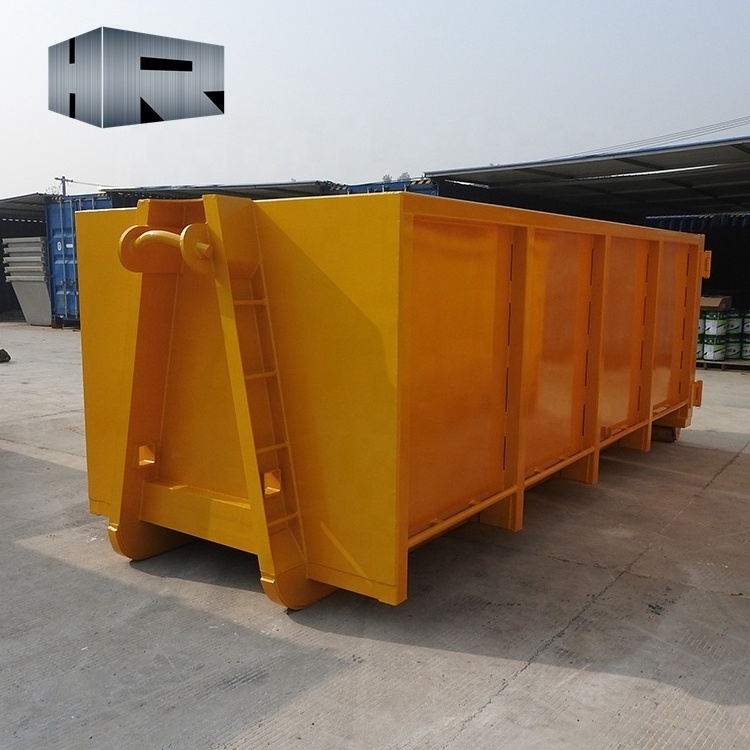

Hook lift container
-
Name:
-
Hook lift container
-
title:
-
Hook lift container
-
color:
-
customized
-
Size:
-
20cbm
-
plate thickness:
-
OEM
Quick Details
-
Production Capacity:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
HRHC
-
Weight (KG):
-
3000 kg
-
Key Words:
-
Hook lift container
-
Name:
-
Hook lift container
-
title:
-
Hook lift container
-
color:
-
customized
-
Size:
-
20cbm
-
plate thickness:
-
OEM
Product Details
|
Material
|
mild steel , in China we usually use Q235, which similar to grade 250(AUS), A283(USA). we can also use Q345 which similar to grade
350 (AUS), A210(USA). |
|
|
|
|
|
|
|
|
|
|
Size Range
|
We can produce from 10 to 80m yd. And OEM is also available.
|
|
|
|
|
Thickness of plates used
|
10gauge 8gauge (3mm-4mm) M/S plate for sides and 8 gauge 6gauge(4mm-5mm) M/S for floor. Thicker plates are available to ur
requirements |
|
|
|
|
|
|
|
|
|
|
Other specifications
|
1). RHS are used for top rails, and top edge of plate continuous welded to RHS
|
|
|
|
|
|
2). Fully and partly welded inside and outside
|
|
|
|
|
|
Hook bar: Dia 50mm
|
|
|
|
|
|
Bottom chassis : PFC or 'I' beam, usually 200*75 PFC
|
|
|
|
|
|
Curved sides are available
|
|
|
|
|
|
Hinge and rollers with grease points
|
|
|
|
|
Options
|
1) Two openning door
|
|
|
|
|
|
2) Up openning door
|
|
|
|
|
|
3) HDG (Hot dipped galvanizing)
|
|
|
|
|
|
4) Crane eyes on top
|
|
|
|
|
|
5) Double spening door
|
|
|
|
|
|
6) Ladder in front or in the back
|
|
|
|
|
Painting
|
We will paint each bin you order in your company colours, enhancing your company image with great looking bins.
|
|
|
|
|
|
Two times of primer + two times of top coat
|
|
|
|
|
|
Primer : zinc-based epoxy (Grey)
|
|
|
|
|
|
Top coat : Urethane (Any color)
|
|
|
|
Product Application
Product Recommendation
Packaging & Delivery
Packing Details
:
No packing
, loaded in shipping container.（Usually we stack your bins with foam to protect your painting , also we can provide some paint with the bins for fixing when you got the bins）
Delivery Details:
Shipped in
30 days
after payment
. (Usually
we need 30% as deposit
, and balanced will be paid after sending you the scanned copy of documents like B/L, Invoice packing list and so on)
