Hot sale one man self propelled boom lift truck mounted hydraulic lifting platform

Hot sale one man self propelled boom lift truck mounted hydraulic lifting platform

FOB Reference Price: Get Latest Price

≥1 Pieces

US $11700

≥3 Pieces

US $9900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: AC /DC /Diesel / Optional

Min. Lifting Height:: 2250mm

Table Size:: 900*700mm

Overall Dimensions:: 1900*2250*6900mm

Weight:: 2000 kg

Power source:: DC AC Diesel Engine Gasoline Engine

Load capacity:: 200kg

Control mode:: Touch screen control

Feature:: Easy Operation Safety Convenience

Type:: Articulated Hydraulic Lift

Color:: Customized Color

Working height:: 24m

Working Radius:: 11m

Material:: High Strength Steel

Anti wind grade:: ≤5

Quick Details

Warranty:: 2 years

Place of Origin:: Shandong, China

Brand Name:: WIZ

Power:: AC /DC /Diesel / Optional

Min. Lifting Height:: 2250mm

Table Size:: 900*700mm

Overall Dimensions:: 1900*2250*6900mm

Weight:: 2000 kg

Power source:: DC AC Diesel Engine Gasoline Engine

Load capacity:: 200kg

Control mode:: Touch screen control

Feature:: Easy Operation Safety Convenience

Type:: Articulated Hydraulic Lift

Color:: Customized Color

Working height:: 24m

Working Radius:: 11m

Material:: High Strength Steel

Anti wind grade:: ≤5

Product Description

Hot sale one man self propelled boom lift truck mounted hydraulic lifting platform

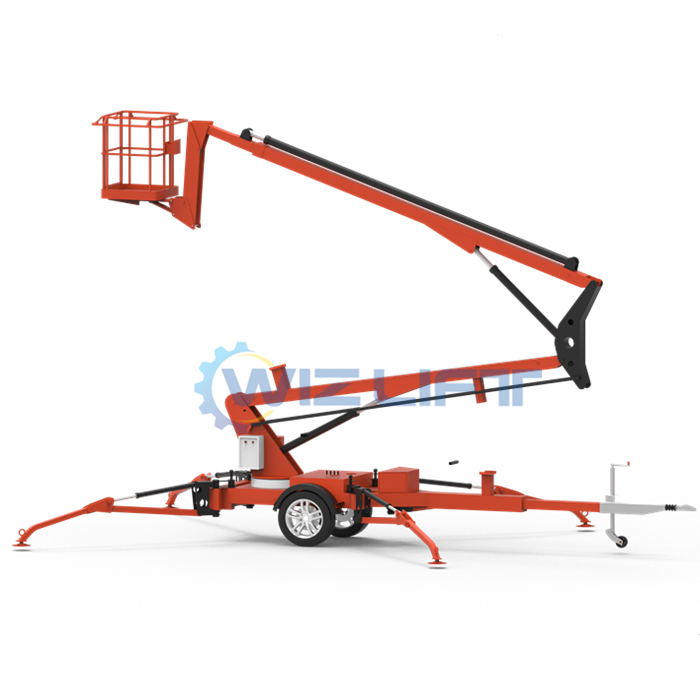

Trailer boom lift (Spider boom lift) can be car -carrying to working sites. It can work across the barriers with 360° rotation, while with 4 full-automatic hydraulic legs, which makes aerial work very safe and stable. Standard petrol engine power, battery and AC power are optional. It is widely used for roads/street light maintenance, shopping malls decoration aerial work, electric power overhaul and other working sites.

Specification

Model	Load capacity	Lifting height	Platform size	Turntable rotation	Dimension
TBL-6	200kg	6m	0.9X0.7X1.1m	360°	4.8x1.6x1.8m
TBL-8	200kg	8m	0.9X0.7X1.1m	360°	5.4x1.6x1.9m
TBL-10	200kg	10m	0.9X0.7X1.1m	360°	5.4x1.6x1.9m
TBL-12	200kg	12m	0.9X0.7X1.1m	360°	5.8x1.8x2.2m
TBL-18	200kg	18m	0.9X0.7X1.1m	360°	6.4x1.8x2.2m
TBL-20	200kg	20m	0.9X0.7X1.1m	360°	6.6x1.8x2.2m
TBL-22	200kg	22m	0.9X0.7X1.1m	360°	6.8x1.8x2.2m
Note: Standard power source : electric 220V, AC power Optional power: Diesel engine, Gas engine, Battery

Details Images

Features

1. Multiple job site application, indoors and outdoors
2. High and low operation panel
3. Hydraulically outriggers and outrigger interlocks
4. Hands prevent folder
5. Self-leveling protection
6. Flashing Beacon
7. Emergency lowering system
8. 360°continuous turntable rotation
9. Protective covers for oil-tank, emergency controls etc
10. AC power to platform(Optional)

Dual controllers: Two control panels one work budget & control box on chassis. With clear specification. Convenient for user’s controlling.

Hydraulic support legs: independent control by handle, the space can be adjusted as use condition

Adopt German AL-KO. Its breakage is more than 62% of machine weight when downhill, and up to 37% of machine weight when uphill. That is all much higher than normal standard of 18% ruled

Working cage: Hands prevent folder is used to protect user’s hands in case of collision with obstacles. Metallic paint on
appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness
