Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2000 - 2900 r.p.m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGYUE
-
Voltage:
-
380V, 220
-
Dimension(L*W*H):
-
850*700*1600
-
Weight (KG):
-
300 KG
-
Product name:
-
tea leaf mill herb grinder
-
Capacity:
-
30 to 200 kg/h
-
spice items:
-
Pepper, coriander,cummin, mustard etc
-
Function:
-
Grinding to powder
-
Processing:
-
Milling Machine
-
Certificate:
-
CE
-
Weight:
-
450KG
Quick Details
-
Output (kg/h):
-
20 - 300 kg/h
-
Feeding Size (mm):
-
1 - 10 mm
-
Output Size (mesh):
-
12 - 120 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
2000 - 2900 r.p.m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGYUE
-
Voltage:
-
380V, 220
-
Dimension(L*W*H):
-
850*700*1600
-
Weight (KG):
-
300 KG
-
Product name:
-
tea leaf mill herb grinder
-
Capacity:
-
30 to 200 kg/h
-
spice items:
-
Pepper, coriander,cummin, mustard etc
-
Function:
-
Grinding to powder
-
Processing:
-
Milling Machine
-
Certificate:
-
CE
-
Weight:
-
450KG
This pulverizer urilizes the high-speed relative motion between the moving tooth set and regular tooth set,which makes the material.crushed through concussion,rub and crush between the material.The structure of machine is simple,firm and operating stedily and the result of crushing is well,The crushed thing is discharged directly from mainframe,the size of the granularity is gained through changing different network aperture sift and get grain size in the diredtly,in addittion,this machihne is made for the whole stainless steel.Surface of the inside of the machine reaches smooth by tooling,which changes the phenomenon of inboard wall coarse accumulating of power machine in the past,it can accord with the national standard even more to make food ,chemical industry,ect.and meet the requirment of GMP.
Technical Parameters:
|
Model |
MY-20 |
MY-30 |
MY-40 |
|
Capacity(kg/h) |
30-50 |
30-200 |
50-300 |
|
Size of input granules(mm) |
<10 |
<10 |
<12 |
|
Size of output granules(m esh ) |
12-120 |
12-120 |
12-120 |
|
Power(kw) |
4 |
5.5 |
7.5 |
|
Speed of principal axis(r/min) |
3000 |
2900 |
2900 |
|
Weight(kg) |
120 |
280 |
450 |
|
Overall Size(L×W×H)
|
550×420×1400 |
750×550×1400 |
850×700×1600 |
Characteristics:
The crushing chamber is equipped with wind wheel type high~speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.
Working Method:
The machine uses the wind wheel type high~speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.

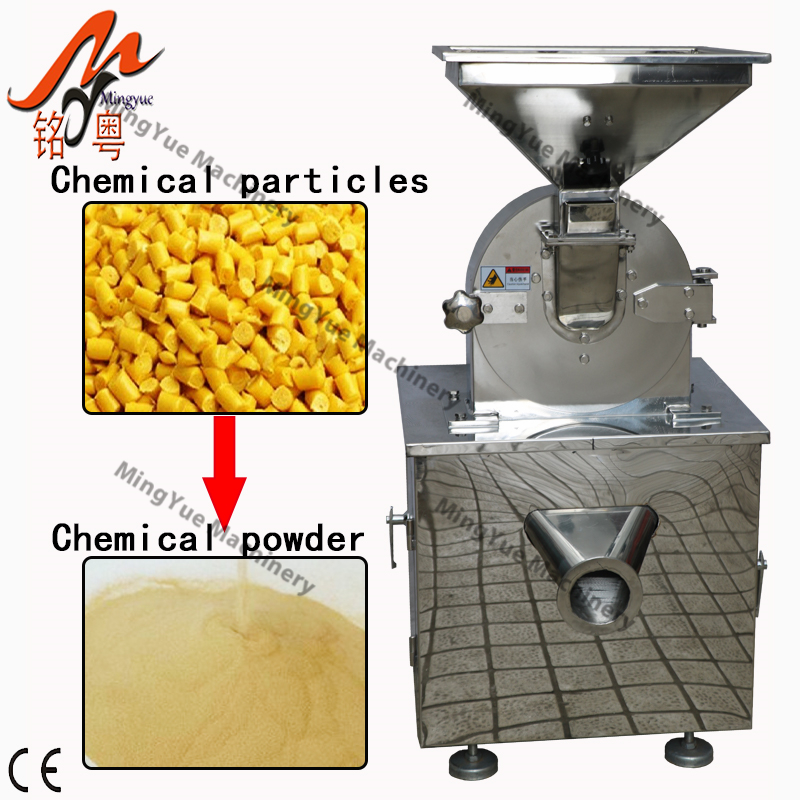

Machine Picture:
