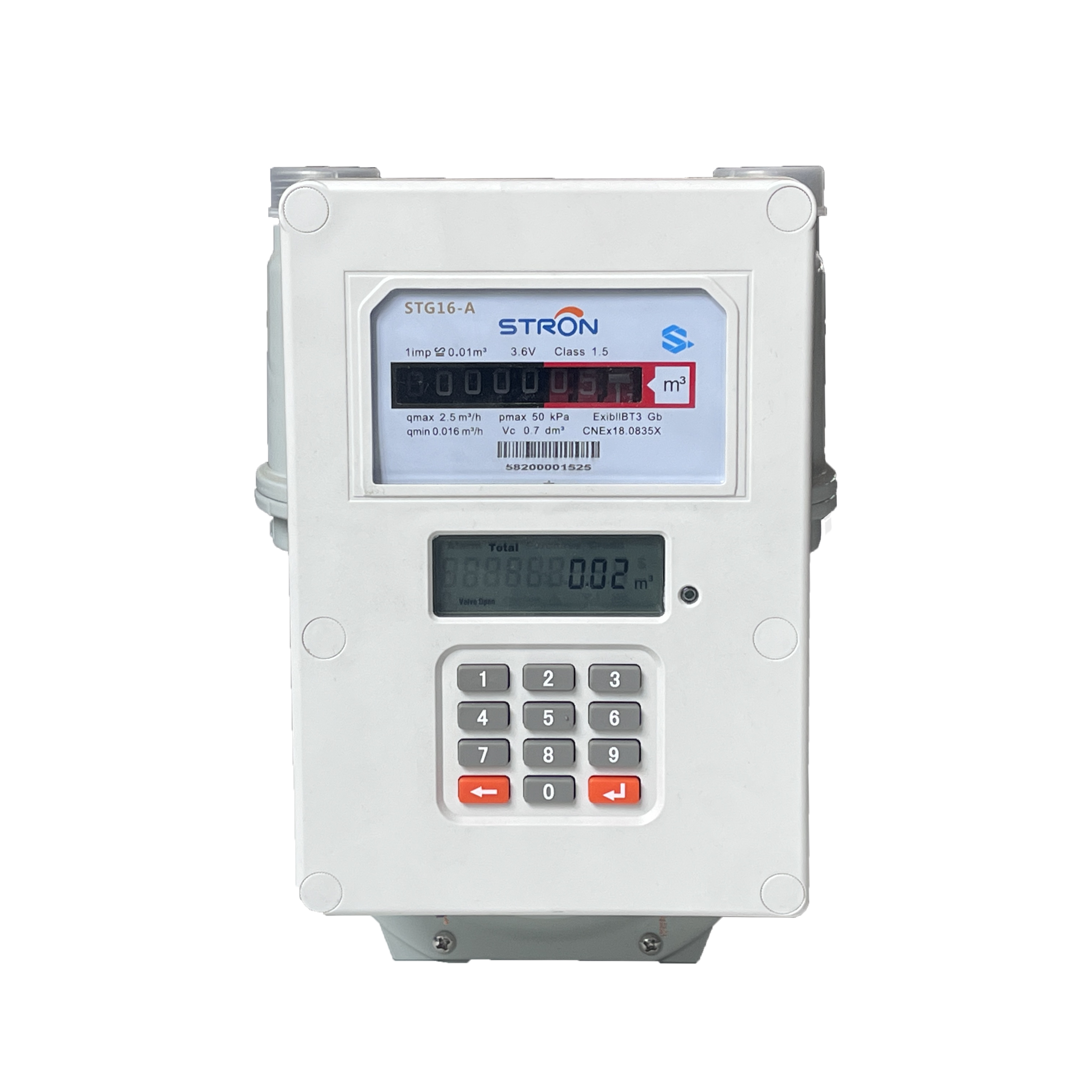

The meter is an STS Standard compliant, keypad type, automatically valve controlled prepaid gas meter. It can be top up by Stronpay vending software with 20 digital Token and communicate with AMI system via LORA-RF module.
Application:
Measuring the volume of gas through gas pipes.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
STRON
-
Model Number:
-
STG16-A
-
Certification:
-
IS09001
-
Standard:
-
STS
-
Flow rate:
-
1.6 m3/h
-
Payment system:
-
Vending System
-
Maximum flow:
-
max(m3/h):2.5/4
-
Communication:
-
LORA-RF
-
Display Type:
-
LCD, Digital
-
Working temperatu:
-
-10℃ ~ +40℃
-
Working Pressure:
-
50 KPa
Quick Details
-
Type:
-
Automatic value controlling, Prepaid Keypad
-
Warranty:
-
2 years
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
STRON
-
Model Number:
-
STG16-A
-
Certification:
-
IS09001
-
Standard:
-
STS
-
Flow rate:
-
1.6 m3/h
-
Payment system:
-
Vending System
-
Maximum flow:
-
max(m3/h):2.5/4
-
Communication:
-
LORA-RF
-
Display Type:
-
LCD, Digital
-
Working temperatu:
-
-10℃ ~ +40℃
-
Working Pressure:
-
50 KPa
Product Description
STG16-A
Specification
|
Size
|
G1.6
|
G2.5
|
G4
|
||
|
Nominal Flow Rate
|
1.6 m3/h
|
2.5 m3/h
|
4 m3/h
|
||
|
Maximum Flow Rate
|
2.5 m3/h
|
4 m3/h
|
6 m3/h
|
||
|
Minimum Flow Rate
|
0.016 m3/h
|
0.025 m3/h
|
0.04 m3/h
|
||
|
Maximum working pressure
|
0.7 Bar
|
0.7 Bar
|
0.7 Bar
|
||
|
Working temperature
|
99999
|
|
|
||
|
Working temperature
|
-20-50℃
|
|
|
||
|
Storage Temperature
|
-30-60℃
|
|
|
||
