Quick Details
-
Core Components:
-
laser source
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Questt
-
Dimension(L*W*H):
-
500mm*300mm*650mm
-
Weight (KG):
-
25 KG
-
Application:
-
cleaning
-
Laser Power:
-
20-200W
-
Laser:
-
Fiber laser
-
working Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
gurranty:
-
2 years
-
Services:
-
overseas service
-
materials:
-
all kinds
-
Certificates:
-
CE ISO
-
Laser Beam:
-
different output
Quick Details
-
Power:
-
20-100W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Core Components:
-
laser source
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Questt
-
Dimension(L*W*H):
-
500mm*300mm*650mm
-
Weight (KG):
-
25 KG
-
Application:
-
cleaning
-
Laser Power:
-
20-200W
-
Laser:
-
Fiber laser
-
working Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
gurranty:
-
2 years
-
Services:
-
overseas service
-
materials:
-
all kinds
-
Certificates:
-
CE ISO
-
Laser Beam:
-
different output
Products Description
Introduction

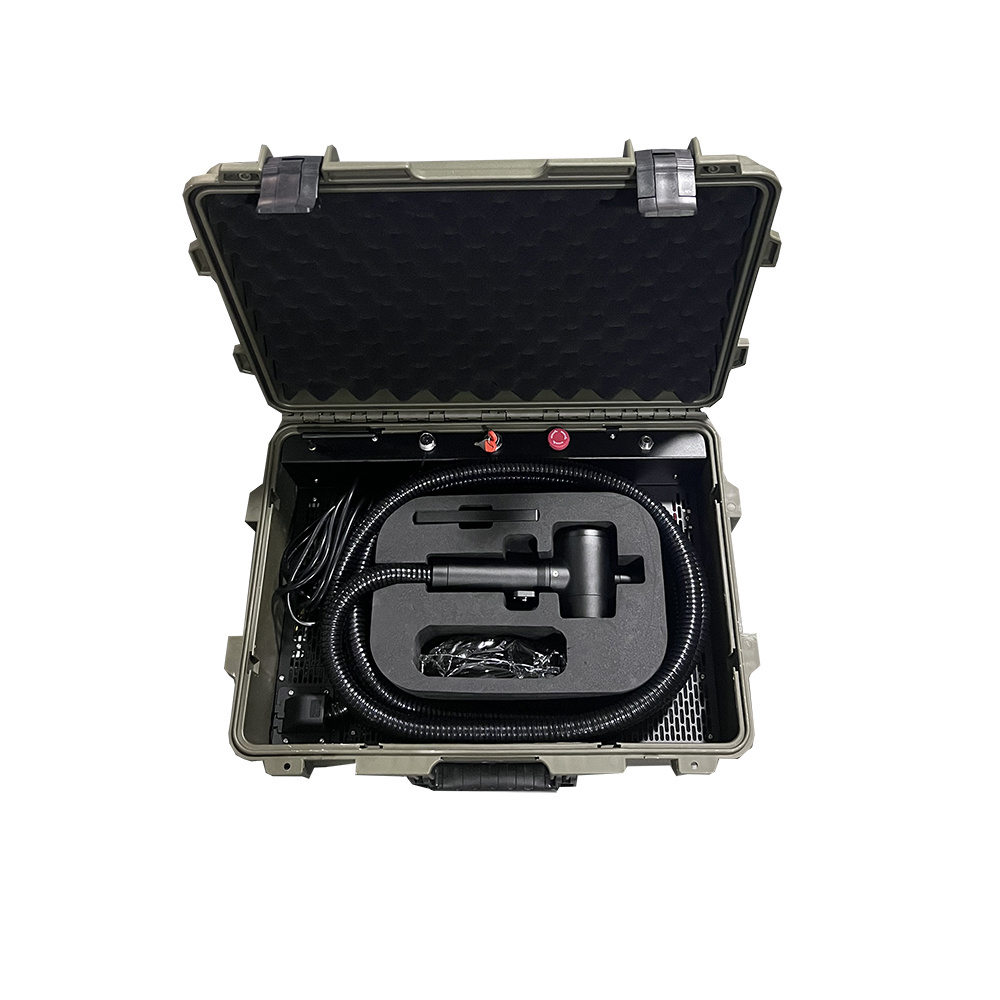

QA-LC100S Laser cleaning machine is a suitcase type machine.The weight is only 25kg, the outlook is the same as a travel case , which is very easy to take along and move. Touch screen controller is as easy to operate as a mobile phone. We also approved to add Phone APP control system.
The cleaning process is very simple and rapid. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and
other target materials with high efficiency, high performance, low cost and without harm to the base material.
The cleaning process is very simple and rapid. It can remove the rust, paint, grease, dirt, coating, residue, oxide layer, and
other target materials with high efficiency, high performance, low cost and without harm to the base material.
Features
1. Compact dimensionand light weight
2. 8 kinds of cleaning modes
3. Self-developed cleaning system
4. Good cooling and ventilation effect
5. Easy maintenance
6. High cleaning efficiency
7. High-Tech non-contact cleaning
2. 8 kinds of cleaning modes
3. Self-developed cleaning system
4. Good cooling and ventilation effect
5. Easy maintenance
6. High cleaning efficiency
7. High-Tech non-contact cleaning
Configuration Detail
Laser cleaning head
The laser head is small and light, weighing less than 0.6kg, equipped with dust-proof protective mirrors
Touch screen controller
Wireless touch operation screen, small size like mobile phone, light weight. There are 8 kinds of preset modes.
Laser source
JPT pulse laser source, maximun monopulse energy is 1.5mJ. The lifetime is 100000hours, warranty is 2 years.
Buttons
1. Power plug:110/220v, We will adapt to power plugs for different countries
2.Key switch: The main power switch of the machine.
3.Emergency stop button: Emergency stop button of the equipment.
4.Air interface:Connect dry compressed air to prevent dust from damaging the lens during cleaning
2.Key switch: The main power switch of the machine.
3.Emergency stop button: Emergency stop button of the equipment.
4.Air interface:Connect dry compressed air to prevent dust from damaging the lens during cleaning
Laser safety goggles
Laser safety goggles protect your eyes from laser damage,with a high protection index and very safe
Focus lens
Standard F160 focus lens, cleaning width 100mm, optional larger focus lens, maximum cleaning width supports 300mm
Product Paramenters
|
Model
|
QA-LC100S
|
QA-LC200S
|
|
Laser source
|
Fiber
|
Fiber
|
|
Laser power
|
100W
|
200W
|
|
Fiber cable length
|
5m
|
5m
|
|
Laser wavelength
|
1064nm
|
1064nm
|
|
Pulse energy
|
1.5mJ
|
1.8 mJ
|
|
Pulse frequency
|
1-4000KHz
|
1-4000KHz
|
|
Cleaning speed
|
≤12 M²/Hour
|
≤20 M²/Hour
|
|
Cleaning modes
|
8 modes
|
8 modes
|
|
Cooling
|
Air cooling
|
Air cooling
|
|
Dimension
|
540*400*290 mm
|
540*400*290 mm
|
|
Packing
|
680x540x400mm
|
680x450x530mm
|
|
Net weight
|
25kg
|
33kg
|
|
Gross weight
|
28kg
|
38kg
|
|
Beam width
|
10-100mm
|
10-100mm
|
|
Optional
|
Manual
|
Manual
|
|
Temperature
|
5-40 ℃
|
5-40 ℃
|
|
Voltage
|
Single Phase AC 220V 4.5A
|
Single Phase AC 220V 4.5A
|
Samples
Different types laser cleaning machine
1000w 1500w 2000w 3000w continuous laser cleaning machine
50w 100w pulse backapck laser cleaning machine
200w 300w pulse laser cleaning machine
200w 300w pulse water chiller laser cleaning machine
500w 1000w pulse laser cleaning machine
robot automative laser cleaning machine with different powers
