Quick Details
-
Product:
-
4K HDMI Wireless Extender
-
Transmission distance:
-
30M
-
Frequency band:
-
5.8GHz
-
Resolution:
-
4K/1080P
-
3D support:
-
Yes
-
HDCP:
-
1.4
-
Power supply:
-
USB Power Cable
-
Warranty:
-
1 Year
-
Certification:
-
CE/ROHS/FCC
Quick Details
-
Brand Name:
-
Neutral
-
Model Number:
-
T-802A
-
Place of Origin:
-
Guangdong, China
-
Product:
-
4K HDMI Wireless Extender
-
Transmission distance:
-
30M
-
Frequency band:
-
5.8GHz
-
Resolution:
-
4K/1080P
-
3D support:
-
Yes
-
HDCP:
-
1.4
-
Power supply:
-
USB Power Cable
-
Warranty:
-
1 Year
-
Certification:
-
CE/ROHS/FCC

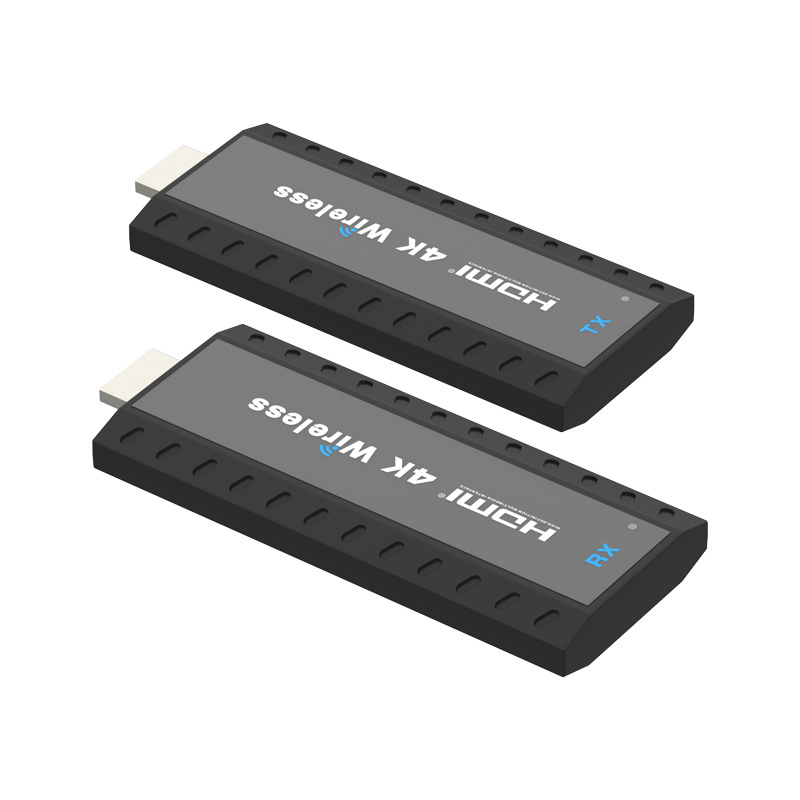

50 Meter Wireless HDMI Transmitter and Receiver, 4K Supported Wireless HDMI Sender Receiver 5G via Wifi
1.0 Introduction :
HDMI extender with a standard Ethernet TCP/IP protocol, through wireless WIFI signal transmission HD audio and video signal, at the same time, The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.
2.0 Features:
1. HDMI video and audio transmission via wireless WIFI, up to 50 meters;
2. HDMI 1.4 compatible,In accordance with standard HDCP1.4,high-bandwidth digital content protection technology;
4. HD video signal resolution up to 4Kx2K@30Hz;
5. Special format is to compress and decompress video,effectively improve
the transfer efficiency,to ensure that the playback fluency;
6. Able to automatically identify and configure a variety of display mode;
7. Built-in automatic balance system, the picture is fluent, clear and stable;
8. The built-in ESD electrostatic protection circuit, comprehensive security
protection system;
9. Simple and convenient installation, plug and play, do not need to set up.
3.0 Packaging accessories:
1. HDMI transmitter------------------------------------------------1 PCS
2. HDMI receiver ---------------------------------------------------1 PCS
3.HDMI Cable -------------------------------------------------------2 PCS
4. USB Power Cable-----------------------------------------------2 PCS
5. User Manual------------------------------------------------------1 PCS
4.0 Technical parameters :
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1. 4 ; HDCP 1. 4 |
|
|
Compressed format |
H.26 5 |
|
|
Maximum pixel clock |
340 MHz |
|
|
Maximum data rate |
10.2 Gbps |
|
|
Resolution |
Max: 4Kx2K @ 3 0Hz |
|
|
Connector |
HDMI-A M |
|
|
Impedance |
100Ω |
|
|
Recommend HDMI maximum input/output range |
Less than 5 meters |
|
WIFI |
Radio Frequency power |
13dbm |
|
|
Wireless standards |
802.11ac |
|
|
signal direction |
Unidirectional |
|
|
Radio frequency |
5.8GHz |
|
|
Transmission distance |
50 M (Max) |
|
Other |
Power |
DC 5 V |
|
|
Power dissipation |
MAX 5 W |
|
|
Temperature |
Operating: -5℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Size |
90 * 39 * 10 mm |
|
|
Warranty |
1 year free warranty |
Packaging & Shipping
1. Package:
2. Shippment:
by sea, by air, by express, DHL/UPS/Fedex/EMS/TNT etc.
3. Delivery:
5-7 days after order confirmed.
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on (door to door)
2. For Air Shipment, Please choose your favorite shipping method according to your detail requirement
3. The shipping discount is different in different seasons and depend on different weight, we will choose the cheapest and safest way according to your detail quantities
4. Normally, it will take around 3-7days from China to the destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Samples within 1-3 days
2. Wholesales Orders : 5-7 days according various quantities
3. OEM 10-12 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods within the warranty period, we will repair them or send you new ones for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it just to confirm your problem, then we will send you free new goods instead.
