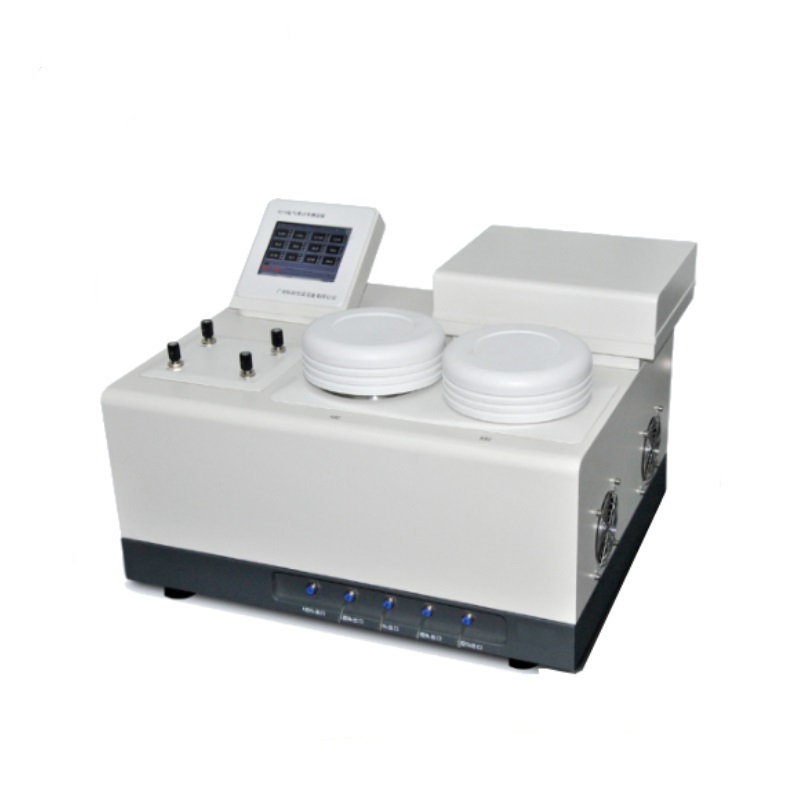

ASTM E96 ASTM D1653 WVTR Polyfilm Water Vapor Permeability Tester

Application

To test the water vapor transmission rate (WVTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, personal care, household, electronics and so on.

Working principle

Weight reduction method (wet cup method). Seal the cup with test sample, keep humidity difference between inside and outside of the cup, and water vapor will penetrate the test sample; monitor the change of cup weight to calculate transmission rate.

Configuration

Water Vapor Permeability Analyzer test the water vapor transmission rate of various materials, including: plastic film, composite film, aluminum-plated film, aluminum foil etc.; packaging containers, such as bag, bottle, bowl, can etc.; sheets, such as PP sheet, PVC sheet, rubber, building material, porcelain; other application, such as solar panel, paint film, medical patch etc. It is widely used in packaging, plastic film, food,  personal care industries, inspection agency, research institute, college and so on.

Features

1. Built-in computer, can work independently or connect to computer by USB port. Touch screen for setting parameters, display curves and report.

2. High precision sensor, continuous data collecting, accurate and dependable.

3. Over range protection, multiple safety protection.

4. Temperature control: International advanced electromagnetic technology, program controlled, optimal and accurate.

5. Unique chamber design, mixing humid gas and dry gas in proportion to control humidity effectively.

6. Automatic monitoring and working; auto correction of parameters; auto lock and password lock.

7. Curves of temperature, humidity, weight and transmission rate, real time display and zoom in/out.

8. Data storage; can export files for editing and printing.

9. Weight calibration and standard film calibration.

10. Test precision is the same as infrared method and electrolytic method.

11. Can expand to 12 chambers. Every chamber works independently.

12. Can test high barrier material such as aluminum foil.

13. Software upgrade, data backup and fault diagnosis through USB port.

Software

1, Software interface is simple, easy to operate.

2, Wholly automatic testing, auto save test data.

3, Real time display data and curves of transmission rate, weight, humidity, temperature.

4, Can zoom and move curves freely, so as to make detail analysis.

5, Can export and print professional test report, displaying detailed test data and curves.

6, Auto correction to avoid wrong operation.

Standards

GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, ISO 2528, DIN 53122-1, JIS Z0208, YBB00092003, YBB00022002, YBB00112005, YBB00102005

Click here >>>> More Factory Prices and Shipping !!!

Click here >>>> For 10% discounts !!!

ABOUT US

We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 13 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 80 countries these years,especially favored by European and American countries.

Our equipments cover a wide range of industries, such as rubber and plastics industry, food industry, packaging industry, electronics industry, etc.and are suitable for all scientific research units, quality inspection institutions and academic fields.

In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.

Click here >>>> More Factory Prices and Shipping !!!

1. How to choose the most suitable Mechanical Equipment ?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines

according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
