Quick Details
-
Flatness:
-
Lambda/4
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
No
-
Model Number:
-
no
-
Product name:
-
Roof prism
-
Surface quality:
-
20/10---80/50
-
Coating:
-
Anti-Reflective (AR) Coatings
-
Surface flatness:
-
Lambda/10~ Lambda/4
-
Bevel:
-
0.1-0.3mm X45 Degree
-
Application:
-
Optical & Medical equipments
-
Brand:
-
unique optics
Quick Details
-
Material:
-
optical glass, Optical Glass
-
Dimension Tolerance:
-
0.0/-0.1mm, 0.0/-0.1mm
-
Angle Tolerance:
-
3', 3'
-
Flatness:
-
Lambda/4
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
No
-
Model Number:
-
no
-
Product name:
-
Roof prism
-
Surface quality:
-
20/10---80/50
-
Coating:
-
Anti-Reflective (AR) Coatings
-
Surface flatness:
-
Lambda/10~ Lambda/4
-
Bevel:
-
0.1-0.3mm X45 Degree
-
Application:
-
Optical & Medical equipments
-
Brand:
-
unique optics
Product Description

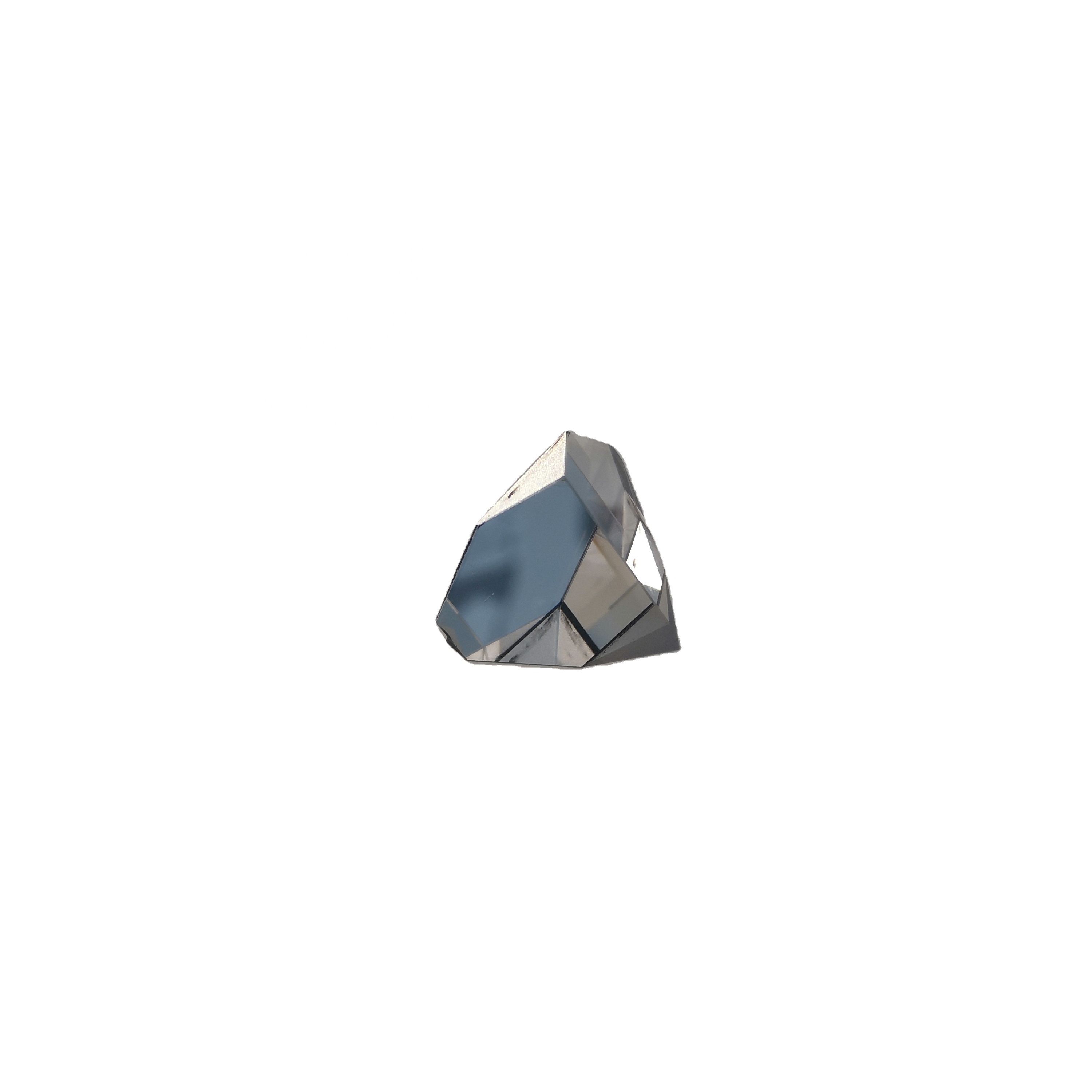

Amici prisms, also called “roof prisms” or “right angle roof prisms,” revert and invert the image as well as bend the line of
sight through a 90°angle. Ideal for use in spotting scopes, and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up, and bend it through a 90° angle in order to maintain the correct visual orientation.
sight through a 90°angle. Ideal for use in spotting scopes, and any optical instrument where it is desirable to take an inverted image from an objective, turn it right side up, and bend it through a 90° angle in order to maintain the correct visual orientation.
Dalian Unique Optics Co., Ltd.
offers a wide range of optical prisms in a variety of designs, substrates, or coating options, including Right Angle, Amici Roof, Penta,Wedge, Anamorphic, Equilateral, Dove prisms, Corner Cube Retroreflectors and Light Pipe.
Specification
|
Material：
|
BK7, Fused silica Caf2, ZnSe, optical glass
|
|
Surface Quality：
|
60-40、40-20、20-10
|
|
Surface FLatness:
|
1/8 lambda、1/4 lambda、1/2 lambda
|
|
Dimension Size Tolerance:
|
±0.1mm
|
|
Angle Tolerance
|
±30"
|
|
Coating
|
AR coating, reflective coating as demands
|
Factory
Manufacturing Equipment
Contact Us
E-mail: manager@uneoptics.com
Skype: shirley@uneoptics.com
Website:www.uneoptics.com
Recommend Products
Other optical products
Dalian Unique Optics Co., Ltd. is a professional manufacturer of optical products, integrating development and production together. We are specialized in manufacturing all types of optical products, main products optical lens, cylindrical lens, prism, optical window optical filter, optical mirror, diffraction grating,rod, etc. Unique optics has optical design team to provide optical system design and special industry lens custom service.
Packing & Delivery
Unique Optics
concerns details of the package , cleaning, anti-static , shock treatment .
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We accept DHL, Fedex, TNT, UPS, SF, EMS etc. If you have your own express account, it's great.
