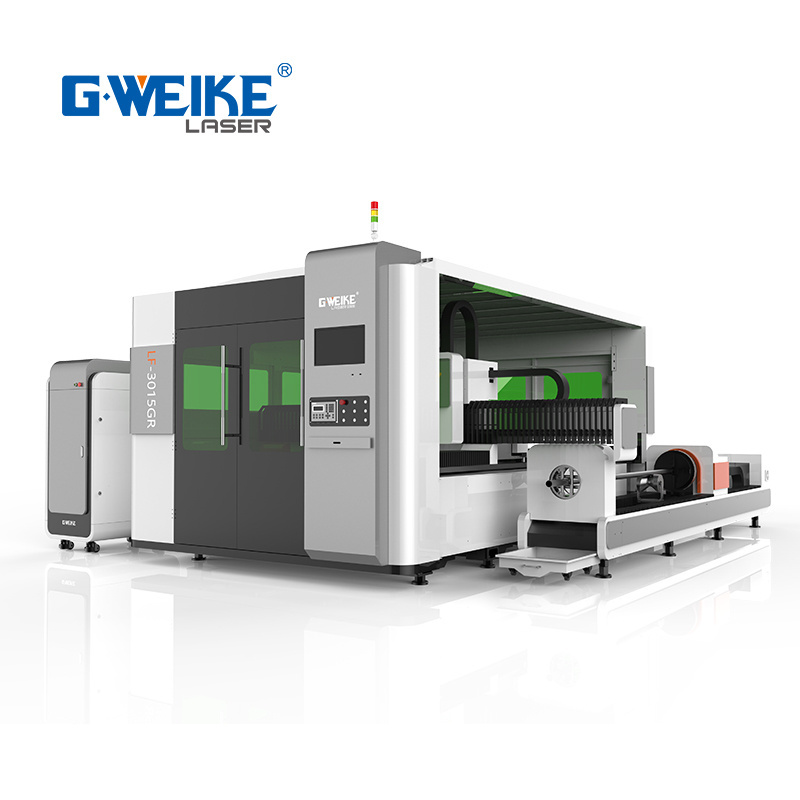

Name:3000 Watt Fiber Laser Cutting Machine 3000x1500mm laser cutting machine

laser source: IPG or Raycus

cutting accuracy: 0.003mm

Motor:YASKAWA servo motor

**Technical Parameters 3000 Watt Fiber Laser Cutting Machine 3000x1500mm laser cutting machine

**German Tech Quality OF 3000 Watt Fiber Laser Cutting Machine 3000x1500mm laser cutting machine

G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer.
The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.

**quality products stainless steel carbon steel iron metal 3000x1500mm laser cutting machine can focus automatically

1.Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

2.Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

3.Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

** The Segmented Rectangular Tube Welded Bed OF quality products stainless steel carbon steel iron metal 3000x1500mm laser cutting machine

1.The intern al structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also in creases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

2. High strength, stability, tensile strength, ensuring 20 years of use without distortion;

3.Thickness of rectangular pipe wall is 10mm and weights 4500 kg. **Exchanging Platform OF  3000 Watt Fiber Laser Cutting Machine 3000x1500mm laser cutting machine

It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor. The machine is able to finish the platform exchanging within 15s.

** High Quality Cut Stainless Steel 1.5kw Fiber Laser Cutting Machine 3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed. * * Dual Use and Cost-saving quality products stainless steel carbon steel iron metal 3000x1500mm laser cutting machine LF3015GR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool

2.Fumigation wooden box : Our wooden box is fumigated, do not need to check the wood, saving the transport time.

3.Whole film packaging machine : Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.

The outermost is a wooden box with a fixed template.

4. Wooden box at the bottom of a solid iron socket for easy handling

Industry Application of 3000 Watt Fiber Laser Cutting Machine 3000x1500mm laser cutting machine

High Quality Small CNC Fiber Laser Cutting Machine Price with 500W 1500W for Metal  as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people’s daily life.
Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Applicable material of 3000 Watt Fiber Laser Cutting Machine 3000x1500mm laser cutting machine

Laser Power : 1000W-8000W (Optional) Professional cutting of 0.5 ~ 25mm carbon steel plate, 0.5 ~ 16mm stainless steel, galvanized sheet, electrolytic plate, 0.5-16mm aluminum alloy, 0.5-10mm brass and copper and other metal materials.
