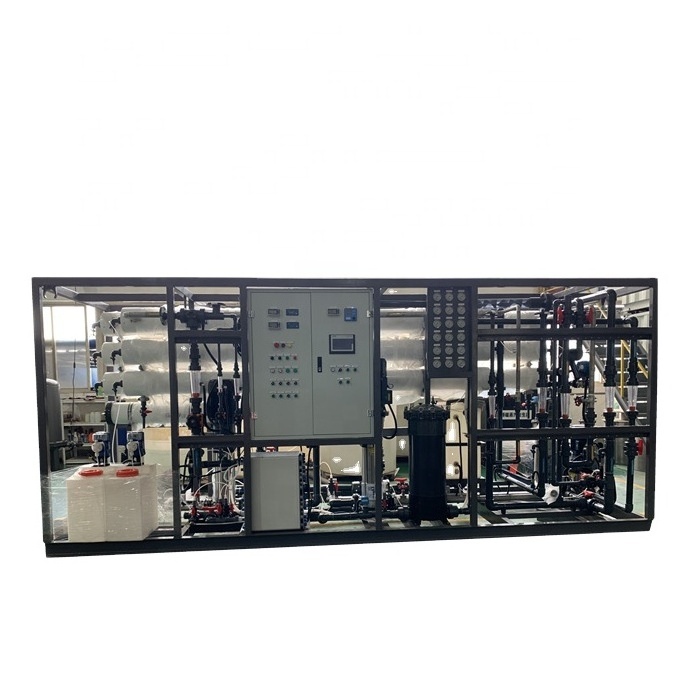

Frequency Conversion Medium to Large BWRO Ro water purification lake dam water treatment machines filter systems

Frequency Conversion Ro water purification lake dam water treatment machine filter system

Lake dam water treatment machine filter system for water purification
With the improvement of living standard and sanitary requirement, people’s requests on the water quality of alcohol and soft drink are higher and higher, especially on taste and sanitary standards. And in food and beverage industry, we need to remove a large number of ions, microorganism, bacteria and sand, etc to guarantee the health, fresh and normal fermentation of products. So we need to treat with the raw water. The usual water quality request: purified water conductivity not more than 10μs/cm

After many years’ research and development, our company can supply series RO water treatment equipments. These equipments can be used for reasonable and efficient treatment to tap water. After removing particle, colloid, residue chlorine by pretreatment system, our RO system can remove the bacteria, virus and many other microorganism and heavy metal ions which is harmful to people’s health. The equipments can be directly used for producing great quality of purified water for food, dairy product, alcohol and beverage production. Our equipments are set up with manual and auto operation, which can automatically control raw water, high pressure pump, and purified water pump to work and stop. There will be automatic on/off, flushing, high and low pressure protection, liquid level control on our equipments.

Technical Specification of lake dam water treatment machine filter system for water purification:

• Output water capacity: 0.25m3/h-200m3/h;
• Output water conductivity: ≤10μs/cm;
• Recovery:50-75%;
• Operation Pressure:0.3-1.5Mpa
• Bacteria Removing Level: ≥99%

Equipments Features of lake dam water treatment machine filter system for water purification:

• High rejection, we use famous brand RO membrane, With excellent output water quality, low operation cost and longer service life.
• High efficiency, low noise. We use famous brand high pressure pump
• Flow meter for product water and concentrated water to monitor the output water capacity
• Pressure gauge before and after precision filter to monitor the pressure difference between RO and Precision Filter, which will help user to know when to change cartridge.
• Low/High pressure switch for prevent RO membrane from damage
• Concentrated water control valve to adjust output water capacity and system recovery at any time.
• Quick flushing valve to periodically cleaning RO membrane, reduce the pollution to RO membrane, prolong the service life of RO membrane.

Application of lake dam water treatment machine filter system for water purification:

• Pure Water for Food Production
• Blending Water for wine, beverage, and Juice, etc
• Bottled Water and Barreled Water Production
• Pure Water for Diary Production
• Blending Water for Flour and Cookie, etc

4. Packaging, Payment, Delivery terms

• Packaging: plywood case or container
• Payment: TT OR LC terms
• Delivery: Within 20-30 days

1. Raw Water Testing
Water treatment processes must be designed according to the quality of the raw water. This is the only way to ensure that the treated water can meet requirements and the water treatment equipment can serve well during its normal life. liquatech  has a world-class water treatment technology laboratory, which can conduct a comprehensive analysis of the raw water quality conditions. All you need to do is just sending us the sample of raw water, and then we analyze and test the sample for you without any charge. The analysis provides important data to support subsequent treatment process design and equipment production.

2. Water Treatment Solutions
We have more than 10 years of relevant experience in the field of water treatment. For those customers who are unable to provide raw water quality reports or samples, we can provide an accurate solution. If you are in this situation, you may just tell us where the raw water comes from. No matter it is underground water from deep wells, surface water, lake water, brackish water, seawater, tap water, industrial wastewater or city sewage, we can offer a satisfactory solution that best meet your individual needs.

3. Customization
We are experienced in water treatment equipment design and manufacturing, and we are able to produce customized water treatment equipment in many varieties, such as various tanks, filtration equipment, reverse osmosis equipment, Nanofiltration equipment, Ultrafiltration equipment, desalination plant, and deionization equipment.

4. Technical Data and On-Site Support
A full set of device-related technical information will be provided together with our equipment, such as equipment assembly drawings, installation layout, electrical control charts, PLC program, components catalog, operation instruction, maintenance manuals and so on. Meanwhile, for some customers who do not quite understand the water treatment equipment, we can send professional technical personnel to offer on-site installation and commissioning guidance, and trainings on operation and maintenance.

Just contact me!
