Hsm Hot Sale Cheap Price Stone Material Double Roller crusher sand making machine Equipment Crusher Sand Making Plant

Hsm Hot Sale Cheap Price Stone Material Double Roller crusher sand making machine Equipment Crusher Sand Making Plant

FOB Reference Price: Get Latest Price

≥1 Sets

US $21000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 2X(22-355)

Dimension(L*W*H):: Varies

Weight:: 5200 kg

Color:: White Red Black Yellow

Installation:: Engineer Guide

Motor:: Shanghai Fengyang

Max feeding size:: 50mm

Discharge size:: 0-5mm

Spare parts supply:: Anytime

Applicaton:: Rock Crusher Processing

After-sales Service Provided:: Overseas Service Provided

Quick Details

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: HSM

Power:: 2X(22-355)

Dimension(L*W*H):: Varies

Weight:: 5200 kg

Color:: White Red Black Yellow

Installation:: Engineer Guide

Motor:: Shanghai Fengyang

Max feeding size:: 50mm

Discharge size:: 0-5mm

Spare parts supply:: Anytime

Applicaton:: Rock Crusher Processing

After-sales Service Provided:: Overseas Service Provided

Products Description

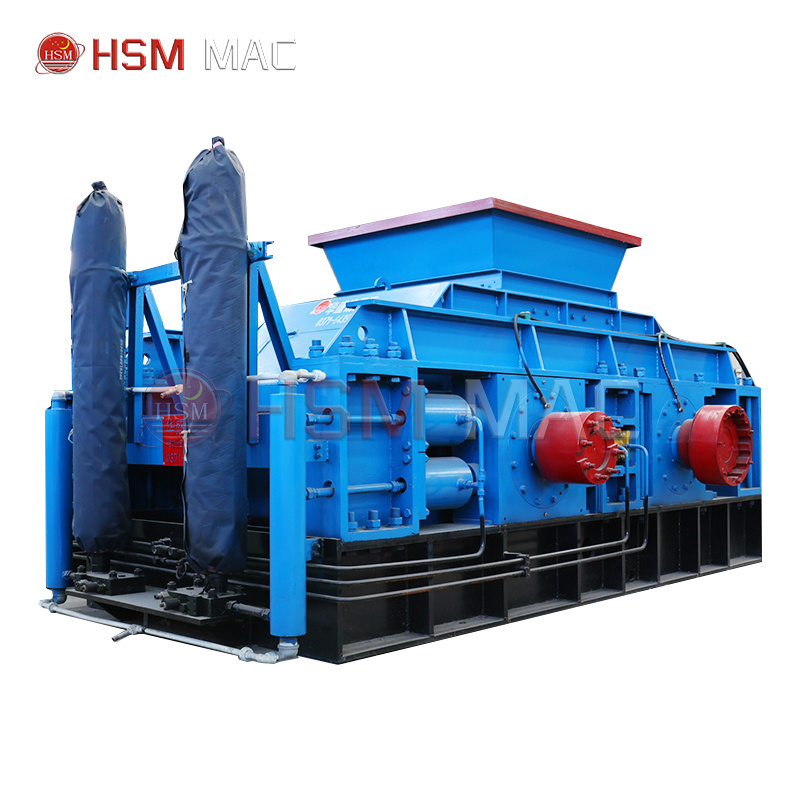

Fully Automatic Hydraulic Double Roller Crusher

The h ydraulic double roller crusher is another breakthrough in the field of sand and gravel aggregate production equipment manufacturing.
The hydraulic double roller crusher is a two roll sand making machine that uses two motors to drive two roller shafts to squeeze and grind materials. The hydraulic double roller crusher is mainly used for fine crushing operations with particle size requirements of less than 80mm and finished products of 50-20mm.

Applicable materials|Application scope

River pebble, Calcite, quartzite, marble, cobble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, Diabase, granite, basalt. Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

Working Principle

The fine crushing sand making machine operates through rollers. The pebbles, put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

Advantage of roller crusher

1. High crushing ratio and high production capacity The double roller crusher is a double roller sand making machine that uses twomotors to drive two roller shafts to squeeze and grind materials.

2.More crushing and less grinding,full grain size The production efficiency of the mill can be improved by crushing more and grinding less.Delicate and high-quality finished products.

3.Long service life and low operating costs The roller skin is made of wear-resistant materials with strong impact resistance and high wear resistance. It has small loss and low failure rate when crushing materials. In the later stage, it can reduce maintenance costs,have low operating costs and long service life.

The hydraulic roller crusher is a kind of machine which is extended by the spring roller crusher. The advantage of hydraulic structure is that it can control the pressure between two reliefs accurately. Long-term continuous operation can still guarantee the crushing pressure between two rollers. Therefore, the equipment of roller crusher in the grinding system can give full play to the production capacity of the grinding equipment. Generally, the output can be increased by 30%~40%, and the total energy consumption can be reduced by 20%-30%.

Details Images

The roller crusher performs crushing operations through rollers. The material enters between the rollers through the feeding port and crushes the river pebbles through compression. There is a gap between the two rollers, and the gap between the two rollers increases, resulting in a larger particle size of the material. Under the action of the compression spring, the gap between the two rollers decreases, resulting in a smaller particle size of the material. By adjusting the gap, the discharge particle size of the material can be controlled.

Firstly, our roller skin material is our patent material,which is Mn18Cr2 and containing other rare metals. Different with other ordinary roller,our roller skin is more durable and 3-5 times using time of them.According to customers raw material,the using life can reach 3 years.

Product Paramenters

Specification and model	Roll diameter (mm)	Feed size (mm)	Productive capacity (t/h)
2PGT400×250	φ400	≤25	2-10
2PGT400×400	φ400	≤25	5-12
2PGT610×400	φ610	≤30	5-20
2PGT750×500	φ750	≤30	10-40
2PGT800×600	φ800	≤40	12-50
2PGY800×800	φ800	≤40	40-50
2PGY800×1000	φ800	≤40	50-80
2PGY1000×800	φ1000	≤40	50-80
2PGY1000×1000	φ1000	≤40	80-100
2PGY1200×1000	φ1200	≤60	100-120
2PGY1200×1200	φ1200	≤60	120-150
2PGY1500×1000	φ1500	≤80	150-200
2PGY1500×1200	φ1500	≤80	200-250
2PGY1800×1000	φ1800	≤100	250-300
2PGY2000×1200	φ2000	≤120	300-400

1. Easy operate. High Degree Of Automation
2. Adjustable discharge. According To The Demand, the Discharge Can Be Adjusted arbitrarily From 1-5mm
3. Patent material. Thickened Roller Skin, 20000 Hours Service Life
4. High capacity. Low Over-Crushing Rate
5. Automatic buttering Continuous Operation
6. Environmental protection, Low Noise, Low Dust.
