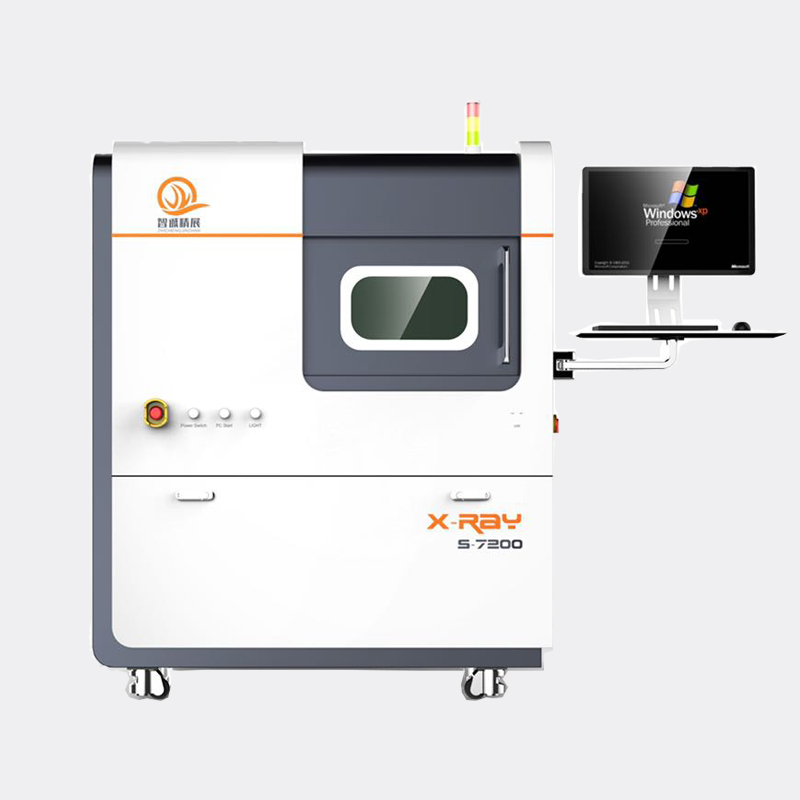

Automatic factory S-7200 smt pcb soldering control inspection equipment bga x-ray machine

∑ Main Description :

1. Closed Tube From HAMAMATSU Japan .
2. Imported Detector from Korea Rayence.
3. Micro-focus
4. Spot size down to 5µ
5. 5″ x 5″ or 4″ x 3″ high resolution and ultra resolution CMOS digital flat pane imagel detectors
6. 60° camera tilt for oblique angle viewing
7. 22″ x 18″ Inspection Stage with 350° Rotation
8. Color mapping camera with zoom window provides easy location and identification of faults
9. Z axis movement of the x-ray tube and detector
10. Computer controlled kV and mA settings
11. Computer controlled variable speed X-Y stage (and rotate)
12. Simple point and click, intuitive GUI provides access to create advanced inspection routines
13. All s/w tools standard including (but not limited to)
14. BGA Void detection and automatic calculations
15. Mobile Flex Cable FPC x-ray inspection
16. SMT Mounting and PCB X-ray inspection
17. Easy macro recording for intuitive step and repeat programming
18. Various measuring tools for TH, radius, area, perimeter, etc
19. Industrial PC with Windows 7 , 2 4 ″ LCD flat panel display

∑ SS7200 IC IGBT xray machine for welding soldering inspection Main Application:

BGA Solder Ball Bubble Caculation

IC Chips Inside Connector Wire Inspection

PCB FPC Mobile Flex Cable Soldering Inspection

Inspect the Voids under Joint

PCBA BGA/IC LED Aliminum die casting Battery connector inspecting
