The container pool will be made from galvanized steel structure +corrugated steel plate;
With flexible design and structure, modular container pool can be made any decorations inside and outside the unit, and it canbe
widely used as outdoor pool, hot spring pool, indoor pools etc;
Modular container can be moved from place to place and easily clean and maintain.
- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HYsun
-
Model Number:
-
HY-G
-
Size:
-
11800*2200*2400mm
-
The water volume(m³):
-
45m³
-
cycle time(h):
-
3h
-
circular flow(m³/h):
-
15.6m³/h
-
Sand cylinder filter speed(m³/h):
-
V650 15.6m3/h *1
-
filtering medium:
-
silica sand
-
filtration rate:
-
intermediate speed
-
Design filter speed (m³/h):
-
15.6m3/h
-
Design pressure of circulation line:
-
0.4Mpa
-
Vertical load bearing design:
-
1.7T/㎡
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Swimming pool
-
Product Type:
-
Container Houses
-
Design Style:
-
Modern
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
HYsun
-
Model Number:
-
HY-G
-
Size:
-
11800*2200*2400mm
-
The water volume(m³):
-
45m³
-
cycle time(h):
-
3h
-
circular flow(m³/h):
-
15.6m³/h
-
Sand cylinder filter speed(m³/h):
-
V650 15.6m3/h *1
-
filtering medium:
-
silica sand
-
filtration rate:
-
intermediate speed
-
Design filter speed (m³/h):
-
15.6m3/h
-
Design pressure of circulation line:
-
0.4Mpa
-
Vertical load bearing design:
-
1.7T/㎡
Product Description
Specification
|
ISO SHIPPING CONTAINER STRUCTURE
|
|
|
|
Size
|
11800*2200*2400mm
|
|
|
Floor beam
|
6mm steel
|
|
|
Corner
|
iron casting
|
|
|
Post
|
6mm steel, 4 pcs
|
|
|
Wall panel
|
2mm steel
|
|
|
Roof panel
|
2mm steel
|
|
|
Floor
|
hardwood
|
|
|
Decaration work
|
Add door, window, wall decoarion, electrical system, plumping system,etc
|
|
|
Swimming Pool
|
Steel Structure with swimming pool painting; Steel liner with paint
|
|
Fitting box
|
seperate control box, plastic box bottom and steel cover, with gas spring to open. size:1400*1250*1020mm
|
|
LED light for floor
|
24V LED light for swimming pool 4 side
|
|
Ultra-silent circulating pump
|
Made of all metal, high flow, high efficiency, low cost of use
|
|
|
Extra large slag basket to reduce the number of cleanings. Equipped with a transparent basket cover,no leakage, easy to use
|
|
Polymer filter
|
Adopting the latest high- speed sand cylinder technology in Europe
|
|
|
The unique design of the vacuum tube port for a longer life
|
|
|
Water treatment runs at the bottom of the sand tank for future maintenance work, 100% pass quality
|
|
Filter material Material: silica sand
|
grain diameter： 0.4-0.8mm(kg)-Fine filter
|
|
Circuit control system
|
Electrical distribution box,leakage protection , wire and other electrical control convenient, safe Time control, simple
operation, high efficiency, energy saving |
|
Water inlet and outlet Material: PVC
|
100%Made by ABS, uv protection High corrosion resistance
|
|
pipeline system
|
UPVC pipe,PPR pipe
|
|
External Pool Size
|
11.8*2.2*2.4m
|
|
Liner
|
Steel liner with paint
|
|
LED light under the top beam
|
4 side under the the top beam
|

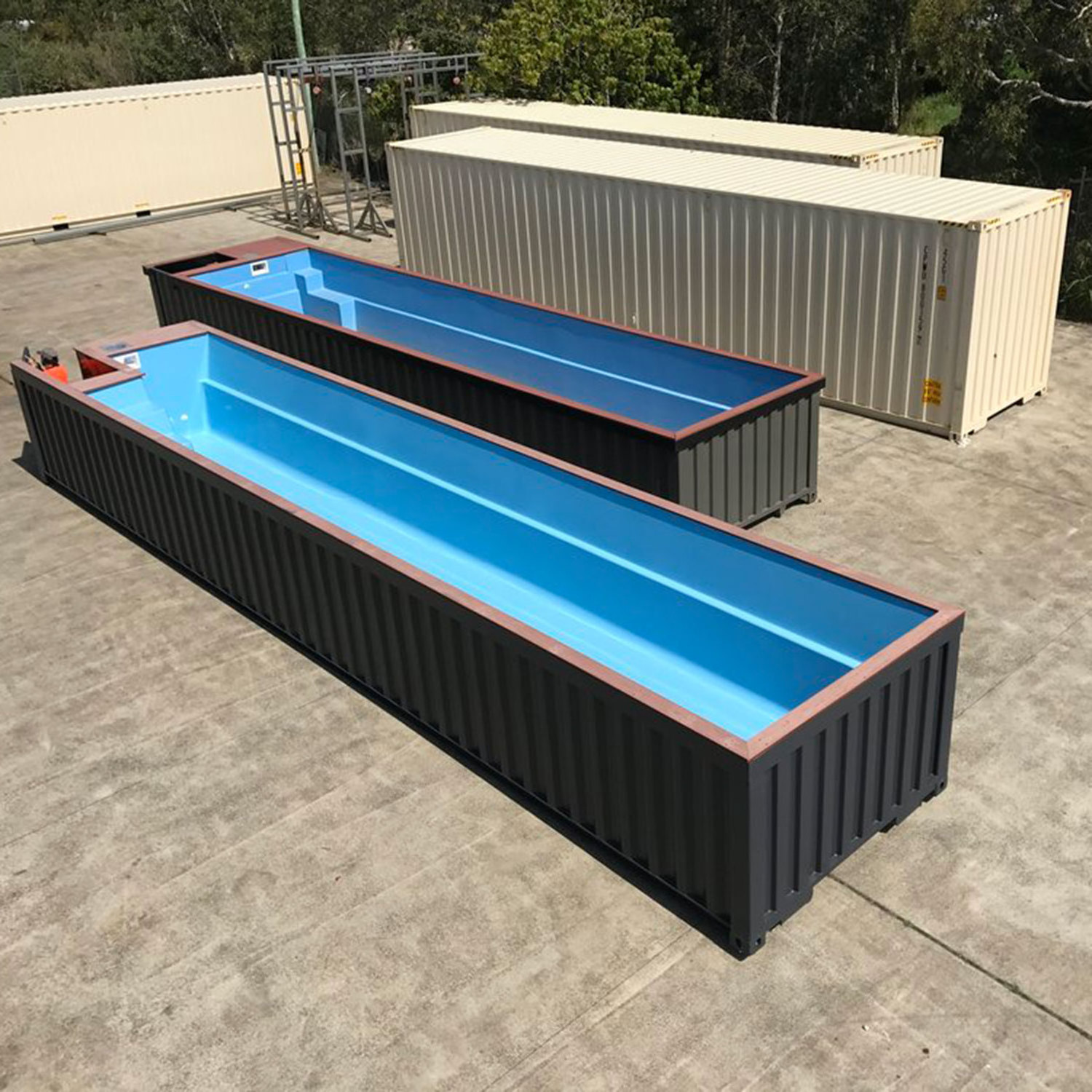

Product Display
Similar Products Made by Hysun
Our Advantages
1. Special design with all kinds of beatiful colors.
2. Beautiful waterfall.
3. Can be customized.
4. All made of high quality
5. Light polising surface treatment.
6. Competitive price, produced by ourself factory.
2. Beautiful waterfall.
3. Can be customized.
4. All made of high quality
5. Light polising surface treatment.
6. Competitive price, produced by ourself factory.
Hy sun Modified Container House
Hysun is
always insisted on using new customized containers to convert to your house. They are made of Corten A steel under SGS standard, important, they are ready to cut and welding from your design before painting also the same material and quality as the ISO maritime container.
They are different from the most way in the market to cut a new maritime container then paint(this way also would damage the original paint of maritime container and reduce the life span of the house).
For the materials, we are always insisted on high quality, too.
They are different from the most way in the market to cut a new maritime container then paint(this way also would damage the original paint of maritime container and reduce the life span of the house).
For the materials, we are always insisted on high quality, too.
Extension：What’s STEEL CORTEN-A
Corten A
is a representative steel type of the Cu-P series steel in the United States. They are low-alloy high-strength
atmospheric corrosion-resistant structural steels, and are called weathering steels, too.
Weather-resistant steel, that is, atmospheric corrosion-resistant steel, is a series of low-alloy steels between ordinary steel
and stainless steel. It is good properties in drawing, forming, welding, abrasion, high temperature, fatigue resistance, etc.
Weather resistance: 2-8 times that of carbon steel
Printability: 1.5-10 times that of carbon steel.
At the same time, it has the characteristics of rust resistance, corrosion resistance, and life extension, thinning and
consumption reduction, labor-saving, and energy saving.
Weathering steel is mainly used for steel structures such as railways, vehicles, bridges, and towers that have been exposed to the atmosphere for a long time.
It is used to manufacture structural parts such as containers, railway vehicles, petroleum derricks, seaport buildings, oil
platforms and containers containing hydrogen sulfide corrosive media.
atmospheric corrosion-resistant structural steels, and are called weathering steels, too.
Weather-resistant steel, that is, atmospheric corrosion-resistant steel, is a series of low-alloy steels between ordinary steel
and stainless steel. It is good properties in drawing, forming, welding, abrasion, high temperature, fatigue resistance, etc.
Weather resistance: 2-8 times that of carbon steel
Printability: 1.5-10 times that of carbon steel.
At the same time, it has the characteristics of rust resistance, corrosion resistance, and life extension, thinning and
consumption reduction, labor-saving, and energy saving.
Weathering steel is mainly used for steel structures such as railways, vehicles, bridges, and towers that have been exposed to the atmosphere for a long time.
It is used to manufacture structural parts such as containers, railway vehicles, petroleum derricks, seaport buildings, oil
platforms and containers containing hydrogen sulfide corrosive media.
Hysun Service
As a professional manufacturer in prefabricated house,
Hy
sun
provide the following services with professionalism and great sense of responsibility.
1. Customized drawings design
2. Competitive quotations
3. Professional suggestions for cost effective solution
4. Project installation instruction or supervision
We also guantee:
Product Quality
Hysun offer 1 year gurantee for Hysun high-end container house. All product should be checked quality from raw material, during production to before load. We make sure every parts arrive to your hand are perfect.
On-time Shipment
Hysun also guarantee on time delivery time under our experienced workers and modern machine under good management.
All steel part and materials shall be packed carefully under full protection.
