Quick Details
-
Brand Name:
-
yepo
-
Dimensions:
-
1000*1000*200mm
-
Use:
-
welding
-
Weight (KG):
-
300 KG
-
Product name:
-

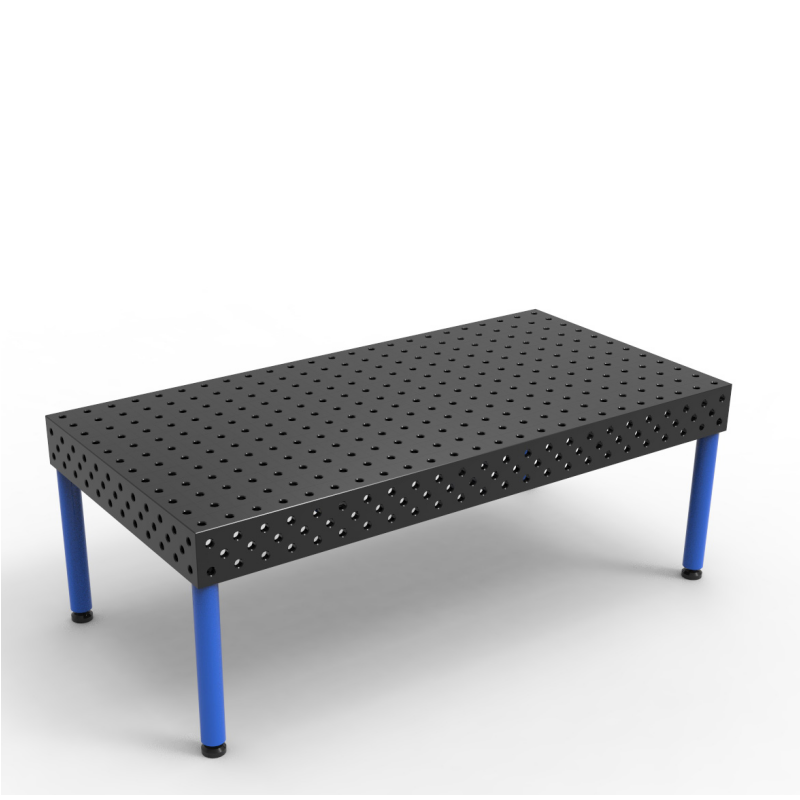

3D welding table
-
Certification:
-
ISO9001:2008
-
Material:
-
HT250/Q345
-
Application:
-
auxiliary welding
-
Process:
-
CNC Machining
-
Surface Treatment:
-
Tempering nitriding
-
roughness:
-
Ra1.6-Ra3.2
-
Pore size tolerance:
-
±0.05mm
-
Flatness:
-
0.05mm
Quick Details
-
Marketing Type:
-
New Product 2022
-
Core Components:
-
other
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
yepo
-
Dimensions:
-
1000*1000*200mm
-
Use:
-
welding
-
Weight (KG):
-
300 KG
-
Product name:
-
3D welding table
-
Certification:
-
ISO9001:2008
-
Material:
-
HT250/Q345
-
Application:
-
auxiliary welding
-
Process:
-
CNC Machining
-
Surface Treatment:
-
Tempering nitriding
-
roughness:
-
Ra1.6-Ra3.2
-
Pore size tolerance:
-
±0.05mm
-
Flatness:
-
0.05mm
D28 series parameters
|
D28 series parameters
|
|
|
|
aperture
|
φ28.065--φ28.149mm
|
|
|
Hole spacing
|
L1=100±0.05mm
|
|
|
Flatness
|
0.1/1000mm
|
|
|
verticality
|
0.1/200mm
|
|
|
Surface roughness
|
RA3.2
|
|
|
Standard load bearing
|
2T
|
|
|
Frame bearing
|
5T
|
|
|
Nitriding hardness
|
HV450~HV630
|
|
|
Specifications
|
1000*1000~2000*4000mm
|
|
|
Part NO.
|
Specifcation（mm）
|
Weight（KG）
|
|
YP2810001
|
1000*1000*200
|
345
|
|
YP2810002
|
1200*1200*200
|
455
|
|
YP2810003
|
1500*1000*200
|
480
|
|
YP2810004
|
1500*1500*200
|
725
|
|
YP2810005
|
2000*1000*200
|
655
|
|
YP2810006
|
2400*1200*200
|
870
|
|
YP2810007
|
3000*1500*200
|
1365
|
|
YP2810008
|
4000*2000*-200
|
2375
|
D16 series parameters
|
D16 series parameters
|
|
|
|
aperture
|
φ16.065--φ16.149mm
|
|
|
Hole spacing
|
L1=50±0.05mm
|
|
|
Flatness
|
0.1/1000mm
|
|
|
verticality
|
0.1/200mm
|
|
|
Surface roughness
|
RA1.6
|
|
|
Standard load bearing
|
2T
|
|
|
Frame bearing
|
5T
|
|
|
Nitriding hardness
|
HV450~HV630
|
|
|
Specifications
|
1000*500~2400*1200mm
|
|
|
Part NO.
|
Specifcation（mm）
|
Weight（KG）
|
|
YP1610001
|
1000*500*100
|
82
|
|
YP1610001
|
1000*1000*100
|
156
|
|
YP1610001
|
1200*800*100
|
142
|
|
YP1610001
|
1200*1200*100
|
210
|
|
YP1610001
|
1500*1000*100
|
232
|
|
YP1610001
|
1500*1500*100
|
345
|
|
YP1610001
|
2000*1000*100
|
297
|
|
YP1610001
|
2400*1200*100
|
453
|
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: No, We don't provide samples.
Q4: How about the quality?
A4: We have the best professional engineer and strict QA and QC system.
Q5: Can we be your distributor?
A5: We are looking for distributor and agent all over the world.
Q6: How’s the package?
A6: Normally are wooden case, but also we can pack it according to your requirements.
Q7: How’s the delivery time?
A7: It depends on the quantity you need, 20days usually.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: Do you provide free samples ?
A3: No, We don't provide samples.
Q4: How about the quality?
A4: We have the best professional engineer and strict QA and QC system.
Q5: Can we be your distributor?
A5: We are looking for distributor and agent all over the world.
Q6: How’s the package?
A6: Normally are wooden case, but also we can pack it according to your requirements.
Q7: How’s the delivery time?
A7: It depends on the quantity you need, 20days usually.
