Quick Details
-
Weight:
-
4KG
-
Nominal Voltage:
-
3.2v
-
Product name:
-
LFP150 Lifepo4
-
Capacity:
-
3.2v 50ah prismatic lifepo4 battery
-
Dimension:
-
173x145x54mm
-
Internal Resistance:
-
≤0.5mΩ
-
Cycle life:
-
≥3500 times
-
Warranty:
-
3 YEARS
-
Net Weight:
-
3.3KG
-
Charge and discharge energy efficiency:
-
≥95%
-
Advantage:
-
Grade A
Quick Details
-
Model Number:
-
Gotion LFP150
-
Brand Name:
-
Guoxuan
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
4KG
-
Nominal Voltage:
-
3.2v
-
Product name:
-
LFP150 Lifepo4
-
Capacity:
-
3.2v 50ah prismatic lifepo4 battery
-
Dimension:
-
173x145x54mm
-
Internal Resistance:
-
≤0.5mΩ
-
Cycle life:
-
≥3500 times
-
Warranty:
-
3 YEARS
-
Net Weight:
-
3.3KG
-
Charge and discharge energy efficiency:
-
≥95%
-
Advantage:
-
Grade A
Specification
|

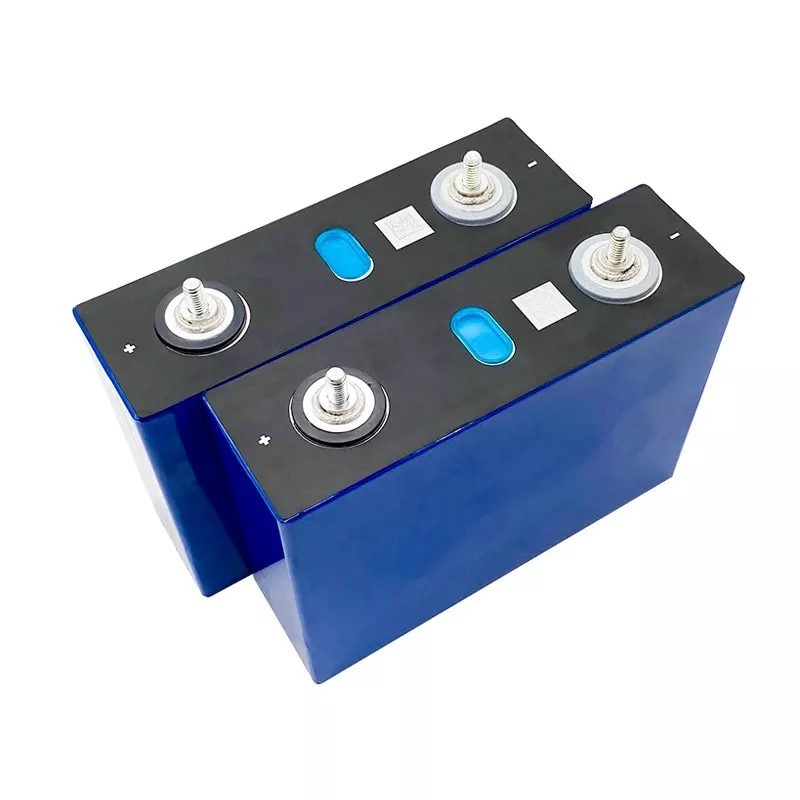

Prismatic LiFePO4 Battery Cell
|
|
|
|
|
||||
|
Nominal voltage
|
3.2V
|
Max.charge
|
150A(1C)
|
|
||||
|
Nominal capacity
|
150Ah
|
Charge cut-off voltage
|
3.65V
|
|
||||
|
Energy
|
480wh
|
Max.cont.discharge
|
150A(1C)
|
|
||||
|
Weight
|
2.8kg
|
Pulse current
|
450A(3C)
|
|
||||
|
Internal resistance
|
≤0.5mΩ
|
Discharge cut-off voltage
|
2.5V
|
|
||||
|
Model
|
Gotion 150Ah
|
Operation temp.
|
-30~60℃
|
|
||||
|
Dimension
|
173x145x54mm
|
Cycle life
|
3500 times
|
|
||||
Product Description
Highlights
Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:
* Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
* Long service life：10 times lifespan extended to 3500-6000 cycles.
* 1/4 lighter than lead-acid batteries.
* The LFP battery can work in a wide temperature range from -20 to +75°C
* No memory effect. Can be charged on demand without loss of capacity.
* Suitable for RV, ship, home storage, telecommunication (base station battery)
* High energy density up to 1C-280A discharge
Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:
* Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
* Long service life：10 times lifespan extended to 3500-6000 cycles.
* 1/4 lighter than lead-acid batteries.
* The LFP battery can work in a wide temperature range from -20 to +75°C
* No memory effect. Can be charged on demand without loss of capacity.
* Suitable for RV, ship, home storage, telecommunication (base station battery)
* High energy density up to 1C-280A discharge
Please note:
Each Gotion 150Ah cell is welded with M6 Studs on both electrodes. matched with 1 pcs 2mm thickness pure cooper
busbars + 2 M6 bolts.
Balancing testing will also be made to make all cells reach Excellent consistence in voltage,internal resistance and capacity.
The voltage difference <0.01v.
The internal resistance difference <0.1mΩ.
busbars + 2 M6 bolts.
Balancing testing will also be made to make all cells reach Excellent consistence in voltage,internal resistance and capacity.
The voltage difference <0.01v.
The internal resistance difference <0.1mΩ.
Why Choose Us
Specification
1. About the battery:
(1)All our cells are original, Grade A, 100% brand new, guaranteed sufficient capacity.(2) The original terminals of these
batteries are laser welding points. For easier assembly, we has welded studs with length of 10-15mm for them.If you have special
requirements about that, please advise.
(3) Various certification of the battery can be provided,such as CE, MSDS, UN, UL and so on.
(4) We will give you bus bars and nuts for free. (Busbar material-copper, 1 busbar+2 nuts for each unit)
2. About freight:
1. About the battery:
(1)All our cells are original, Grade A, 100% brand new, guaranteed sufficient capacity.(2) The original terminals of these
batteries are laser welding points. For easier assembly, we has welded studs with length of 10-15mm for them.If you have special
requirements about that, please advise.
(3) Various certification of the battery can be provided,such as CE, MSDS, UN, UL and so on.
(4) We will give you bus bars and nuts for free. (Busbar material-copper, 1 busbar+2 nuts for each unit)
2. About freight:
Please ignore the default shipping price on the website. We will calculate the specific shipping price based on
different countries, different zip codes, different order weights, and different shipping methods.
3. About ordering:
(1) Please send us an inquiry through any product link in our store.
(2) After we discuss and confirm all details (including product price, shipping price, total price), we will draft this order.
(3) You could click on the order link we drafted and follow the system
prompts to pay after verifying that all the information in the order is correct.
(4) After we receive your payment, we will send you updates,such as test pictures and videos, tracking information. You just need to wait for the arrival of the order.
4.OEM SERVICE
We can custom batteries and provide OEM branding designs for you need.
All Cell Must Authentic A Grade Battery, New Brand Battery With Factory QR Code On It. Support Fully Refund If Used Cell, BQuality Cell Or Swelled Cell Received From Us! We Will Test All The Battery Voltage ,Internal Resistance And Capacity Before Delivery
different countries, different zip codes, different order weights, and different shipping methods.
3. About ordering:
(1) Please send us an inquiry through any product link in our store.
(2) After we discuss and confirm all details (including product price, shipping price, total price), we will draft this order.
(3) You could click on the order link we drafted and follow the system
prompts to pay after verifying that all the information in the order is correct.
(4) After we receive your payment, we will send you updates,such as test pictures and videos, tracking information. You just need to wait for the arrival of the order.
4.OEM SERVICE
We can custom batteries and provide OEM branding designs for you need.
All Cell Must Authentic A Grade Battery, New Brand Battery With Factory QR Code On It. Support Fully Refund If Used Cell, BQuality Cell Or Swelled Cell Received From Us! We Will Test All The Battery Voltage ,Internal Resistance And Capacity Before Delivery
Certifications
Packing & Delivery
SHIPPING
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free) Unavailable: Military and PO box address,Puerto
Rico,Virgin Islands,Guam Addtional freight is needed and customs duties is not included for Hawaii.
Rico,Virgin Islands,Guam Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia, Singapore, Malaysia, Philippines, Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
