Quick Details
-
Dimension(L*W*H):
-
850*700*750mm
-
Weight (KG):
-
168
-
About worktable diameter:
-
300mm
-
About worktable traveling schedule:
-
150mm
-
Worktable area:
-
130*520mm
-
Grinding wheel size:
-
150*16*32mm
-
Speed:
-
2800rpm
-
Motor:
-
3/4HP 220V/380V
-
Dimension/weight:
-
65*650*70Cm/165kg
-
Max. Grinding Length:
-
260mm
-
Max. Grinding Diameter:
-
250mm
-
Power:
-
750W
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MEIRI
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
850*700*750mm
-
Weight (KG):
-
168
-
About worktable diameter:
-
300mm
-
About worktable traveling schedule:
-
150mm
-
Worktable area:
-
130*520mm
-
Grinding wheel size:
-
150*16*32mm
-
Speed:
-
2800rpm
-
Motor:
-
3/4HP 220V/380V
-
Dimension/weight:
-
65*650*70Cm/165kg
-
Max. Grinding Length:
-
260mm
-
Max. Grinding Diameter:
-
250mm
-
Power:
-
750W

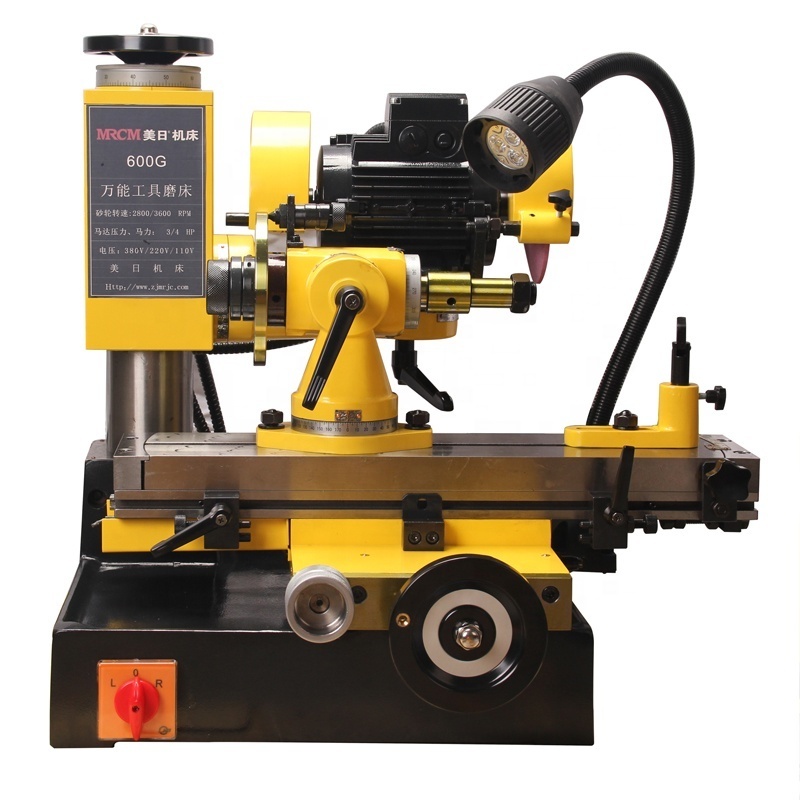

MRCM MR- 600G High-precision universal tool grinder for different tools
Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square shape and diamond cutting tool, gear cutting tool and so on.
The working table uses dovetail guide rail or high precision straight line roiling guide rails,good back and forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular paper
Specification
| Model | MR-600G (universal tool grinder/grinding machine) |
| Max. Grinding diameter | 250mm |
| About worktable diameter | 300mm |
| About workable traveling schedule | 150mm |
| Elevating Distance of Wheel head | 150mm |
| Rotating Angle of Wheel head | 360° |
| Grinding head speed | 2800RPM |
| Horse Power and Voltage of Motor | 3/4HP,380V |
| Power | 3/4HP |
| lateral feeding distance | 190mm |
| Workable area | 130×520mm |
| Elevating Distance of Wheel head | 160mm |
| Height of the head holder | 135mm |
| Taper hole of the main spindle of the head holder | mo-type 4# |
| Grinding wheel | 150×16×32mm |
| Dimension | 65*650*70cm |
| Net weight / gross weight: | 165kg/180kg |
| Optional Equipment |
50E grind spiral milling cutter ball end mill, R type lathe tool,graver and other taper milling cutter. |
|
50K can grind drill bit ,screw tap, side mill,round bar and so on. |
|
| 50D can grind end mill ,side mill and so on. | |
| 50B tablebox | |
| 50J thimble |
THE ACCESSORY:
|
||
| 50K Drill bit·screw tap grinder | 50D End-milling cutter grinder | 50E Spiral mill·ball cutter grinder |
|
||
| 50H tool accessories (standard) | 50J Thimble | 50B Toolbox |
Sharpen the tools
Details:
MR-600G
UNIVERSAL TOOL GRINDER
It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
it is with good precision,competive price,on skill request.
Focus on precision and detail
The working table uses Taiwan two high precision straight line roiling guide rails ,good back and forth movement, high stability, steady bed platform, dexterous operation.
