Quick Details
-
Brand Name:
-
Customzied
-
Model Number:
-
HC702U-10
-
Product Name:
-

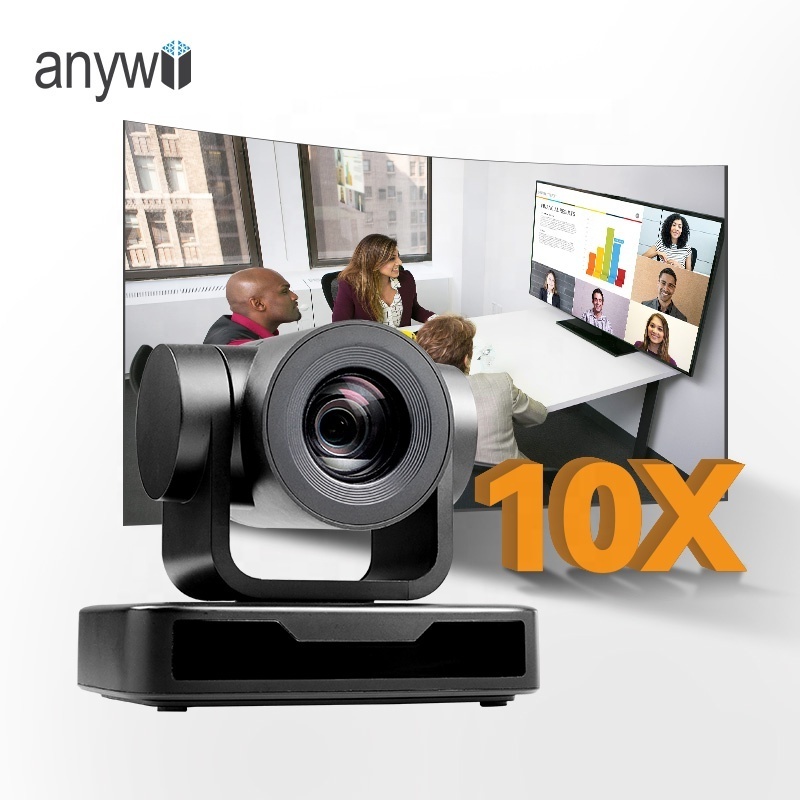

ptz conference camera 10x optical zoom
-
Used for:
-
HD Group Video Conferencing meeting room solution
-
Frame rate:
-
30fps
-
Optical Zoom:
-
10X
-
PTZ:
-
pan:±170°; tilt:-30°~+90°
-
Resolution HD:
-
FULL HD 1080P
-
Interface:
-
USB
-
Support:
-
Windows 2000/XP/7/8/10/Vista/linux/mac os/android tv box(UVC))or more
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Audio Conference System, Network Conference System, Video Conference System
-
Function:
-
10x ptz camera
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Customzied
-
Model Number:
-
HC702U-10
-
Product Name:
-
ptz conference camera 10x optical zoom
-
Used for:
-
HD Group Video Conferencing meeting room solution
-
Frame rate:
-
30fps
-
Optical Zoom:
-
10X
-
PTZ:
-
pan:±170°; tilt:-30°~+90°
-
Resolution HD:
-
FULL HD 1080P
-
Interface:
-
USB
-
Support:
-
Windows 2000/XP/7/8/10/Vista/linux/mac os/android tv box(UVC))or more
-
Warranty:
-
1 Year
Products Description
|
Sensor Type
|
HD color SONY 1/2.8 inch COMS
|
|
focal length
|
10x optical zoom, f=4.34mm～41.66mm
|
|
Focusing method
|
Auto focus
|
|
FOV-H
|
8.8°~68.8°
|
|
Resolution
|
1920*1080
|
|
Frame rate
|
30FPS
|
|
Noise Reduction
|
2D & 3D digital noise reduction, ≥55dB
|
|
video encoding format
|
YUY2, MJPEG, H.264, H.265
|
|
Horizontal rotation
|
±170°
|
|
Vertical rotation
|
-30° ~ +90°
|
|
inversion installation
|
Support
|
|
USB interface
|
USB 2.0
|
|
USB protocol
|
UVC
|
|
Control interface
|
RS232 IN/OUT, RS422 IN
|
|
Control protocol
|
VISCA/Pelco-D/Pelco-P
|
|
Main Feature
|
|
|
||
|
10X optical zoom
|
AutoFocus lens
|
Low light and backlight compensation
|
||
|
Full HD 1080P
|
Horizontal rotation 340°, Vertica 120°
|
Plug and play usb
|
||
|
Remote Control
|
Desktop,tripod,wall,ceiling mount
|
RS232, RS422/485
VISCA/Pelco-D/Pelco-P protocol
|
||
■ 1/2.8-inch HD colors CMOS sensor
■ Full HD 1080p 30fps autofocus lens
■ 10X Lossless optical zoom
■ Backlight and dark light compensation
■ wide rotation angle, Pan ±170°, tilt -30°~+90°
■ Track speakers by remote controller, support PTZ adjustment
■ 10 presets via infrared remote control, 200 presets via RS232/422
■ Plug and Play usb, easy and fast to setup
■ Various Installtaion method, desktop,tripod,wall or ceiling mount
■ Backlight and dark light compensation
■ wide rotation angle, Pan ±170°, tilt -30°~+90°
■ Track speakers by remote controller, support PTZ adjustment
■ 10 presets via infrared remote control, 200 presets via RS232/422
■ Plug and Play usb, easy and fast to setup
■ Various Installtaion method, desktop,tripod,wall or ceiling mount
I
f you need sdi ndi hdm i ptz camera, conference speaker or more, pls contact us to get product catalog for more informations!
Why Choose US
Anywii Factory
1. We are Anywii China's factory with 15+ years of history, mature technology and excellent quality. The factory is located in Guangdong, China, covering an area of more than 5,000 square meters, with nearly 200 skilled workers and 6 SMT lines, 6 production lines, 2 packaging lines and module production workshops, with a production capacity of 6,000 PCS/day.
2. More than 15 years of experience in webcams/camera/speakerphone/PTZ Joystick production.
3.Our products are exported to all over the world, and our customers are from Europe, North America, South America, Middle East, Southeast Asia, Central Asia and Africa.
4. The products have passed CB, CE, FCC, ROHS, SASO, CCC and other certifications.
5. Fast delivery time: 3~5 working days of 1~100pcs，15-30 days of mass order confirmed after deposit.
Payment & Delivery
FAQ
Does the factory have any management system certification?
How long about the lead time and Shipping time?
Our factory has passed the ISO9001 international management system certification
Can we place order by OEM/ODM?
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
I can get product catalogs and certificates?
Of course, just contact us
About the sample: How could I get the sample?
Pls click 'contact supplier' to contact us. Once received your sample payment. We will send it by express. Delivery time is about 5 to 7 days
How to order in alibaba?
Tell me the product and quantity you want to buy, and your delivery address, phone number, zip code. I will draft an Alibaba payment link to you by email, you just need to click the link to pay.
Which payment term can be accepted?
We accept TT/ Visa/Paypal/Westem Union/Alipay/Wechat.
About shipment: what type of shipment will you use?
Usually by express. If the order quantity is large,we may ship by logistic forwarder.
How long about the lead time and Shipping time?
The general delivery time is about 4-7 days.Shipping time depends on the shipping way you choose.
How long is the warranty?
You can choose 0.3% of order quantity as free spares to replace the warranty or send faulty back by yourselves within 1 year
