Quick Details
-
Model Number:
-
1230-2402
-
Model Number::
-
1230-2402
-
Current:
-
200a
-
Voltage:
-
24v
-
Weight:
-
1.3
-
HK NO.:
-
A.C.02.3003
-
OEM:
-
YES
-
COLOR:
-
-
Product name:
-
Controller Assy
-
Condition:
-
new
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1YEAR
-
Place of Origin:
-
Bulgaria
-
Brand Name:
-
Curtis
-
Model Number:
-
1230-2402
-
Model Number::
-
1230-2402
-
Current:
-
200a
-
Voltage:
-
24v
-
Weight:
-
1.3
-
HK NO.:
-
A.C.02.3003
-
OEM:
-
YES
-
COLOR:
-
-
Product name:
-
Controller Assy
-
Condition:
-
new
-
Certification:
-
CE
Product information
|

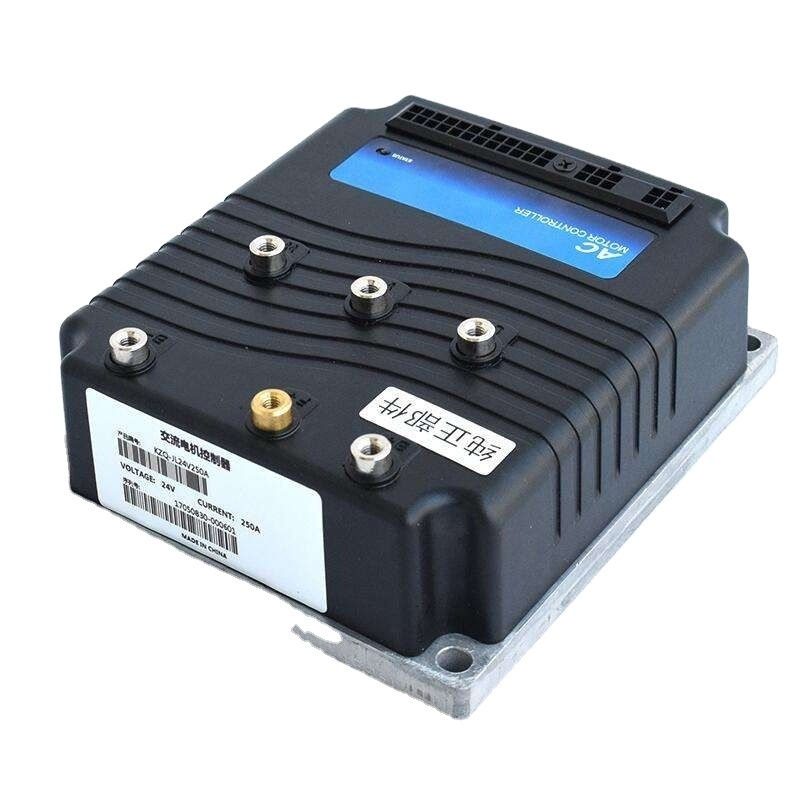

Product Name
|
Controller Assy
|
|
Model
|
1230-2402
|
|
HK NO.
|
A.C.02.3003
|
|
Condition
|
NEW
|
SPECIFICATIONS:
Operating voltage range: 16 to 32 V
Nominal input voltage: 24 V
PWM operating frequency: 16 kHz
Electrical isolation to heatsink: 500 V ac (minimum)
KSI input current (no contactors engaged): 90 mA without programmer or speed encoder; 170 mA with programmer and SKF speed encoder
Logic input voltage: >7.5 V High; <1 V Low
Logic input current: 10 mA (nominal)
Nominal output line-to-line voltage (rms): 15 V
Max. output frequency: >200 Hz
Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
MOSFET overtemperature cutback: linear cutback starts at 100°C (212°F); complete cutoff at 110°C (230°F)
MOSFET undertemperature cutback: approx. 50% motor current at -25°C (-13°F); complete cutoff at -40°C (-40°F)
Package environmental rating: IP5
Operating voltage range: 16 to 32 V
Nominal input voltage: 24 V
PWM operating frequency: 16 kHz
Electrical isolation to heatsink: 500 V ac (minimum)
KSI input current (no contactors engaged): 90 mA without programmer or speed encoder; 170 mA with programmer and SKF speed encoder
Logic input voltage: >7.5 V High; <1 V Low
Logic input current: 10 mA (nominal)
Nominal output line-to-line voltage (rms): 15 V
Max. output frequency: >200 Hz
Operating ambient temp. range: -40°C to 50°C (-40°F to 122°F)
Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
MOSFET overtemperature cutback: linear cutback starts at 100°C (212°F); complete cutoff at 110°C (230°F)
MOSFET undertemperature cutback: approx. 50% motor current at -25°C (-13°F); complete cutoff at -40°C (-40°F)
Package environmental rating: IP5
