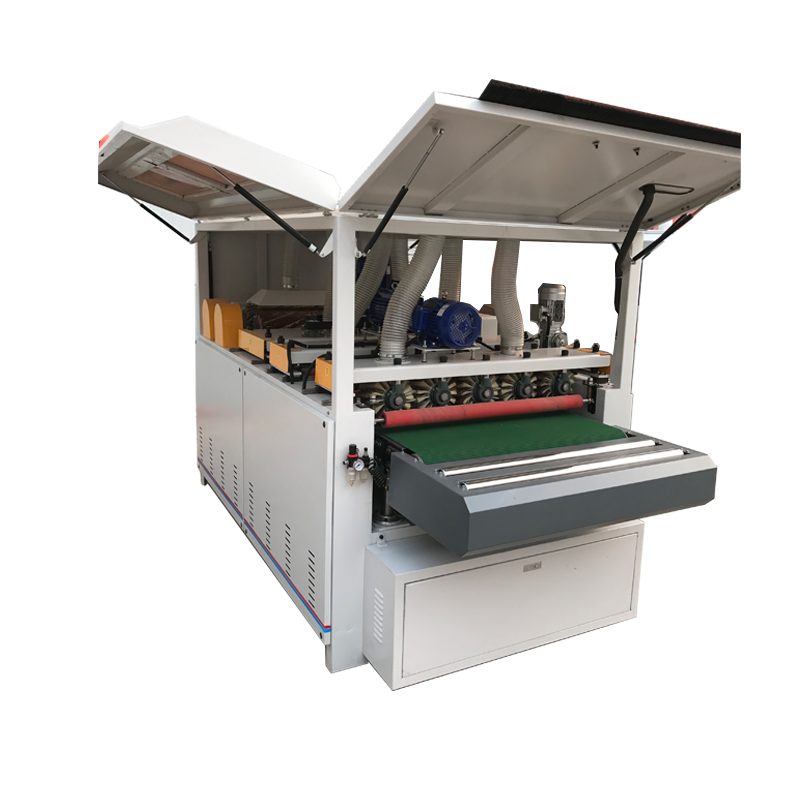

Particle Board Sanding Machine/Wood Solid Wood Brush Sanding Polish Machine For Mdf Kitchen Cabinet
Application of wood sanding machine :
It is mainly aimed at the embryo polishing of wood products. It is suitable for all kinds of solid wood, composite board and density board and etc.
This machine is one o f the necessary equipment for thickness adjustment, fine sanding, and polishing of fiberboard, shaving board, plywood board, man-made board and panel-type material. It is with high precision,easy and safe operation .
Main Features of wood sanding machine
1.
The machine suits for sanding of kitchen Cabinet, Window, Door, Furniture...etc.
2.The modular structure can be combined optional to satisfy clients' demands.
3. Frequency conversion speed control is used in each group
4.Each unit can be drawn out for sand sand shelf, or replace emery cloth sanding can parts more portable, easy operation and maintenance.
5 .The roller discs are arranged in a staggered reciprocating manner, and the manual speed is adjusted to improve the quality of the rollers.
6 .Rotatable panel design. It is more convenient to operate, saves labor and time, and is more efficient.
7 . Pure copper core motor, power is sufficient, and the conveying speed can be adjusted freely.
8 . The machine can be customized according to different brush materials, and the disc brush can be freely matched.
9 . The oil-water separator prevents water from entering the cylinder and effectively filters the water vapor in the air.
9. Imported DuPont rollers, sandpaper are all available, a variety of options.
Specification of wood sanding machine
|
Main parameter of wood sanding machine |
|
wood sanding machine Maximum processing width: 1000mm Polishing thickness: 10-150mm Processing sheet length: ≥ 350mm Polishing roller speed: variable speed FM Conveyor speed: 5-20m/min Polishing roller diameter: 300mm Total motor capacity: 7.39kw Straight roller motor: 2.2kw * 2 Conveying motor: 0.75kw Lifting motor: 0.37kw-RV40 Disc motor: 1.5w six-stage disc swing motor: 0.37kw Delivery size: 2400 * 1750 * 1890mm Net machine weight: 1.11 tons Use size: 2950 * 1750 * 2160mm Separate wooden box Weight: 150kg Wooden box size: 2480 * 1820 * 2150mm |
